Deep Cycle Gel Battery for Sweeper 6V225ah T105/Dcg225-6

Product detail

Model NO.:

DCG225-6

Type:

Lead-Acid Batteries

Usage:

Car, UPS, Electric Power, Lighting, Boat, Golf Cart, Sightseeing Vehicle, Solar Power

Nominal Voltage:

Discharge Rate:

Low Discharge Rate

Shape:

Square Battery

Electrolyte:

Installation:

Fixed

Rechargeable:

Chargeable

Color:

Size:

L243*W187*H275*Th275mm

Capacity:

225ah

Voltage:

Weight:

32kgs

Trademark:

Koyama

Transport Package:

Carton, Then Pallet

Specification:

JIS, DIN, IEC, BCI

Origin:

Guangdong, China

HS Code:

85072000

Product Description

KOYAMA® Deep Cycle GEL AGM Sealed Battery for heavy-duty cycling capabilities or for backup power.
DCG(Deep-Cycle Gel) batteries are maintenance free and require no watering, While providing you with the unmatched quality and power of Koyama's advanced deep cycle gel technology .Koyama offers a complete portfolio of Deep-Cycle Gel(DCG) battery, featuring these benefits: Long-lasting runtime and battery life in the most demanding of applications; Proprietary Gel formulation prevents stratification; Superior engineering offers exceptional durability.

DEEP CYCLE GEL BATTERY

DCG225-6 Deep Cycle Battery

Model NO.: DCG225-6
Voltage& Capacity: 6V225AH
Dimension: L243*W187*H275*TH275
Terminal: T5
Weight: 32.2kgs
Warranty: 2 years
Color: Grey/Orange/Black/Red or Blue as per customer's option
Certification: UL,CE,SGS,ISO9001 and so on,Check the bottom of the details

MAIN FEATURES:

• The success of DCG batteries comes from the internationally superior Gel technology

• Excellent energy storage capacity combined with high reliability

• Designed in accordance with IEC 60254-1

• 700 Cycles at 75%DOD

• 7 years design life at 20 °C ambient temperature (80% remaining capacity from C20)

• Grid plate construction consisting of a lead calcium alloy

• Very low gassing due to the internal gas recombination

• High cycle service life

• Better temperature resistance performance

• Excellent deep cycle performance

• Superior low current discharge performance

• Better charge acceptability

• Better safety performance and reliability

• High Performance price/ratio and low yearly operating cost

• Non-Spillable construction design

• Safety valve installation for explosion proof

• Low self discharge characteristic

• ABS containers and covers (UL94HB, UL94V-0 optional)

• Gel-batteries are designed to be operated within a wide temperature range -40° C and +55° C

• Maintenance-free (no topping up) motive power batteries in gel technology

• Completely recyclable

• other power drive equipment, etc

APPLICATION:

• Aerial Work Platform (AWP)/Access

• Material Handling

• Floor Machine

• Recreational Vehicle (RV)

• Industrial

• Electric Boats

• Golf/Utility/Neighborhood Electric Vehicle (NEV)

• Wheelchairs

• Remote Monitoring & Instrumentation

• Renewable Energy (Solar, Small Wind and Small Hydro)

Deep Cycle Gel Model No. List

Model No	Industry No	Rated Voltage(V)	Capacity (Ah)	Dimension				Weight	Terminal
				Length	Width	Height	Total Height	kg
				mm	mm	mm	mm	kg
6V DEEP CYCLE GEL BATTERY
DCG200-6	27	6	200	306	168	220	226	30.1	T5-M8
DCG210-6	GC2/T605	6	210	260	180	246	252	29.6	T5-M8
DCG210-6DT	GC2/T605	6	210	260	180	246	266	29.9	DT-M8
DCG220-6	27	6	220	306	168	220	226	31.6	T5-M8
DCG225-6	DIN/TE35	6	225	243	187	275	275	30.6	T5-M8
DCG225-6AP	DIN/TE35	6	225	243	187	275	275	30.6	AP
DCG226-6	GC2/T105	6	226	260	180	247	252	30.2	T5-M8
DCG226-6AP	GC2/T105	6	226	260	180	247	268	30.2	AP
DCG226-6DT	GC2/T105	6	226	260	180	247	266	30.2	DT-M8
DCG250-6	T145	6	250	260	180	265	272	34.7	T5-M8
DCG250-6DT	T145	6	250	260	180	265	285	34.7	DT-M8
DCG310-6	902/J305	6	310	295	178	346	350	46.2	T5-M8
DCG310-6DT	902/J305	6	310	295	178	346	365	46.5	DT-M8
DCG330-6	902/J305	6	330	295	178	346	350	46.8	T5-M8
DCG330-6DT	902/J305	6	330	295	178	346	365	47.1	DT-M8
DCG380-6	L16P	6	380	295	178	404	408	55.4	T5-M8
DCG380-6DT	L16P	6	380	295	178	404	424	55.7	DT-M8
DCG420-6	L16H	6	420	295	178	404	408	57	T5-M8
DCG420-6DT	L16H	6	420	295	178	404	424	57.3	DT-M8
8V DEEP CYCLE GEL BATTERY
DCG170-8	T875/890	8	170	260	182	266	271	34.8	T5-M8
DCG170-8DT	T875/890	8	170	260	182	266	281	35.1	DT-M8
DCG200-8	GC8H	8	200	260	182	295	300	38.8	T5-M8
DCG200-8DT	GC8H	8	200	260	182	295	315	39.1	DT-M8
12V DEEP CYCLE GEL BATTERY
DCG24-12	N/A	12	24	166	175	126	126	8.4	T2-M5
DCG26-12	N/A	12	26	165	126	174	174	8.1	T2-M6
DCG28-12	N/A	12	28	165	126	174	174	8.5	T2-M6
DCG35-12	U1	12	35	196	130	155	167	10.6	T2-M6
DCG40-12	U1L	12	40	198	166	174	174	14.1	T2-M6
DCG48-12	U1L	12	48	198	166	174	174	14.6	T2-M6
DCG55-12	22NF	12	55	229	138	208	212	16.1	T3-M6
DCG58-12	22NF	12	58	229	138	208	212	17.6	T3-M6
DCG70-12	93	12	70	350	167	178	178	23.4	T3-M6
DCG75-12	24	12	75	260	169	211	215	25.1	T3-M6/M8
DCG75-12DT	24	12	75	260	169	211	231	25.2	DT-M8
DCG85-12	24	12	85	260	169	211	215	26.2	T3-M6/M8
DCG85-12DT	24	12	85	260	169	211	231	26.3	DT-M8
DCG90-12	27	12	90	307	169	211	216	28.3	T3-M6
DCG90-12DT	27	12	90	307	169	211	231	28.4	DT-M8
DCG100-12	27	12	100	307	169	211	216	29.7	T3-M6/M8
DCG100-12AP	27	12	100	307	169	211	230	30.3	AP
DCG100-12DT	27	12	100	307	169	211	231	30.4	DT-M8
DCG110-12	31	12	110	331	174	214	219	33	T4-M8
DCG110-12AP	31	12	110	331	174	214	235	33	AP
DCG110-12B	31	12	110	328	172	215	222	32.7	T4-M8
DCG110-12BAP	31	12	110	328	172	215	235	32.7	AP
DCG110-12DT	31	12	110	328	172	215	238	32.9	DT-M8
DCG120-12	N/A	12	120	407	173	210	233	39.5	T5-M8
DCG135-12	J150	12	135	341	173	283	288	41	T5-M8/M6
DCG135-12AP	J150	12	135	341	173	283	302	41	AP
DCG135-12B	DIN	12	135	341	173	281	281	41	T4-M8/M6
DCG135-12BAP	DIN	12	135	341	173	281	284	41	AP
DCG150-12	N/A	12	150	484	171	241	241	45.7	T4-M8
DCG150-12B	T1275	12	150	338	182	264	271	44.4	T5-M8
DCG180-12	4D	12	180	532	206	215	219	56.2	T4-M8
DCG200-12	4D	12	200	532	206	215	219	58.6	T4-M8
DCG215-12DT	921	12	215	381	179	350	370	61.7	DT-M8
DCG215-12BDT	921	12	215	381	179	350	370	61.7	DT-M8
DCG220-12	4D	12	220	522	240	219	223	65.2	T5-M8
DCG240-12	8D	12	240	520	268	203	207	71.3	T5-M8
DCG260-12	8D	12	260	520	268	220	226	77.1	T5-M8

Replace By Lithium Type Golf Cart Battery -Click Picture to know more
Product Specification

Golf Cart Lithium Battery Parameters
Parameters	51.2V/105AH	51.2V/160AH	76.8V/105AH
Nominal Voltage (V)	51.2	51.2	76.8
Nominal Capacity (Ah)	105	160	105
POWER (KWh)	5376	8192	8064
Dimensions	Customized On Demand
Weight (Kg)	40	60	58
Operating Voltage (V)	44~58.4	44~58.4	66~87.6
Charging Voltage (V)	58.4	58.4	87.6
Recommended Charge Current (A)	≤55	≤80	≤55
Rated Operating Current (A)	≤105	≤160	≤105
Max Operating Current (A)	150	200	230
Charging Temperature (ºC)	0~55
Discharging Temperature (ºC)	-20~55
Storage Temperature (ºC)	0~45
Chemical System	Lithium-iron Phosphate
Warranty	Warranty For 5 Years Or 10,000 Hours Of Service
Available Models	Golf Cart/Sightseeing vehicle

Replace By VRLA Type Golf Cart Battery DC225-6DT/DC225-6-Click Picture to know more

Model No	Industry No	Rated Voltage (V)	Capacity (Ah)	Dimension				Weight	Terminal Type
				Length	Width	Height	Total Height	kg
				mm	mm	mm	mm	kg
6V DEEP-CYCLE BATTERY FOR Golf, Utility Vehicle And NEV
DC210-6.pdf	GC2/T105	6	210	260	180	247	252	29.6	T5/AP
DC225-6.pdf	DIN-TE35	6	225	243	187	275	275	30.6	T5
DC225-6AP.pdf	DIN-TE35AP	6	225	243	187	275	275	30.6	AP
DC226-6.pdf	GC2/T125	6	226	260	180	247	252	30.2	T5/AP
DC250-6.pdf	GC2/T145	6	226	260	187	265	272	34.7	T5/AP
8V DEEP-CYCLE BATTERY FOR Golf, Utility Vehicle And NEV
DC170-8.pdf	GC8-T875	8	170	260	182	266	271	34.2	T5
DC200-8.pdf	GC8H-T890	8	200	260	182	295	301	38.2	T5
12V DEEP-CYCLE BATTERY FOR Golf, Utility Vehicle And NEV
DC150-12B.pdf	T1275	12	150	328	182	267	272	44.4	T5/AP

Deep Cycle flooded Model No. List-Click Picture to know more

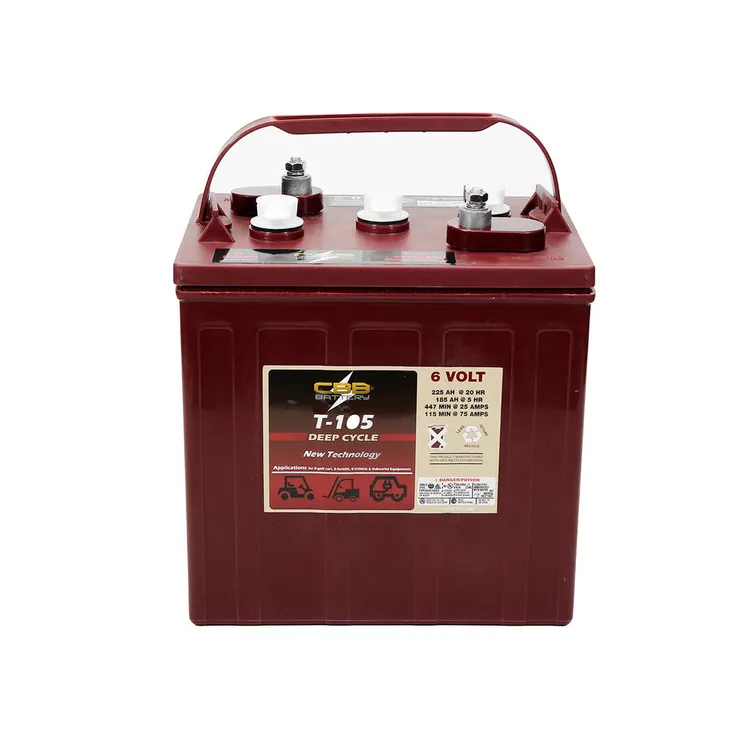

T105 6V225AH Deep Cycle Battery for UPS

Model NO.: T105
Standard: IEC 60095
Productivity: 1000000pcs / year
Trademark: CBB®
Origin: Guangdong, China
Standard: SAE standard
Sort: Dry charge and wet charge Golf Car batteries.
Size ( mm ): L*W*H*TH=262*181*283 MM
Voltage ( V ): 6
Plates: Tubular plates.
Rated Capacity: ( 5HR, 185AH ) / ( 20HR, 225AH )
RC & Reserve Capacity ( Min ): 447 minutes @ 25A, 115 minutes @ 75A.
CCA & Cranking Amps ( -18 0C, A ): 980
Approx Wt Dry. ( Kgs ): 19.50
Layout: 2(- | +)
Terminal Type: T ( Type WNT / UT / LT )
OEM: OK

6/8V VOLT DEEP-CYCLE FLOODED BATTERIES

Model No

BCI

Size

Capacity Minutes

Capacity Amp-hour(AH)

Voltage

Terminal

Dimensions

Weight

@25Amps

@75Amps

inches(mm)

Kgs

5 Hr

10Hr

20Hr

Volt

Type

DRY

T-605

GC2

383

105

175

193

210

1,2,3,4

10.30 (262)

7.13 (181)

11.15 (283)

17.5

T-105

GC2

447

115

185

207

225

10.30 (262)

7.13 (181)

11.15 (283)

19.5

T-125

GC2

488

132

195

221

240

1,2,3,4

10.30 (262)

7.13 (181)

11.15 (283)

21.0

T-145

GC2H

530

145

215

239

260

2,4

10.30 (262)

7.11 (181)

11.90 (302)

24.0

T-875

GC8

295

117

145

155

170

1,2,3

10.21 (259)

7.10 (180)

11.14 (283)

21.0

T-890

GC8H

340

132

155

175

190

1, 2

10.21 (259)

7.10 (180)

11.14 (283)

23.0

T-1275

GC12

280

120

134

150

12.96 (329)

7.10 (180)

11.81 (300)

32.0

ELECTRIC VEHICLES BATTERIES RELATED SERIES

CBB® KOYAMA® DZM Series Battery is specially designed for motive power applications, i.e. electric bikes/scooters, electric tricycles, electric motorcycles and other device require DC power source. The DZM Series adopts international leading technologies to ensure the batteries with features of long cycle life, large current discharge capability, high reliability and safety, and environmental-friendly.

12V E-bike/Scooter Battery
Item no	Model NO	Voltage(V)	Capacity(AH)	L(MM)	W(MM)	H(MM)	TH(MM)	Weight (KGS)
1	6-DZM-12/14	12	12	151	99	98	101	4.1
2	6-DZM-20	12	22.3	181	77	170	171	6.4
3	6-DZM-20	12	23.2	181	77	170	171	6.7
4	6-DZM-20	12	24	181	77	170	171	7
5	6-DZM-32	12	32	265	75	169	169	9.6
6	6-DZM-32	12	32	220	92	175	175	9.6
7	6-DZM-45/48	12	45	222	120	178	178	12.8
8	6-DZM-52	12	52	222	130	177	177	14.3
9	6-DZM-55	12	55	222	155	175	175	15.7

CBB® KOYAMA® EV series Battery is a high performance Deep Cycle Gel battery similar to the DZM but designed for of various types of Electric Vehicles requiring larger capacity batteries than the Koyama DZM series. The EV series consists of 6/12 Volt batteries ranging from 70 Ah up to 285 Ah. The EV series used in recreational vehicles, Golf Carts, Sightseeing vehicles, Cable vehicles, Electric tractors and various other larger Electric powered industrial vehicles

Model No	Rated Voltage(V)	Rated Capacity (Ah)	Dimension				Weight	Terminal
			Length	Width	Height	Total Height	kg
			mm	mm	mm	mm	kg
12V EVF ELECTRIC VEHICLE BATTERY
3-EVF-200	6	200/3HR	260	180	265	272	35	T5
4-EVF-150	8	150/3HR	260	180	280	285	36.5	T5
6-EVF-40	12	40/3HR	198	166	174	174	14.5	T3
6-EVF-70	12	70/3HR	260	168	213	218	24.5	T3
6-EVF-75	12	75/3HR	260	168	213	218	25.5	T3
6-EVF-80	12	80/3HR	260	168	213	218	26.5	T3
6-EVF-100	12	100/3HR	327	172	216	221	34.5	T5
6-EVF-100A	12	100/3HR	327	172	216	221	34.5	T5
6-EVF-100B	12	100/3HR	327	172	216	221	31.5	T5
6-EVF-120	12	120/3HR	406	173	212	217	42	T5
6-EVF-135	12	135/3HR	340	173	280	285	46	T5
6-EVF-150	12	150/3HR	484	171	241	241	51	T5
6-EVF-200	12	200/3HR	521	238	217	222	64	T5

CBB® KOYAMA® Tricycle Battery are Tubular deep cycle battery specially designed for for electric tricycles .It outranks the ordianary battery with great power and reliability. we offer you both dry charged type and wet charged type both .

12 Tubular Deep Cycle Tricycle Battery
MODEL	Rated Voltage	Rated Capacity(AH)		Dimension (mm)				Without acid(kg)	With acid(kg)
MODEL	(V)	5HR	20HR	Length	Width	Height	Total Height	Without acid(kg)	With acid(kg)
6-DG-140	12	70	98	365	175	255	275	20	30
6-DG-150	12	80	112	365	175	255	275	21	31
6-DG-160	12	90	126	365	175	255	275	23	33
6-DG-170	12	100	140	365	175	255	275	25	35
6-DG-180	12	105	147	365	175	275	285	26	36
6-DG-190	12	110	154	365	175	275	285	27	37.5
6-DG-200	12	120	168	365	175	275	285	29	38
Tubular Deep Cycle Battery for heavy Duty Equipments
EBN280-12	12	167	280	520	283	207	230	48	67
EBN260-12	12	175	260	520	283	207	230	46.5	65.5
EBN240-12	12	190	240	520	283	207	230	44	63

Welcome to contact and inquiry about lead acid battery & lithium battery (lifepo4 battery) and any auto parts!

-Golf/NEV/Utility Vehicles
-Aerial Work Platforms/Access
-Floor Machine
-Material Handing
-Marine/Recreational Vehicle
-Transportation
-Renewable Energy
-Car Starting
-Motorcycle Starting
-Forklift
-Solar/Wind power
-Electric Boat

Clik Below application picture to know related Battery Details!

Q1. What is your terms of packing?
1. Standard export carton ,then onto pallets, or neutral package
2. If any special requirements on package , it is negotiable
3. All batteries are inspected carefully by QC before shipment.

Q2. What is your terms of payment? 1. By T/T , 30% T/T in advance,70% before shipment
2. By L/C at sight
3. Western Union, Money gram or cash

We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your trade terms?
EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
1. our lead time is 15-30days on the basis of order quantity after getting 30% deposit
2. if you need samples or small quantity , we can ship battery within 3-7days if we have stock after test is finished.

Q5. How to reach to us?
A: Please contact Ms. Jancy by We Chat / Whats-App:as above detail, or send me Made in China inquiry .
WX:2621326552

Q6. What is your sample policy?
A: We can supply the sample if we have in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Company history & Product range

CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery; with a factory area of 65mu and production area more than 30000m2.Our production capacity has reached more than 3 million KVAH per year.

We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.

Send Message

Message Type
*Content
*Your Name
*Tel
*Email
* Captcha

5 star
4 star
3 star
2 star
1 star
