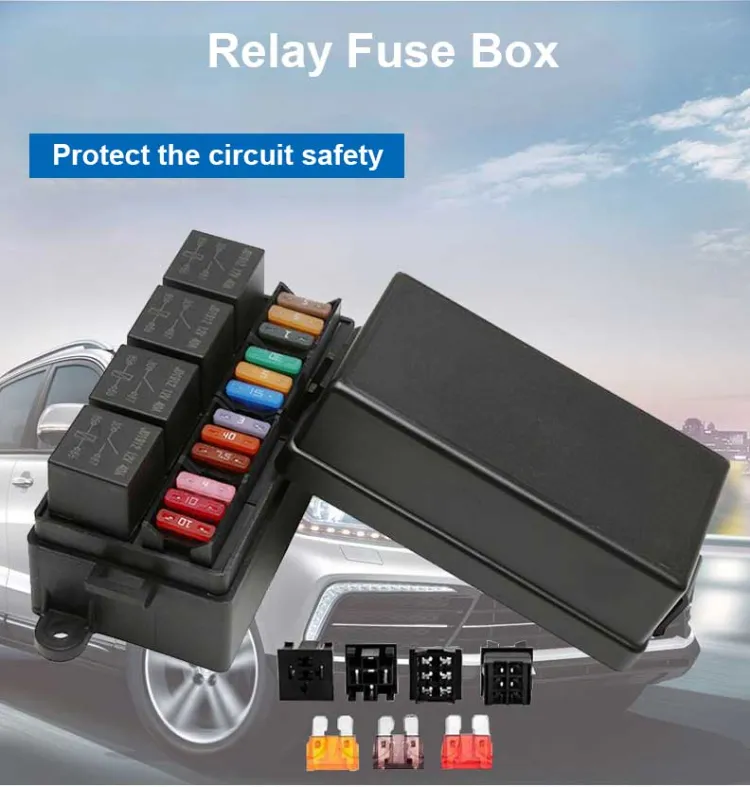

Auto Accessories Fuse Box and Relay Circuit
1.100% Brand new,Made of flame retardant material
2.Waterproof connector.Can be installed in circuit.
3.12-way fuse box 4-relay holder with spade terminals
4.Can be fixed through 2 pre moulded holes on side.
5.Suitable for all marine, motor-home, automotive& motorsport applications.
Rated Current | 40A |
Rated Voltage | 12V 24V 32V 48V |
Way/Slot | 12 |
Fuse Size | Standard Blade Fuse, ATC & ATO Fuse |
Fuse Type | Automotive Blade |
Product Shape | Insert Type |
Main Material | Nylon PA66, metal, tinned copper elements |
Base Material | Thermoplastic |
Color | Black |
Type | blade fuse blocks |
| Fit For | 12xstandard blade fuse, 4x relay |
Application | off-road vehicles, jeeps, SUVs, UTVs, ATVs, RVs, pickup trailers, campers, boats, etc |
 |
Features of 8 Way Car Auto Fuse Box With 2 Relay
Housing: The relay fuse box is usually a rectangular or square-shaped housing made of plastic or metal.
It is designed to provide protection and organization for the fuses and relays inside.
Cover: The box has a removable cover that can be lifted or opened to access the fuses and relays. The
cover often includes labels or diagrams indicating the purpose and location of each fuse and relay.
Fuses: Fuses are safety devices designed to protect electrical circuits from overloading or short circuits.
The fuse box contains multiple fuse slots where individual fuses can be inserted. Each fuse slot
corresponds to a specific electrical circuit or component and is rated to handle a specific amount of
electrical current. When a circuit experiences an overload or short circuit, the fuse will "blow" or break
the circuit, preventing damage to the system.
Relays: Relays are electromagnetic switches that allow low-current control signals to control high-current
circuits or devices. They serve as an intermediary between the electrical control system (such as switches
or computer modules) and the high-current electrical components. The relay box provides slots or sockets
to hold the relays securely.
Wiring connections: The relay fuse box has multiple input and output terminals for connecting the electrical
wiring from various systems and components. These terminals are typically marked or labeled to indicate
their purpose and intended connections.
Mounting: The relay fuse box is designed to be mounted securely within the vehicle or building. It may be
located in the engine compartment, interior cabin, or other accessible areas depending on the specific application.

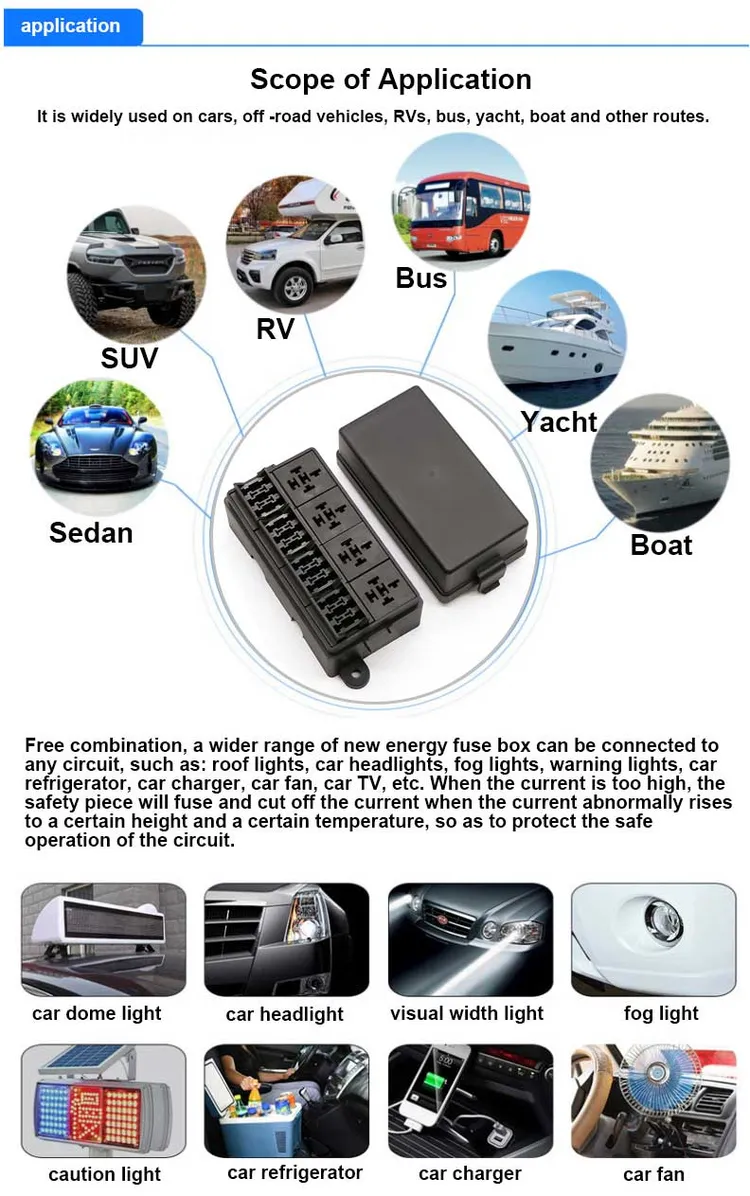

Application of 8 Way Car Auto Fuse Box With 2 Relay
It is widely used on cars, off -road vehicles, RVs, bus, yacht, boat and other routes. Free combination,
a wider range of new energy fuse box can be connected to any circuit, such as: roof lights, car headlights,
fog lights, warning lights, car refrigerator, car charger, car fan, car TV, etc. When the current is too high,
the safety piece will fuse and cut off the current when the current abnormally rises to a certain height and
a certain temperature, so as to protect the safe operation of the circuit.
