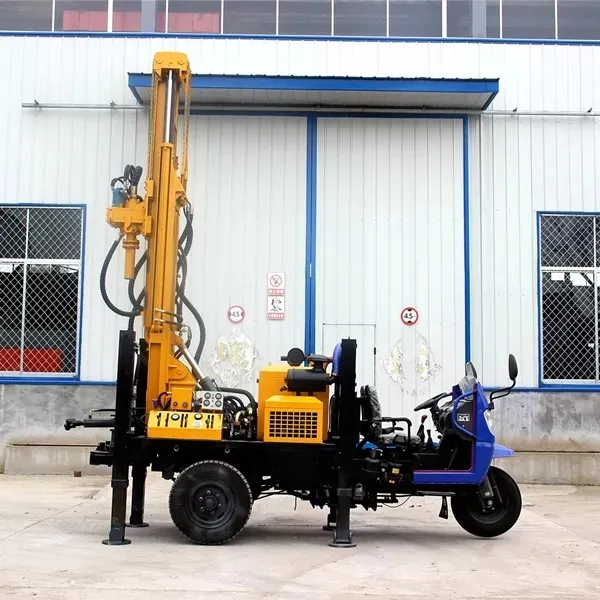

FY series hydraulic pneumatic multi-functional deep water well drill is a light, efficient, multi-functional drilling equipment, it is mainly suitable for drilling Wells, agricultural irrigation Wells, geothermal air conditioning holes and other uses of Wells, especially suitable for mountainous areas and rock formation water intake engineering.
(Can be modified according to customer needs with the use of mud pump)
---Walking device: walking motor with reducer, durable life long;
---Hydraulic pump: parallel transmission design separate oil pump monomone, power supply sufficient distribution reasonable, hydraulic system unique design, simple maintenance cost is small;
---Power head device: gearbox integrated casting, double motors to provide power, large torque, durable, small maintenance cost;
---Drilling machine chassis: excavator chassis, durable, large weight bearing, wide chain plate, less damage to hard road;
---Lifting force: the design of compound boom, small size, long stroke, double cylinder lifting, lifting tonnage;
---Each rig hoisting arm is installed with a limiter to protect the safety of the oil cylinder and ensure the safety of work;
---Each hydraulic tubing is equipped with a protective jacket for a longer service life.
TECHNICAL SPECIFICATIONS | |||
| Item | FYL200 Vehicle-mounted | Fast feeding speed | 40 m/min |
| The engine brand | Quanchai | Width of loading | |
| Equipped capacitor (Kw) | 65kW | Hoisting force of winch | ---- |
| The hole diameter(mm) | 140-254 mm | Using air pressure (Mpa) | 1.7-2.5 Mpa |
| Drilling depth (m) | 200m | Swing torque (N.m) | 3400-4700 N.m |
| Drill pipe diameter(mm) | φ76mm φ89mm | Air consumption | 17-31 m³/min |
| Drill pipe length(m) | 1.5m 2.0m 3.0m | Swing speed(rpm) | 45-65rpm |
| Rig lifting force | 13 T | Equipped with hammer | ---- |
| One-time advance length(m) | 3.3 m | penetration efficiency | 15-35 m/h |
| Rapid rise speed | 20 m/min | High leg stroke | 1.4 m |
| Walking speed(km/h) | 20-40km/h | The weight (T) | 4.7 T |
| Climbing angles(Max.) | 30° | Dimensions(mm) | 4350*1600*2450 mm |
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Kaixuan Road ,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
