Bulk-fodder Transport Truck
Oversea Service Available
12 Months
Manual
Diesel
21-30t
Euro 3
＞30000L
8×4
≤5
351-450hp
＞8L
Bulk-Fodder
ECE, GCC, ISO
Tubeless
New
Bulk-Fodder Transportation
Bulk-Fodder Transport Truck
Shipped in 60 Days After Deposit
Customers' Options
40cbm
Single or Double Beds,2/3 Seats
CHARY
Nude Packing
12000*2500*3950
China
8705909090
Product Description
40m3 bulk-fodder transport truck bulk delivery truck
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.Currently, we offer from 3T to 25T tank. Tank volume covers from 10m3 to 40m3(truck type) and also from 40 to 55m3 (trailer type). We modify the bulk fodder transportation tank with truck chassis of FAW, DONGFENG, FOTON, JAC, SHACMAN, SINOTRUK, SAIC, etc. Various of different volume for your choice. We believe that your requirements will be satisfied.
40m3 Bulk-fodder Transport Truck Bulk Delivery Truck with DONGEFNG chassis
| Vehicle Parameters | Overall Dimensions (L*W*H)(mm) | 12000×2500×3990 | Tank Dimension (L*W*H)(mm) | 9150×2480×2249 |
| Total Mass(kg) | 31000 | Curb Weight(kg) | 15770 | |
| Bulletin loading(kg) | 15100 | Theoretical loading(kg) | 21000 | |
| Max speed(km/h) | 90 | Minimum turning radius(m) | 12 | |
| Appearance color | White/ optional | Comprehensive fuel consumption | 33.2 | |
| Certification | ISO9001, 3C | |||
| Chassis Parameters | Chassis Model/ Manufacturer | DFH1310A1 /Dongfeng Trucks Company | ||
| Engine model / manufacturer | ISL9.5-315E51A /Dongfeng Cummins Engine Co., Ltd. | |||
| Transmission model / manufacturer | 12JSD160TA/ Shaanxi Fast Gear Co.,Ltd. | |||
| Max. output(kw) | 232 | Tire specifications | 295/80R22.5 18PR | |
| Cab Type | 8×4 rear wheel drive, capacity 2 people | |||
| Engine capacity(ml) | 9460 | Wheelbase(mm) | 1850+4600+1350 | |
| Travel recorder model | BSJ_A6BD/ShenZhen Boshijie | ABS Model/manufacture | 3631010/Dongfeng Electronic Technology Co.,Ltd | |
| Tank Parameters | Tank gross volume (m3) | 39 | Space quantity | 4 |
| Conveying height(m) | 10.5 | Max conveying distance(m) | 8.8 | |
| Discharge speed(Kg/min) | 550-650 | Residual rate(%) | ≤0.22 | |
| Elevation angle of discharge(°) | 0~60 | Rotation angle of discharge(°) | ±180 | |
| Tank drive form | External power and generator (Permanent magnet generator 20kw/380V. It is recommended to use an external power supply for unloading, which is low cost, environmentally friendly and low vehicle attrition) | |||
| Electrical configuration | Complete set of International Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V | |||
| Hydraulic auge | Use the patent of intermediate support structure, Graphite bearing; Lifting auger steering with wireless remote control. | |||
| Painting | Professional anti-corrosion paint. Process: sandblasting, polishing, painting. | |||
| Tank | Made of high-quality carbon steel sheet; The proof is sloping, which increase the fullness and safety factor; and Strict welding process guarantees quality. | |||

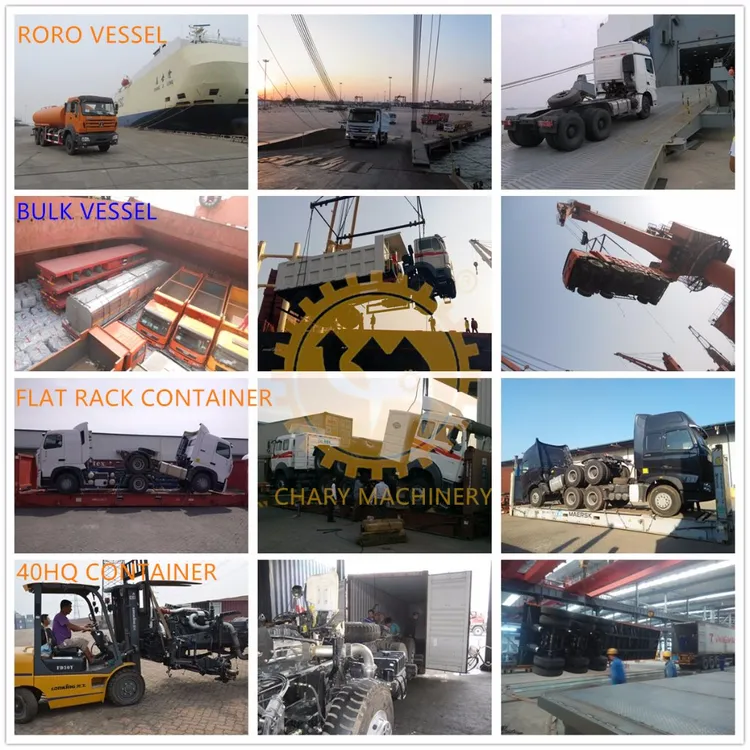

SHIPPING & PACKAGE
WHY CHOOSE US?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, SAIC, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
