Product Description

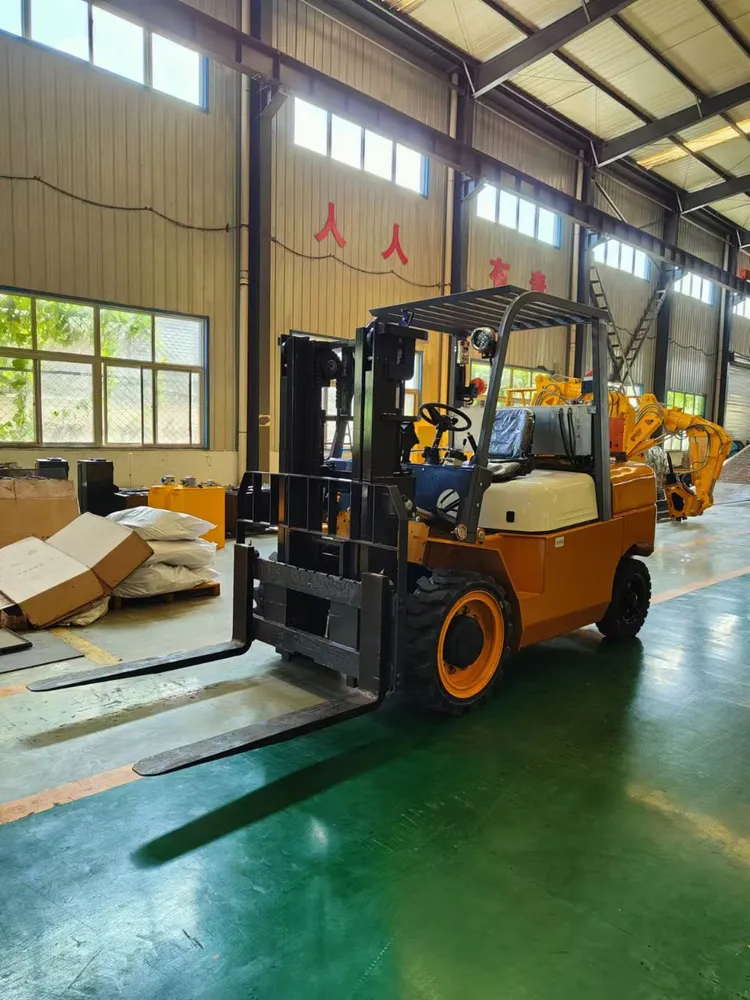

The internal combustion engine explosion-proof forklift is one of the combined explosion-proof type electrical equipment. It is mainly powered by the anti explosion diesel engine, which is different from the other powered with anti explosion Lithium battery. So, it has stronger power performance and longer continuous working time, compared with battery powered explosion proof forklift. It is widely used as an important operation equipment for loading, unloading, handling and stacking in explosive hazardous places.
| Item | Main Technical Parameters | |||
| Model | CPCBD50 | |||
| Rated lift capacity (kg) | 5000 | |||
| Steering type | Rear wheel type hydraulic steering | |||
| Machine weight (kg) | 7500 | |||
| Overall size (mm) | Total length (w/o forklift) | 3150±100 | ||
| Total length (w/t forklift) | 4420 | |||
| Total width | 1580±100 | |||
| Mast retracted | 2190 | |||
| Mast extended | 4290 | |||
| Total height (Overhead guard) | 2300±100 | |||
| Wheel base (mm) | 2150±100 | |||
| F/R track (mm) | 1530/ 1190 | |||
| Ground clearance Min.(Mast) (mm) | 200 | |||
| Traveling speed Max.(Km/h) | Laden | 22 | ||
| Unladen | 18 | |||
| Traction power Max.(KN) | 25 | |||
| Brake (Service brak/Parking brake) | Service brake | Wet brake (hyraulic brake, spring release) | ||
| Parking brake | Mechanical | |||
| Turning radius Min.(mm) | Inner side | 450 | ||
| Outer side | 3600±100 | |||
| Negoniable gradient Max.(%) | 14 | |||
| Overall maximum lift height | 2500 | |||
| Free lift height | 150 | |||
| Fork size (LxWxT mm) | 55×150×1070 | |||
| Lateral Fork Adjustment Max/Min (Outside of Forks) (mm) | 300~1070 | |||
| Tilt of the mast,Front/Rear(°) | 6/12 | |||
| Lifting speed (mm/s) | 370 | |||
| Lowering speed (mm/s) | 160 | |||
| Protection type | Lightning protection | |||
| Explosion proof diesel engine | XTW4105DZLDFB(A) | |||
| Rated power(Kw/r/min) | 70/2200 | |||
