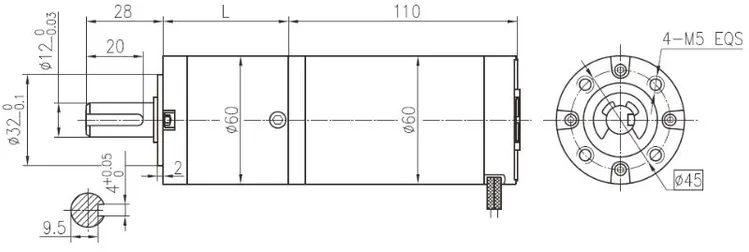

Drawing
Specification
Motor
| Model | Rated Voltage VDC | No-load speed rpm | No-load current A | Rated speed rpm | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
| GSD60R30D24 | 24 | 2000 | 0.32 | 1600 | 165 | 30 | 1.8 | 0.76 | 7.3 |
| GSD60R45D24 | 24 | 3000 | 0.4 | 2400 | 180 | 45 | 2.2 | 0.79 | 11.2 |
| GSD60R90D24 | 24 | 5000 | 0.55 | 4000 | 230 | 90 | 6 | 0.92 | 15.5 |
Gearbox
with GSD60R30D24 DC Motor
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 28 | 47 | 55 | 65 | 77 | 96 | 121 | 154 | 187 | 220 | 260 | 307 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length(L) mm | 34.5 | 34.5 | 45.8 | 45.8 | 45.8 | 45.8 | 57.1 | 57.1 | 57.1 | 57.1 | 57.1 | 57.1 | 68.4 | 68.4 | 68.4 | 68.4 | 68.4 |
| No- load speed r/m n | 556 | 471 | 154 | 133 | 111 | 71 | 43 | 36 | 31 | 26 | 21 | 17 | 13 | 11 | 9.1 | 7.7 | 6.5 |
| Rated speed r/min | 444 | 376 | 123 | 107 | 89 | 57 | 34 | 29 | 25 | 21 | 17 | 13 | 10 | 8.6 | 7.3 | 6.2 | 5.2 |
| Rated torque N.m | 0.53 | 0.63 | 1.7 | 2.0 | 2.4 | 3.7 | 5.7 | 6.6 | 7.8 | 9.3 | 12 | 15 | 17 | 20 | 24 | 28 | 33 |
| Max. permissible load in a short time N.m | 6 | 6 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 | 90 | 90 | 90 |
with GSD60R45D24 DC Motor
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 28 | 47 | 55 | 65 | 77 | 96 | 121 | 154 | 187 | 220 | 260 | 307 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length(L) mm | 34.5 | 34.5 | 45.8 | 45.8 | 45.8 | 45.8 | 57.1 | 57.1 | 57.1 | 57.1 | 57.1 | 57.1 | 68.4 | 68.4 | 68.4 | 68.4 | 68.4 |
| No- load speed r/m n | 833 | 706 | 231 | 200 | 167 | 107 | 64 | 55 | 46 | 39 | 31 | 25 | 19 | 16 | 14 | 12 | 9.8 |
| Rated speed r/min | 667 | 565 | 185 | 160 | 133 | 86 | 51 | 44 | 37 | 31 | 25 | 20 | 16 | 13 | 11 | 9.2 | 7.8 |
| Rated torque N.m | 0.58 | 0.69 | 1.9 | 2.2 | 2.6 | 4.1 | 6.2 | 7.2 | 8.5 | 10 | 13 | 16 | 18 | 22 | 26 | 31 | 36 |
| Max. permissible load in a short time N.m | 6 | 6 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 | 90 | 90 | 90 |
with GSD60R90D24 DC Motor
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 28 | 47 | 55 | 65 | 77 | 96 | 121 | 154 | 187 | 220 | 260 | 307 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length(L) mm | 34.5 | 34.5 | 45.8 | 45.8 | 45.8 | 45.8 | 57.1 | 57.1 | 57.1 | 57.1 | 57.1 | 57.1 | 68.4 | 68.4 | 68.4 | 68.4 | 68.4 |
| No- load speed r/m n | 1389 | 1176 | 385 | 333 | 278 | 179 | 106 | 91 | 77 | 65 | 52 | 41 | 32 | 27 | 23 | 19 | 16 |
| Rated speed r/min | 1111 | 941 | 308 | 267 | 222 | 143 | 85 | 73 | 62 | 52 | 42 | 33 | 26 | 21 | 18 | 15 | 13 |
| Rated torque N.m | 0.75 | 0.88 | 2.4 | 2.8 | 3.4 | 5.2 | 7.9 | 9.2 | 11 | 13 | 16 | 20 | 23 | 28 | 33 | 39 | 46 |
| Max. permissible load in a short time N.m | 6 | 6 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 | 90 | 90 | 90 |
Packing and Delivery
Exhibitions
About Greensky Power
Greensky Power Company Limited is a China-based international company that specializes in electric motors, gearbox and controlling system development, manufacturing, quality controlling, and trading.
Mission:
We are dedicated to developing an international electric motor company that can deliver one-stop reliable products with customer-oriented service.
History:
Greensky was established in 2010 by York Cheng in Los Angeles, USA, and moved to Hangzhou, China in 2011. In the past years, the team of Greensky continued to create value for our esteemed customers all over the world by building up a wide and reliable supply chain management system, effective quality & delivery time control system, cost-efficiency manufacturing system, and fast-respond professional service.
Certificates
FAQ
1 Q: What's your MOQ for the motor?
A: 1unit is ok for sample testing
2 Q: What about your warranty for your motor?
A: One year.
3 Q: Do you provide OEM service with the customer logo?
A: Yes, we could do OEM orders, but we mainly focus on our own brand.
4 Q: How about your payment terms?
A: TT, Western Union, and PayPal. 100% payment in advance for orders less than $5,000. 30% deposit and balance before delivery for orders over $5,000.
5 Q: How about your packing?
A: Carton, Plywood case. If you need more, we can pack all goods with pallet.
6 Q: What information should be given, if I buy a motor from you?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the motors?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.
We hope you will enjoy cooperating with us.
