42ZYT04A
Universal, Industrial, Household Appliances, Car
Constant Speed
Excited
Control
Other
Brush
Other
ISO9001, Ce and RoHS
Jkong Motor
12V/24V
3350rpm
0.07n.M
Ce and RoHS
42mm*42mm
90mm
Brushed DC Motor
JK
Export Carton
NEMA
Changzhou
8501109990
Product Description
42zyt04A OD 42mm High Torque Brush 12 Volt, 24 Volt DC Motor, Rated 3350rpm, 70mnm, 25W
DC motor
Rated vol, 12V 24V 40V
Rated speed, 3000~10000rpm
Rated torque, 39mNm ~ 100mNm
CE and RoHS
Motor technical parameter
Shaft HRC 36~40; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range: -40° C~+140° C
CE and RoHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation

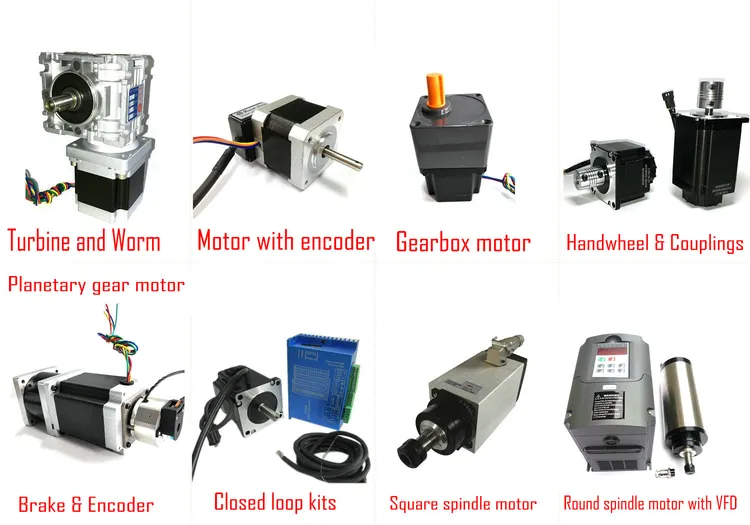

STEPPER MOTOR IN HOT SELLING
DC motor
Rated vol, 12V 24V 40V
Rated speed, 3000~10000rpm
Rated torque, 39mNm ~ 100mNm
CE and RoHS
Motor technical parameter
Shaft HRC 36~40; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range: -40° C~+140° C
CE and RoHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model | 42ZYT04A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3350 | 3350 | 3350 |
Continuous rated torque | mN.m | 70 | 70 | 70 |
Continuous current | A | 2.8 | 1.4 | 0.85 |
Starting torque | mN.m | 400 | 400 | 400 |
Starting current | A | 15.1 | 7.5 | 4.62 |
No load speed | rpm | 4000 | 4000 | 4000 |
No load current | A | 0.35 | 0.25 | 0.15 |
Demagnetization current | A | 24 | 10.5 | 6.3 |
Rotor inertia | Gcm2 | 193 | 193 | 193 |
Weight of motor | g | 600 | 600 | 600 |
Motor length | Mm | 90 | 90 | 90 |
