MP086YG100
Constant Speed
Two-Phase
HB-Hybrid
Control
4
Enhanced Hybrid Stepper Motor
Magnetic-Electric
ISO9001, CE
Exmek Electric
Exmek
Carton + Wood Pallet
CE, RoHS
China
8501310000
Product Description
General information
Specifications
Special design available.
Mechanical
Packaging & Shipping
1, Waterproof plastic bag packed in foam box and carton as outer packing.
2, Export wooden box packaging for products.
Company Profile
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.
We are open for general discussion and questions. Contact us now!
- Step angle accuracy: 1.8°±5%
- Temperature rise: 80°C max
- Ambient temperature: -20°C~+50°C
- Insulation resistance: 100M(OHMS). min., At 500V
- Dielectric strength: 500V AC, 1S, 2mA
- Insulation class: B
Specifications
| Part no. | MP086YG100 | ||
| Connection | Parallel | Series | Unipolar |
| Phase current | 6.1(A) | 3(A) | 4.3(A) |
| Phase resistance | 0.25 (OHMS) | 1 (OHMS) | 0.5 (OHMS) |
| Phase inductance | 2.1 (mH) | 8.4 (mH) | 2.1 (mH) |
| Holding torque | 2.8 (Nm) | 2.8 (Nm) | 2.3 (Nm) |
| Detent torque | 0.2 (Nm) | 0.2 (Nm) | 0.2 (Nm) |
| No. of wires | 8 | 8 | 8 |
| Rotor inertia | 0.66 (g.cm²) | 0.66 (g.cm²) | 0.66 (g.cm²) |
| L | 67 (mm) | 67 (mm) | 67 (mm) |
| Weight | 1.6 (Kg) | 1.6 (Kg) | 1.6 (Kg) |
| D | 12.7(mm) | 12.7(mm) | 12.7(mm) |
| K | 3.175(mm) | 3.175(mm) | 3.175(mm) |
| T | 10.92(mm) | 10.92(mm) | 10.92(mm) |

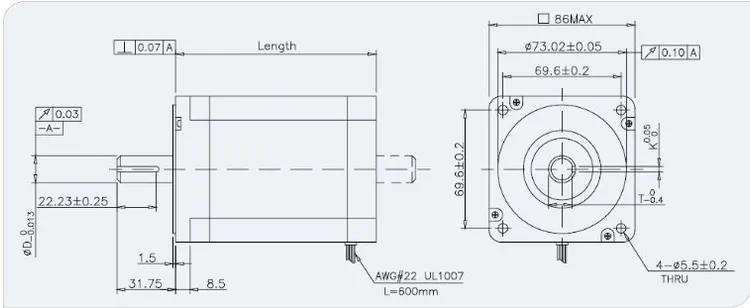

Mechanical
