MB082GA200
Universal, Industrial, Household Appliances, Car, Power Tools
Adjust Speed
Excited
Control
Closed Type
8
Brushless
ISO9001, UL/Ce
Exmek
Exmek
CTN & Pallet
CE, RoHS
China
8501310000
Product Description
General information
Mechanical
Characteristic diagram
- NEMA 34 frame size
- 8-pole with three phases
- Integrated hall effect commutation
- Insulation class F
- Bonded neo magnet
- UL certified structure
| Specification | MB082GA200 |
| Supply Voltage (reference) | 170 Vdc |
| Rated Continuous Torque | 0.88 Nm |
| Rated Speed at Cont. Torque | 6000 rpm |
| Rated Continuous Stall Current | 6.7 A |
| Rated Continuous Output Power | 554 W |
| Rated Peak Torque | 2.82 Nm |
| Rated Peak Current | 19.8 A |
| Torque Constant | 0.143 Nm/A |
| Voltage Constant | 15 V/krpm |
| Terminal Resistance | 0.43 Ω |
| Inductance | 1.89 mH |
| Insulation Class | F |
| Rotor Inertia | 1.02E-04 |
| Motor Weight | 2 Kg |
| Motor Length | 90 mm |

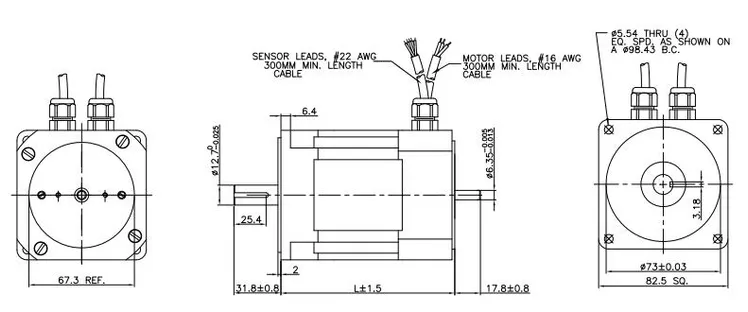

Mechanical
Characteristic diagram
