77ZZYT132-2434
Universal, Industrial, Household Appliances, Car, Power Tools
Adjust Speed
Excited
Driving
Closed Type
2
Brush
PMDC Motor
ISO9001, CCC, SGS
Sunrise Motor
77zyt132-2434
24VDC
8A
3000rpm
0.7n.M
220W
132mm
sunrise motor
Carton, Pallet
77ZYT132-2434
China
85013100
Product Description

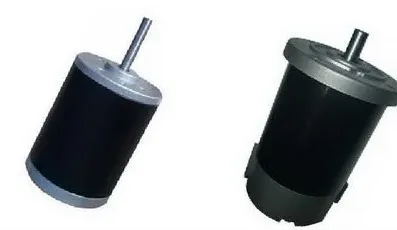

PMDC MOTOR
MODEL: 77ZYT132-2434
Voltage: 24V
Rated Torque: 0.7N, m
Rated Current: 8A
Speed: 3000rpm
Lenght: 132MM
Specail motors can be customized per your requirements.
Bearing option: Ball bearing and sleeve bearing.
| Model | Voltage (V DC) | No Load | Rated Load | Length (mm) | |||
| Current (A) | Speed (r/min) | Torque (N. m) | Current (A) | Speed (r/min) | |||
| 77ZYT103-1211 | 12 | 0.3 | 1100 | 0.23 | 3 | 800 | 103 |
| 77ZYT122-1240 | 12 | 1.2 | 4000 | 0.50 | 16 | 3500 | 122 |
| 77ZYT132-2434 | 24 | 0.7 | 3400 | 0.70 | 8 | 3000 | 132 |
| 77ZYT130-2437 | 24 | 0.7 | 3700 | 0.50 | 7.4 | 3200 | 130 |
| 77ZYT135-1226 | 12 | 1.2 | 2600 | 0.60 | 13 | 2100 | 135 |
| 77ZYT150-2434 | 24 | 0.7 | 3400 | 0.70 | 11 | 3000 | 150 |
