WP-23
1 Year
1 Year
Log Splitter
Gasoline
CE, EPA
23t
280mm
200-650mm
2900mm
Ca 25 Lit/Min, 220 Bar
32L
18m3 / 8h
Wood Box
WP23
China
84659600
Product Description

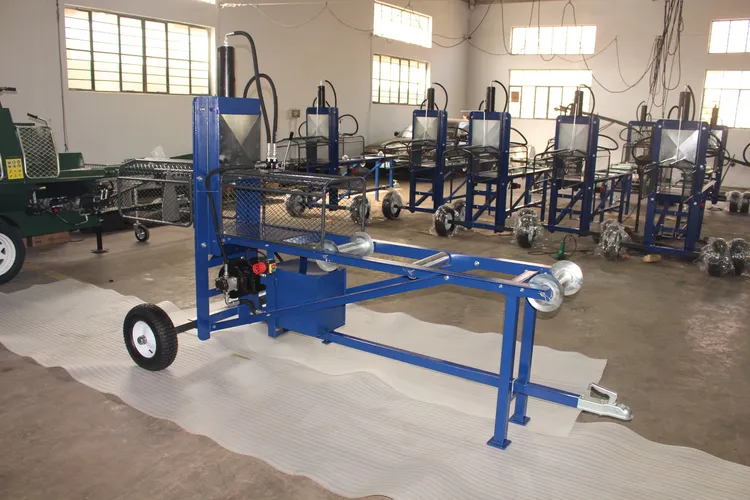

Gasoline engine wood cutter chopper
1.Description of wood processor
Wood cutting machine that cuts and splits in one step. Capacity about 18 m3 in one working day. The strong splitting knife is provided with wedges on each side and the wood can be divided into two or four pieces. Rima wood clippings do not leave a large high sawdust on the ground and do not have a high machine sound. Support wheels for a steady wood cut that can handle strong wood handling. Food table with suction line with filter. Arrest for setting the wood length. Valve for operating the knife. Knife with axes of hardox 400. Some amount of oil is in the machine but more oil should be filled before the machine is used for maximum power. Delivered unmounted.
Specification
Max pressure force: 20 tons
Max diameter at: 28 cm
Wood length: 20-65 cm
Number of pieces: 2-4 pieces
Can be towed by car: Max 30 km / h
Ball glove: 50 mm
Hydraulic tank: 20 liters
Hydraulic oil: Viscosity 32
Hydraulic pump: about 25 liters / minute, 220 bar
Weight: 360 kg
Hydraulic cylinder: 23 tons
Screw cap with aeration
Engine and pump
Warranty 1 year
2.Detail image
Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers' requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
6.Our team
7.Some clients visiting us
8.Delivery
9.Contact
Wood cutting machine that cuts and splits in one step. Capacity about 18 m3 in one working day. The strong splitting knife is provided with wedges on each side and the wood can be divided into two or four pieces. Rima wood clippings do not leave a large high sawdust on the ground and do not have a high machine sound. Support wheels for a steady wood cut that can handle strong wood handling. Food table with suction line with filter. Arrest for setting the wood length. Valve for operating the knife. Knife with axes of hardox 400. Some amount of oil is in the machine but more oil should be filled before the machine is used for maximum power. Delivered unmounted.
Specification
Max pressure force: 20 tons
Max diameter at: 28 cm
Wood length: 20-65 cm
Number of pieces: 2-4 pieces
Can be towed by car: Max 30 km / h
Ball glove: 50 mm
Hydraulic tank: 20 liters
Hydraulic oil: Viscosity 32
Hydraulic pump: about 25 liters / minute, 220 bar
Weight: 360 kg
Hydraulic cylinder: 23 tons
Screw cap with aeration
Engine and pump
Warranty 1 year
| Model | WP-23E | WP-23G |
| Max compressive force | 23 Ton | 23 Ton |
| Max diameter of wood | 280mm | 280mm |
| Max length wood | 200-650mm | 200-650mm |
| Cut logs length | 2900mm | 2900mm |
| Power | 380V/50HZ, 4KW, 3 phase | 6.5HP China Gasoline Engine |
| Hydraulic pump | Ca 25 lit/min, 220 bar | Ca 25 lit/min, 220 bar |
| Hydraulic oil | 32L | 32L |
| Split time | 8 sec. down/5 sec. up | 8 sec. down/5 sec. up |
| Capacity | 18m3 / 8h | 18m3 / 8h |
| Wood slices | 2-4 | 2-4 |
| Towable behind a car | 30km/h | 30km/h |
| Coupler | 50mm-EU | 50mm-EU |
| Piston diameter | 100/80 x 300 mm | 100/80 x 300 mm |
| Tyre | 16*6.5-8 | 16*6.5-8 |
| Weight | 290/320kg | 290/320kg |
| 20''/40" Container | 29/60pcs | 29/60pcs |
| Size | 2180x680x480mm | 2180x680x480mm |

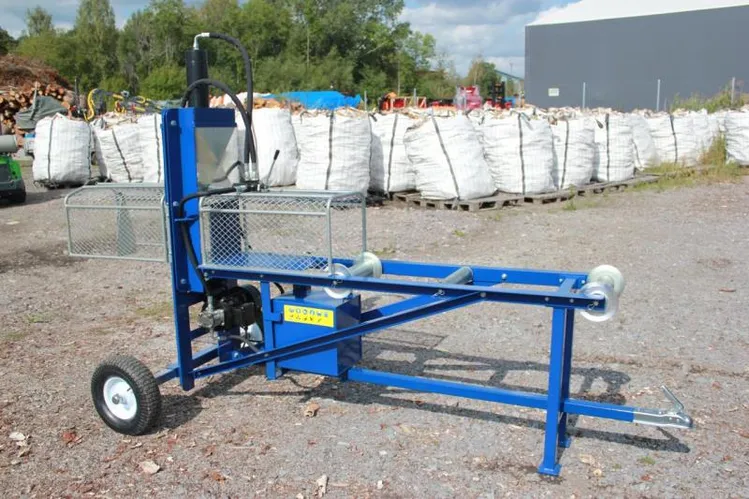

2.Detail image
3.After sale
we will provide new electrical accessiores or parts in warranty during time.(one year warranty period)

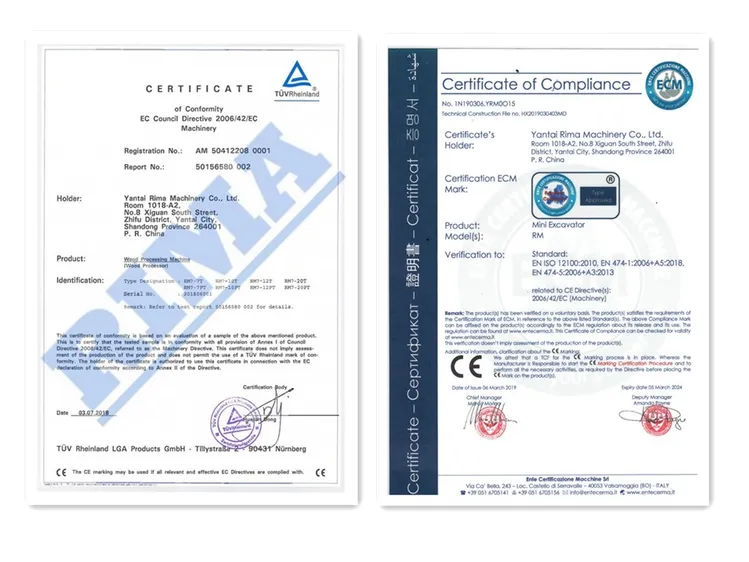

4.Certificate
Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers' requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
6.Our team
7.Some clients visiting us
8.Delivery
9.Contact
