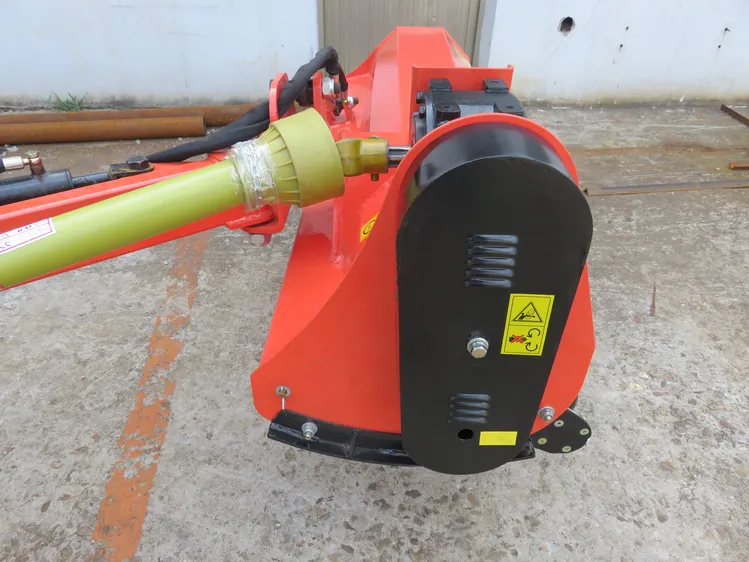

200cm Cutting Width Pto Grass Flail Mower / Flail Mower Mounted on Tractor

3point hitch topper finish flail rotary grass mower for tractor

>>Description
RIMAi's flail mowers are built to quickly manage everything from cutting and topping grassland with small saplings to chopping stubble and straw.
The fast rotation speed ensures the forged hammer flails can very easily hack and cut all types of material; fits tractors between 18 and 40 hp. Hard-wearing all-round mower for all your need
 • Working width 145 cm
• Support roller for reliable adjustment of cutting height
• 25 forged hammer flails
• Wear skids on sides
• Robust design

OVERALL WIDTH: 65" CUTTING WIDTH: 59" WEIGHT: 641 lbs. (mower weight only) PTO shaft weighs an additional 39 lbs. HP REQUIREMENTS: 20-45 PTO horse power CUTTING HEIGHT 3/4"-4" Adjustable to meet various height requirements DECK PLATE MATERIAL THICKNESS 4 gauge .250" Structural Q235 roll formed steel for durability. SIDE PLATE THICKNESS 1/4" .250" Structural Q235 roll formed steel for durability.

>>Technical Data

MODEL	AGF-140	AGF-160	AGF-180	AGF-200	AGF-220
Dimension(L×W×H)	1800×2225×1020mm	2000x2225x1020mm	2200×2225×1020mm	2400×2225×1020mm	2600X2225X1020mm
Structure Weight	598kg	612kg	658kg	698kg	738kg
Cutting Width	1400mm	1600mm	1800mm	2000mm	2200mm
PTO Turnning Speed	540r/min	540r/min	540r/min	540r/min	540r/min
PTO Spline	6×8×1600mm	6×8×1600mm	6×8×1600mm	6×8×1600mm	6×8×1600mm
Tractor HP	40-85HP	50-85HP	55-90HP	55-90HP	55-90HP
Include PTO shaft

>>Product Details

BLADE TYPE Hammer or reversible Y-blades. Our hammer blades are 40cr, alloy structural steel. (American standard, AISI/SAE/ASTM steel no: 5140) and forged to a tapered wedge shape to avoid material buildup on the blades. Each blade weighs 1.85 lb. (cast steel is much more durable than cast iron) competitors use flat face blades. Side by side comparison of WoodMaxx exclusive hammer blade design: The reversible Y-blades are made from .33" 60si2mn, spring steel, (American standard: A29m) formed, heat treated, and quenched in oil and weigh 1.75 lb. each. Use the hammer blades for clearing saplings (1" diameter or less), and the Y-blades for grasses.

NUMBER OF BLADES 18 Hammer or 36 Y-blades. PRECISION BLADE OVERLAP The blades are staggered precisely with no gap in the mowing area. Blade overlap is important to achieve an even cutting result. HINGED REAR GATE This allows for easy inspection, cleaning, blade changing, and maintenance of your machine. The rear gate can also be left open for easier discharge in heavy conditions, or you can close the gate to greater mulching. ROTOR ROTATION Reverse - the rotor spins in the opposite direction as the wheels of the tractor when traveling forward. This allows the blades to shear the material as it is folded forward by the mowers. The material is then thrown up and over the rotor.

ROTOR ROTATION Reverse - the rotor spins in the opposite direction as the wheels of the tractor when traveling forward. This allows the blades to shear the material as it is folded forward by the mowers. The material is then thrown up and over the rotor. ROTOR TUBE DIAMETER 4.25"- Heavy duty 5/16" wall tubing for long life. BALANCED ROTOR TUBE The rotor tube is balance to reduce vibration and ensures that the mower runs smooth, and reduces wear on the bearings. BALANCED CAST IRON PULLEYS The V-belt pulleys are heavy duty cast iron and balance to eliminate vibration, and run smooth.

>>Work Shop

FAQ
F Are you factory or trading company?
A) We are ISO9001 certified factory, mainly manufacture in Forestry & Farm Machinery.
B) Using "Self-produced Self-marketing" business, reducing the cost of intermediate links.
02 What's your company advantages?
A) As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products.
B) We have various products and can offer all the machines and tools in the forest and farm. You can get all the items you need. Easy and convenient for you.
C) With us your money and your business is safe. We can offer 7-days refund in case of bad quality,
D) Coming together is a beginning; keeping together is progress; working together is success.

03 Can we buy one sample?
Yes, we need to add sample fee to the price and will return it back to your after receiving your large order in future.

04 What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.

05 How do you control your quality?
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment. Our whole manufacturing processes are under a very serious and strict system in our company.
