GF12V120AH
Lead-Acid Batteries
UPS, Electric Power, Lighting
12V
Low Discharge Rate
Square Battery
Acid
Packaged
Chargeable
Support
Black/Customizable
ABS
Free
GEM
Cartons in Palet
GF12V120AH
Quan Zhou Fujian
85072000
Product Description
GEMBATTERY 12V120AH Front Terminal Lead Acid AGM Deep Cycle VRLA Solar Battery
GEM I GF Series | Voltage (V) | Capacity (AH/10HR) | Dimension (in) | Weight ±5% (lbs) | Dimension (mm) | Weight ±5% (kgs) | Terminal | ||||||
| ±0.04 | ±0.04 | ±0.08 | ±0.08 | ±1 | ±1 | ±2 | ±2 | ||||||
| L (in) | W (in) | H (in) | TH (in) | L (mm) | W (mm) | H (mm) | TH (mm) | ||||||
| GF 12-50 | 12 | 50 | 10.91 | 4.18 | 8.79 | 9.06 | 37.48 | 277 | 106 | 223 | 230 | 17.00 | M8*16 |
| GF 12-75 | 12 | 72 | 22.14 | 4.53 | 7.37 | 7.64 | 42.99 | 562 | 115 | 187 | 194 | 19.50 | M8*16 |
| GF 12-75A | 12 | 80 | 22.14 | 4.53 | 7.37 | 7.64 | 57.32 | 562 | 115 | 187 | 194 | 26.00 | M8*16 |
| GF 12-100 | 12 | 100 | 15.52 | 4.33 | 11.27 | 11.27 | 66.14 | 394 | 110 | 286 | 286 | 30.00 | M8*16 |
| GF 12-110 | 12 | 110 | 15.52 | 4.33 | 11.27 | 11.27 | 72.75 | 394 | 110 | 286 | 286 | 33.00 | M8*16 |
| GF 12-105 | 12 | 105 | 19.98 | 4.33 | 8.79 | 9.38 | 70.55 | 507 | 110 | 223 | 238 | 32.00 | M8*16 |
| GF 12-120 | 12 | 120 | 21.71 | 4.29 | 9.46 | 9.46 | 89.73 | 551 | 109 | 240 | 240 | 40.70 | M8*16 |
| GF 12-125 | 12 | 125 | 21.47 | 4.14 | 12.41 | 12.41 | 88.62 | 545 | 105 | 315 | 315 | 40.20 | M8*16 |
| GF 12-155 | 12 | 155 | 21.71 | 4.33 | 11.35 | 11.35 | 106.92 | 551 | 110 | 288 | 288 | 48.50 | M8*16 |
| GF 12-170 | 12 | 170 | 21.67 | 4.93 | 11.03 | 11.03 | 112.43 | 550 | 125 | 280 | 280 | 51.00 | M8*16 |
| GF 12-180 | 12 | 180 | 21.67 | 4.93 | 11.03 | 11.03 | 119.05 | 550 | 125 | 280 | 280 | 54.00 | M8*16 |
| GF 12-170A | 12 | 170 | 21.51 | 4.93 | 12.45 | 12.73 | 119.05 | 546 | 125 | 316 | 323 | 54.00 | M8*16 |
| GF 12-180A | 12 | 180 | 21.51 | 4.93 | 12.45 | 12.73 | 123.46 | 546 | 125 | 316 | 323 | 56.00 | M8*16 |
| GF 12-200A | 12 | 200 | 21.51 | 4.93 | 12.45 | 12.73 | 127.87 | 546 | 125 | 316 | 323 | 58.00 | M8*16 |
| GF 12-170B | 12 | 170 | 22.10 | 4.93 | 12.45 | 12.45 | 112.43 | 561 | 125 | 316 | 316 | 51.00 | M8*16 |
| GF 12-180B | 12 | 180 | 22.10 | 4.93 | 12.45 | 12.45 | 118.61 | 561 | 125 | 316 | 316 | 53.80 | M8*16 |
| GF 12-200B | 12 | 200 | 22.10 | 4.93 | 12.45 | 12.45 | 128.97 | 561 | 125 | 316 | 316 | 58.50 | M8*16 |

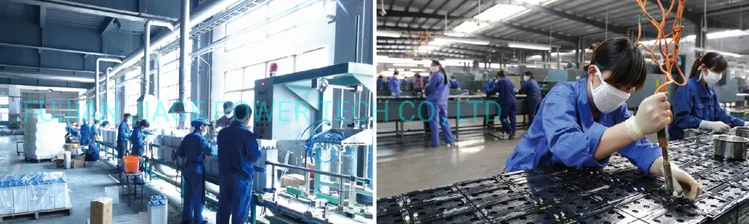

Professional manufacturer
60,000 m2 factory located in QuanZhou City, FuJian Province since 2004
With more than 550 staffs
144,000 KVAh monthly
With certificates of ISO9001, ISO14001, OHSAS18001, UL, CE, RoHS
IEC60896-21/22, IEC61056-1/2 and IEC61427-1/2.
Professional team
1. To analyse the composition of the battery plates ,the grids, the lead ingot. The analysis correctly shows the excellent purity of Pb% from the lead ingot more than 99.996%,
2. We analyze the formation and conversion of PbSO4 to know round-trip of electric power Reserve and Supply performance of the plates during the cycles charged and discharged.
4. We create extreme conditions (constant high or low temperature, constant high power discharge, short circuit current test, etc.) and
execute destructive experiments on completed-batteries to know the electric limits and to prevent micro-short-circuit.
5. we check the status of internal terminal installation to assure the further sealing quality and prevent leakage.
We believe we shall well know the batteries before delivering them to customers.
1. To analyse the composition of the battery plates ,the grids, the lead ingot. The analysis correctly shows the excellent purity of Pb% from the lead ingot more than 99.996%,
2. We analyze the formation and conversion of PbSO4 to know round-trip of electric power Reserve and Supply performance of the plates during the cycles charged and discharged.
4. We create extreme conditions (constant high or low temperature, constant high power discharge, short circuit current test, etc.) and
execute destructive experiments on completed-batteries to know the electric limits and to prevent micro-short-circuit.
5. we check the status of internal terminal installation to assure the further sealing quality and prevent leakage.
We believe we shall well know the batteries before delivering them to customers.
3. Power Solution
We have been cooperated with many customers who keep different requirements of the power systems. We could always find a correct way to develop the best power solution for any particular application and requirement by our experience.
No matter for civil purpose, or industrial applications, or critical conditions, GEM battery would be the correct choice for the battery power solution.
