| Model NO.: | TH20F10025C7 | IP degree: | IP54 |
| Can Bus Protocal: | Can | Transport Package: | Wooden Box |
| Cooling Method: | Fan Cooling | Application: | DC Fast Charging Station |
| Peak Efficiency: | ≥96% | Trademark: | TONHE |
| EMC: | Class B | Origin: | China |
| Specification: | 435*300*84mm | H S Code: | 8504401991 |
- Wide Constant Power Range: 300-1000V
- Ultra low standby power consumption: Less than 10kw
- Ultra low THD: ≤4%
- Ultra wide operating temperature range: -40~75ºC
- Ultra wide voltage input range: 380V±25%
- Ultra high conversion efficiency: Peak efficiency ≥96%
| Model No | TH20F10025C7 | |
| AC input | Input voltage | Rated voltage 380VAC, three phase, operating range 285-475VAC |
| Input frequency | 50±5Hz | |
| Input power factor | ≥0.99 | |
| Input overvoltage protection | 495±5VAC | |
| Input undervoltage protection | 270±5VAC | |
| DC output | Rated output power | 20kW |
| Output voltage range | 50~1000VDC | |
| Output current range | 0.5~67A | |
| Output constant power range | When output voltage is 300-1000VDC, constant 20kW will output. | |
| Peak efficiency | ≥96% | |
| Soft start time | 3-8S | |
| Short circuit protection | Self-rollback protection | |
| Voltage regulation accuracy | ≤±0.5 | |
| THD | ≤4% | |
| Current regulation accuracy | ≤±1% | |
| Current sharing imbalance | ≤±5% | |
| Operating environment | Working temperature | -40ºC- +75ºC |
| Relative humidity | ≤95% no condensation | |
| Altitude | ≤2000m, derating above 2000m | |
| Product Features | Cooling method | Fan cooling |
| Standby power consumption | <10W | |
| Communication Protocol | CAN | |
| Address setting | Digital screen display, keys operation | |
| Module dimension (without handle) | 460*218*84mm(L*W*H) | |
| Weight | ≤13kg | |
| MTBF | 500000 hours |
- Two automatic SMT lines. Achieve high speed, precise, fine patch work. Using vacuum suction materials, laser identification for patch.
- TR7710 detector uses a high sensitive 6.5Mpix high speed color camera with 10 µm optical resolution. Prevent unqualified PCB board from flowing into production line.
- Three connector wave soldering pipeline. By controlling wave crest parameters, the overall effect of connector welding is guaranteed.
- Automatic three proofings spraying line.
- The TF-550BL coating machine controls the thickness and position of the three-proof spraying through program setting. The board turning machine is set up in the middle to ensure that the front and back of the product are sprayed by the three-proof spraying machine, which saves the time of changing the board in the middle and improves the efficiency.

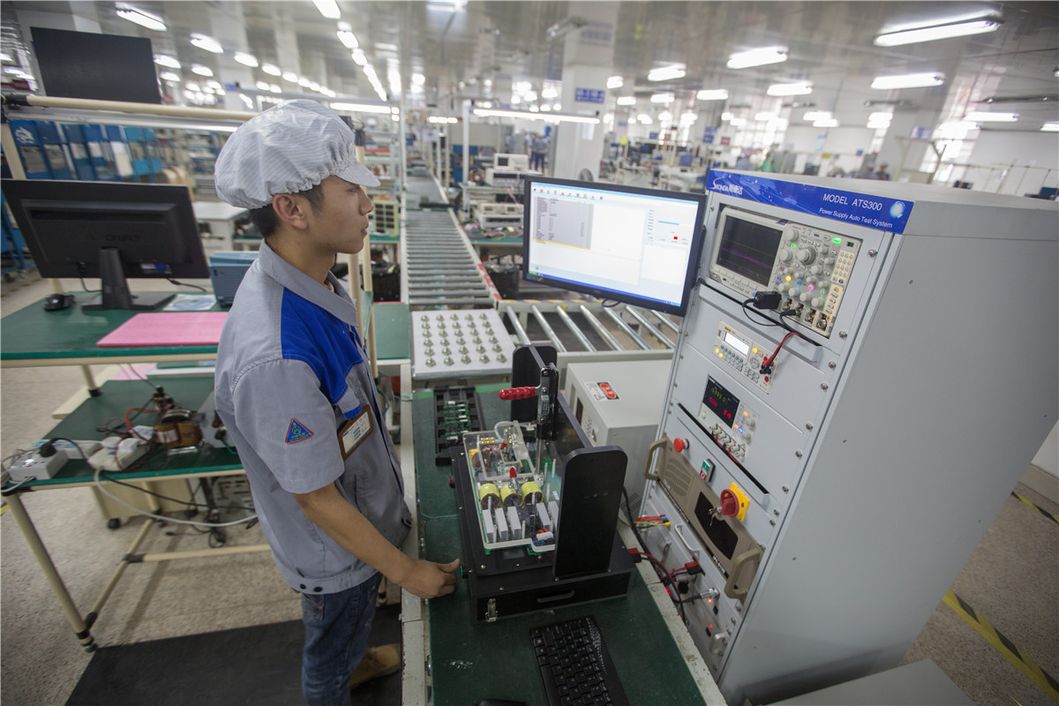

- The aging chamber, which is designed and built independently, adopts feedback load and aging automatic detection system to ensure that mass produced products undergo comprehensive aging test before the follow-up inspection process.
-Anechonic Chamber Designed and contracted to build by Germany FARNKONIA,meeting testing place requirements of CISPR22\CISPR24,IEC61000-4-3,ISO 11452-2,ISO 11452-4,GJB151A/GJB152B
-Test hall:program AC power supply,DC electronic load,power quality analyzer,300KVA adjustable AC power supply and so on.
