YGY-3, YGY-200YY
CE, ISO 9001:2008
New
Diesel
75mm-325mm
600m
Diamond Bit
Rotary
Four-Wheel trailer
Wheel Water Well Drilling Rig Machine
90- 65
38/2400kw/R/Min
3600kg
50mm,60mm,72mm
30-1050r/Min
42kw
Bw250
250L/Min
600mm
Yugong
20'gp Container
2900*2560*3300mm
China, Henan Province
8430691900
Product Description

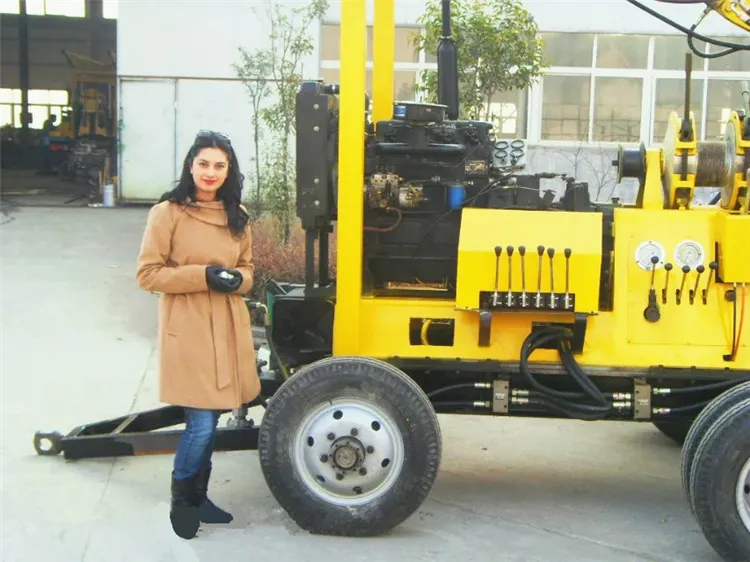

Hydraulic rock boring rig drilling machine
Production Description
YGY-3 ,YGY-200YY water well drilling rig is mainly used for water wells,geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.
Feature
1.Hydraulic cylinder,high efficiency.
2.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
3.Pressure gauge display the condition of the bottom of the drill hole.
4.Diesel engine with electric starter,convenient and reduce the labor itensity.
5.Equipped with BW 250 mud pump.
Technical Parameter
Working Case
Company Information
Henan Yugong Machinery Co., Ltd., located in Erqi District of Zhengzhou City, Henan Province, is a large engineering machinery manufacturing enterprise which focuses on research and development, production and sales of drilling equipment in mining, tunnel, road and bridge construction. We can produce sets of construction system equipment such as drilling machine, road construction machine and demolition cutting machine, etc. Technical design, material purchasing, precise manufacturing and strict quality inspection are all processed according to top standard. "Quality First, Reputation First, Be Innovative, Be Excellent." has always been our purpose. We warmly welcome your corporation from all fields and build great future for us all.
Our Certification
Purchase Assurance
High quality raw material suppliers provide us stable and excellent performance machines; skilled and responsible engineers, technicians and workers keep our production line proceed well-organized; we'll test running every machine before delivery, to make sure it works well in clients' construction sites; all machines have one--year warranty and lifelong maintenance, our sales manager provide elaborate machine-related consulting service and technical assistance during pre and after-sales, to make sure clients are proficient in operating our machines.
Contact Us
Reated product
Production Description
YGY-3 ,YGY-200YY water well drilling rig is mainly used for water wells,geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.
Feature
1.Hydraulic cylinder,high efficiency.
2.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
3.Pressure gauge display the condition of the bottom of the drill hole.
4.Diesel engine with electric starter,convenient and reduce the labor itensity.
5.Equipped with BW 250 mud pump.
Technical Parameter
| The whole machine parameters | ||
| Model | YGY-3 | YGY-200YY |
| Drill hole depth | 600m | 200m |
| Maximum opening diameter | 325mm | 225mm |
| Final hole diameter | 75mm | 75mm |
| Drill pipe diameter | Φ50,60mm | Φ50,60mm |
| Borehole inclination | 90°- 65° | 90°- 65° |
| Power(diesel engine) | 38/2400kw/r/min | 15/2200kw/r/min |
| Motor | 42KW | 36kw |
| Vertical shaft | ||
| Vertical spindle speed | 30-1050r/min | 64-557r/min |
| Vertical stroke | 600mm | 450mm |
| Hoist | ||
| Single line lifting capacity | 30KN | 24KN |
| Single rope lifting speed | 0.5-1.9m/s | 0.12-0.95m/s |
| Drum diameter | Φ305mm | Φ140mm |
| Diameter of wire rope | Φ12.5mm | Φ13mm |
| Wire rope capacity | 65m | 35m |
| Mud pump | ||
| Model | BW250 | BW160 |
| Flow | 250L/min | 160L/min |
| Maximum pressure | 17Mpa | 12Mpa |
| Reciprocating frequency | 93times/min | 93times/min |
| Water inlet diameter | Φ75mm | Φ51mm |
| Water to exit diameter | Φ50mm | Φ32mm |
Working Case
