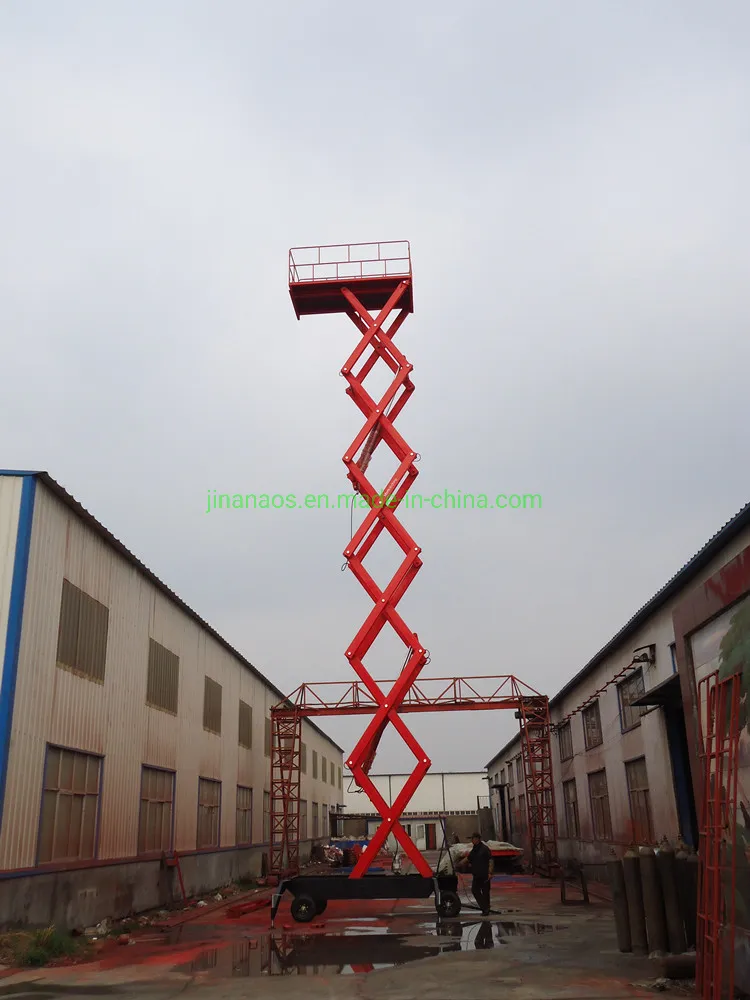

The mobile hydraulic scissor lift is widely used for the equipments installations and maintenance, mainly used on construction sites, workshops, warehouse, airport, bus&railway stations, hotels, garage, gas station, aerial pipeline, and so on. It can design and produce according to clients' requirements.
The specifications of the SJY0.3-4:
| Model | SJY0.3-4 |
| Capacity | 300kg |
| Table size | 2100*800mm |
| Max platform height | 4m |
| Working height | 5.7m |
| Dimension | 2200*980*1100mm |
| Weight | 850kg |
| Motor | 1.1kw/380v/50Hz |
| Cylinder | HSG80/45 *1pc |
| Tire | 400-8,pneumatic |
| Lifting speed | 4-6m/min |
| Steel material | Q235 carbon high strength steel. |
| Platform thickness | 3mm steel plate bend, add 3mm diamond plate. |
| Scissor rod | Rectangular tube, size:100*50*4mm. |
| Bottom frame | Rectangular tube, size:100*50*4mm. |
| Oil tube | 2-10-43MPa,Double steel net high-pressure tube. Inside explosion-proof valve. |
| Pump station | Anshenglisheng brand, with emergency oil returning valve. Inside has overflow valve, overload protection. |
| Support legs | 4 pcs, Rectangular tube, size:100*50*4mm. |
| Control box | Delixi brands, contactor list links, equipped with thermal overload protection, phase losing protection. |
| Control method | Bottom and upper controls,Up.,down, stop and jerk button. |
| Shaft pin | 45# round steel made, thermal refining. |
| Bearing | SF-2 oil-free self-lubricating bearings. |
| Hydraulic oil | 32# Great wall brand. |
| Derusting processing | Shot and blasting derusting treatment,make the surface clean and effect of uneven, increase the adhesion of powder when paint. |
| Paint | Using electrostatic powder coating,strong adhesion,High brightness of color. Bake treatment. |
| Package | Wooden case packing. |
----------------
These are all the models table list:
| Model | Platform Height(m) | Capacity(kg) | Platform size(m) | Total size(m) | Weight(kg) |
| SJY0.3-4 | 4 | 300 | 1.50*0.8 | 1.70*0.90*1.1 | 400 |
| SJY0.3-6 | 6 | 300 | 1.50*0.8 | 1.70*0.90*1.2 | 650 |
| SJY0.5-6 | 6 | 500 | 1.50*0.8 | 1.70*0.90*1.3 | 700 |
| SJY0.3-8 | 8 | 300 | 1.80*1.2 | 2.30*1.50*1.4 | 1200 |
| SJY0.5-8 | 8 | 500 | 1.80*1.2 | 2.30*1.50*1.45 | 1350 |
| SJY0.8-8 | 8 | 800 | 1.81*1.2 | 2.30*1.50*1.55 | 1700 |
| SJY0.3-10 | 10 | 300 | 2.10*1.2 | 2.60*1.50*1.50 | 1450 |
| SJY0.5-10 | 10 | 500 | 2.12*1.2 | 2.60*1.50*1.55 | 1600 |
| SJY0.8-10 | 10 | 800 | 2.2*1.2 | 2.60*1.50*1.65 | 1800 |
| SJY1-10 | 10 | 1000 | 2.12*1.5 | 2.60*1.95*1.75 | 1930 |
| SJY0.3-12 | 12 | 300 | 2.53*1.5 | 2.95*1.8*1.75 | 2580 |
| SJY0.5-12 | 12 | 500 | 2.6*1.5 | 3.0*1.95*1.8 | 2780 |
| SJY0.8-12 | 12 | 800 | 2.6*1.6 | 3.2*2.10*2.0 | 3600 |
| SJY0.3-14 | 14 | 300 | 2.75*1.5 | 3.25*1.9*2.0 | 2900 |
| SJY0.5-14 | 14 | 300 | 3.0*1.8 | 3.5*2.1*2.0 | 3200 |
| SJY0.3-16 | 16 | 300 | 3.0*1.8 | 3.6*2.1*2.1 | 3500 |
| SJY0.3-18 | 18 | 300 | 3.5*1.8 | 4.01*2.0*2.2 | 4600 |
| SJY0.3-20 | 20 | 300 | 3.6*1.8 | 4.1*2.3*2.3 | 4800 |
★ Platform height: 4m-20m.
★ Loading capacity: 300-1000kg.
★ Anti-slip checkered steel plate of the platform surface.
★ Electric controls, upper and down panels, hydraulic lifting way.
★ Power source options: power wire supply, battery, diesel.
★ Voltage: 380v, 220v, 50hz/60hz, can supply according to client's need.
★ Emergency and overload protection devices.
★ Supply for operation and maintenance manual, hydraulic diagram, electric diagram, good warranty and service.
