LX-12-45
1 Years
1 Years
Spray Booth
CE
Steel
Longxiang
Painting
Cross-flow Type
Diesel
Dry-type
New
12144*6396*4600mm(L*W*H)
12000*4500*4000mm(L*W*H)
3-Folds 3500*3900mm(W*H)
800*2000mm(W*H)
50/75mm EPS
Centrifugal Fan
Diesel/Gas/Electrical Heating
Riello Burner
LED Lighting
White/Orange/Red/Blue
44kw
380V,50Hz,3 Phase
Floor Filter/Pre-Filter/Ceiling Filter
Bus Painting Baking
Spray Booth
longxiang brand
Shipping
12000*4500*4000mm(L*W*H)
China
8419899090
Product Description

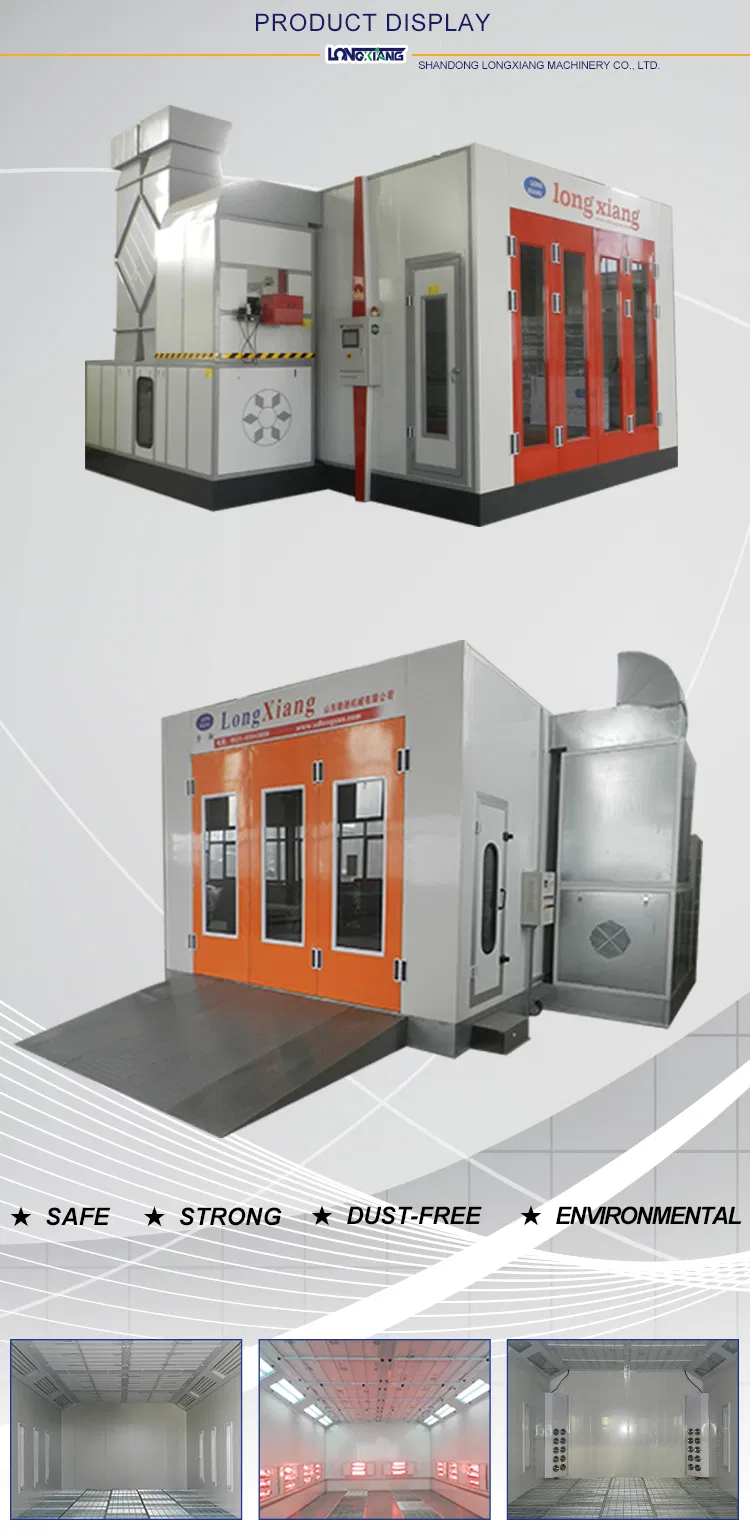

spray paint booth
| Inside Dimension | 12000*4500*4000mm(L*W*H) |
| Outside Dimension | 12144*6396*4600mm(L*W*H) |
| Wall Panel | Thickness:70mm,width:1150mm,with polystyrene(EPS) insulation inside, colour:white |
| Doors | Folding door, 3-folds 3500*3900mm(W*H), galvanized steel cover frame, with polystyrene(EPS) insulation inside, colour:blue, escape door:1 unit, 800*2000mm(W*H), colour:white |
| Basement | Without basement,2 rows of pits in the ground for exhaust air,dimension of each pit is 10350*760mm(L*W),with galvanized grilles made by twisted steel and flat bar above |
| Intake air system | 4*5.5KW double-intake centrifugal fans for intake air,model is YDW4.5S,total air capacity is 65000m³/h |
| Exhaust air system | 2*7.5KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive,model TAE-560H,air capacity is 50000m³/h |
| Damper actuates | Equip pneumatic damper actuates from spraying to baking cycle,manual damper for exhaust air |
| Heating system | 2 units RIELLO RG5S diesel burner,stainless steel heat exchanger. Max. heating productivity:520000Kcal/h.Max.working temperature:80ºC |
| Filter system | Pre-filter,ceiling filter,exhaust fiberglass filter,activated carbon filter |
| Filtering area | 46m2 |
| Lighting system | Ceiling lights:16 units*4pcs=64pcs*36W,with electronic ballasts. Side lights:18 units*4pcs=72pcs*36W,with electronic ballasts |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator,thermostat, power supply switch, emergency stop, amperemeter, voltmeter,hours meter,temperature limit controller,pressure gauge,exhaust reduction voltage motor start |
| Total power | 44KW |
