A mini electric wire hoist is generally divided into stationary and running type, suitable for various
occasions, can lift goods under 2000kg, especially suitable for lifting heavy items from downstairs of
high-rise buildings.
This kind hoists has many features, such as simple structure, easy installation, small and exquisite, and
use single power supply as its electricity. Mini electric hoists have reached the international standard in
terms of production design and make sure of its security when using, using cast iron structure of motor
cooling fin improves the service life.
The lifting speed can reach up to 10 m/min, steel wire rope at the beginning of design can reach up to
12 meters long (lengthening can be customized), in terms of hook, specially designed as the advanced
double Settings, greatly increased the mini electric hoist lifting weight, mini electric hoist can be used on
220V power supply, especially suitable for daily civilian, industrial production line, the freight logistics,
etc.
Product paremeter as belows:
| Model | Hook Type | Voltage(V) | Power(W) | Capacity(kg) | Lifting Speed(m/min.) | Lifting Height(m) | Qty/CTN | Packing Size(cm) | N.W./G.W (kG) |
| PA200 | Single hook | AC220V /230V 50Hz/ 60Hz | 510 | 100 | 10 | 12 | 2 | 39*31*25 | 21/22 |
| Double hook | 200 | 5 | 6 | ||||||
| PA300 | Single hook | 600 | 150 | 10 | 12 | 39*31*25 | 22 | ||
| Double hook | 300 | 5 | 6 | 23 | |||||
| PA400 | Single hook | 980 | 200 | 10 | 12 | 45*34*27.5 | 30.5 | ||
| Double hook | 400 | 5 | 6 | 32.5 | |||||
| PA500 | Single hook | 1000 | 250 | 10 | 12 | 45*34*27.5 | 31 | ||
| Double hook | 500 | 5 | 6 | 33 | |||||
| PA600 | Single hook | 1200 | 300 | 10 | 12 | 45*34*27.5 | 32.6 | ||
| Double hook | 600 | 5 | 6 | 35 | |||||
| PA800 | Single hook | 1300 | 400 | 10 | 12 | 45*34*27.5 | 35 | ||
| Double hook | 800 | 5 | 6 | 37.5 | |||||
| PA1000 | Single hook | 1600 | 500 | 10 | 12 | 1 | 57*26*32 | 30 | |
| Double hook | 1000 | 5 | 6 | 31 |
| Model | PA200/PA300/PA400/PA500/PA600/PA800/PA1000/PA1200 |
| Voltage | 220V/230V 50HZ |
| Motor power | 510W/510W/600/980/1000/1200/1300/1600 |
| Wire rope size | 3.05/3.05/3.05/3.8/4.2/4.5/5.1/5.6mm |
| Motor | 100% pure copper wire. |
| Hook | Anti-rotate type hook with one pulley |
| Controller | With the emergency knob |
| The plug | Customization |

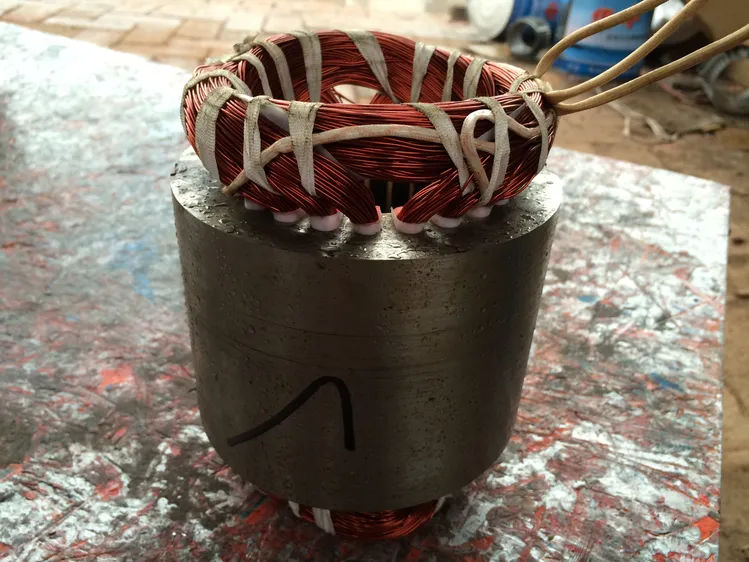

Product detail

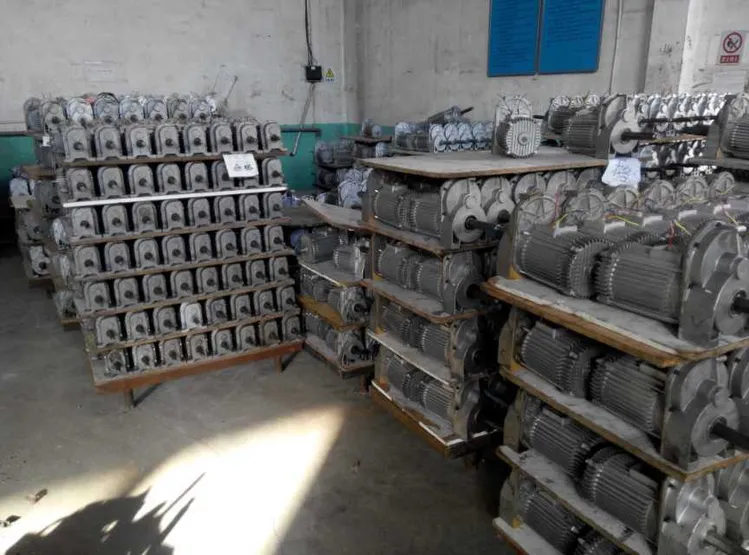

Factory pics as belows:
Baoding Jiazhong Hoisting Machinery Plant main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.
As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.
Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plan the ideal choice for you.
