HL-CK series
1ton~5ton
350~1000mm
1000~1600mm;1300~2000mm
1000mm
Leeda
Wooden Pallet
CE
China
84279000
Product Description
Crane Fork HL- CK series
1. No slings or chains necessary.
2. Crane operator will not need to leave cab of lorry or crane.
3. Forks will remain horizontal when loaded and unloaded.
4. Adjustable fork width.
5. Adjustable height.

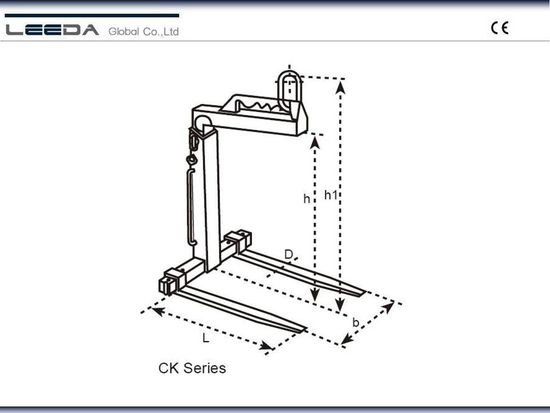

| Model | Work Load Limit WLL (tonne) | Adjustable Fork Width b (mm) | Hook Height h1 (mm) | Effective Height h (mm) | Fork Length L (mm) | Fork Cross D (mm) | Overall Size LxWxH(mm) | Net Weight (kg) |
| HL-CK10 | 1 | 350-900 | 1390-1890 | 1100-1600 | 1000 | 100×30 | 1120×920×1390 | 130 |
| HL-CK20 | 2 | 400-900 | 1640-2340 | 1300-2000 | 1000 | 120×40 | 1140×920×1640 | 200 |
| HL-CK30 | 3 | 450-900 | 1670-2370 | 1300-2000 | 1000 | 120×50 | 1140×920×1670 | 250 |
| HL-CK50 | 5 | 530-1000 | 1700-2400 | 1300-2000 | 1000 | 150×60 | 1160×1020×1700 | 370 |
