Features:
Max working pressure 700bar.
Min installation space 10mm.
Capacity is 16 ton.
Every step can beer full load.
Vertical lifting.
Unique chain lock wedge shape desigh.
Single acting, spring return.
Including safety block SB-2.

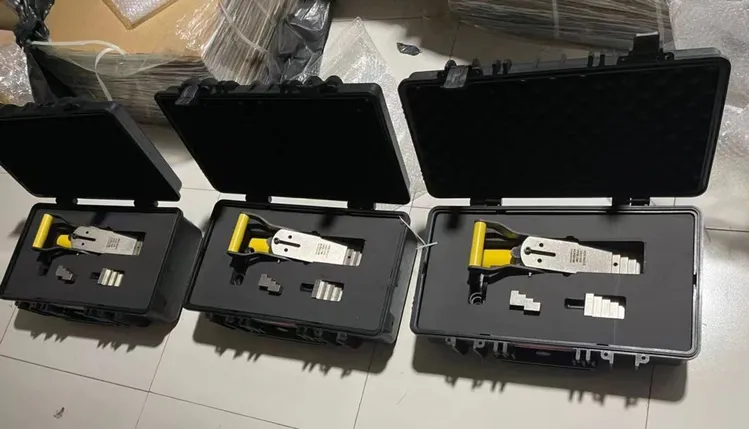

Product Show
| Model no | Max lifting capacity (ton) | Min width (mm) | Stroke (mm) | Max separate distance (mm) | Oil capacity (cm³) | Weight (kgs) |
| LW-16 | 16 | 10 | 21 | 81 | 78 | 9 |
| HYDRAULIC HAND PUMP | |
| Model | KSP-392 |
| Pump Type | Single acting and two speed |
| Oil Capacity | 901ml |
| Max. Working Pressure | 700bar |
| Weight | 4.0kg |
| AIR HYDRAULIC FOOT PUMP | |
| Model | KS-160 |
| Pump Type | Single acting and two speed |
| Oil Capacity | 1600ml |
| Max. Working Pressure | 700bar |
| Weight | 9kg |
| HYDRAULIC FOOT PUMP | |
| Model | KSP-392FP |
| Pump Type | Single acting and two speed |
| Oil Capacity | 901ml |
| Max. Working Pressure | 700bar |
| Weight | 15kg |
Q1: How to contact sales?
A1: MOQ is 1 piece.
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express (DHL, FEDEX, UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
