Fy260
Video Technical Support, Online Support, Spare PAR
1 Year
ISO9001/CE
New
DC Motor
140-305mm
260m
Diamond Bit/ Cone Bit/ Drag Bit
Impactor
Crawler
4000*1850*2300mm
17-31 M3/Min
45-70 Rpm
1. 5 M,2.0 M,3m
Low Maintenance Cost
70kw
76mm,89mm
Feida
Carton
4000*1750*2450mm
Zhejiang, China

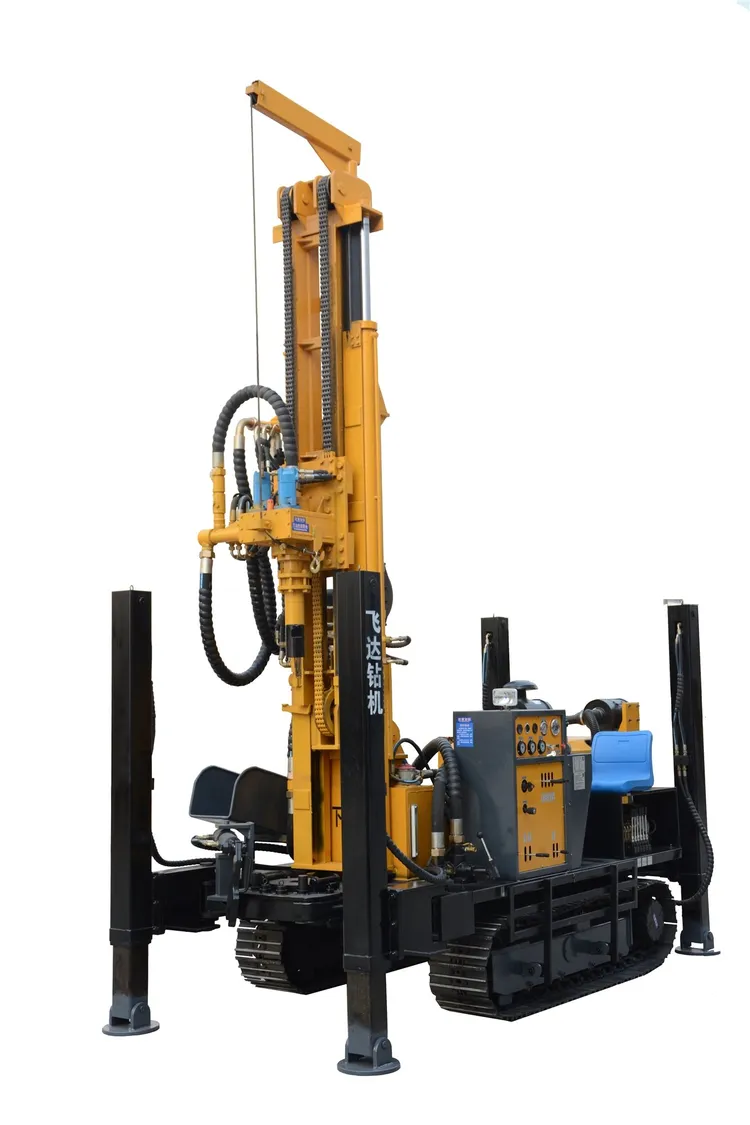

Product Description
Advantages
1. deep drilling
2. fast footage
3. flexible movement
4. suitable for industrial and civil drilling
5. geothermal drilling, with large diameter
| (T) The weight | 6.5 | (mm) Drill pipe diameter | Φ76 Φ89 |
| (mm) The hole diameter | 140-305 | (m) Drill pipe length | 1.5m 2.0m 3.0m |
| (m) Drilling depth | 260 | (T) Rig lifting force | 15 |
| (m) One-time advance length | 3.3 | (m/min) Rapid rise speed | 24 |
| (km/h) Walking speed | 2.5 | (m/min) Fast feeding speed | 28 |
| (Max.) Climbing angles | 30 | (m) Width of loading | 2.73 |
| (kw) Equipped capacitor | 70 | (T) Hoisting force of winch | 1.5 |
| (MPA) Using air pressure | 1.7-3.0 | (N.m) Swing torque | 4000-5300 |
| (m³/min) Air consumption | 17-31 | (mm) Dimension | 4000×1850×2300 |
| (rpm) Swing speed | 45-70 | Equipped with hammer | Medium and high wind pressure series |
| (m/h) The penetration efficiency | 10-35 | (m) High leg stroke | 1.4 |
The engine brand | Xichai engine | ||
