XCT55
Overseas Service Center Available
0
CE, ISO9001: 2000
Used
>40m
55ton
Six
Six
Truck Crane
55t
Container Usage, Mineral Area Usage
Under Slewing Cranes
Wire Rope
Single Girder
Hydraulic
Wheel
Overall Rapid Disassembly
XCMG
Comply with Export Packaging Requirements
ISO
Xuzhou, Jiangsu, China
87051022
Product Description

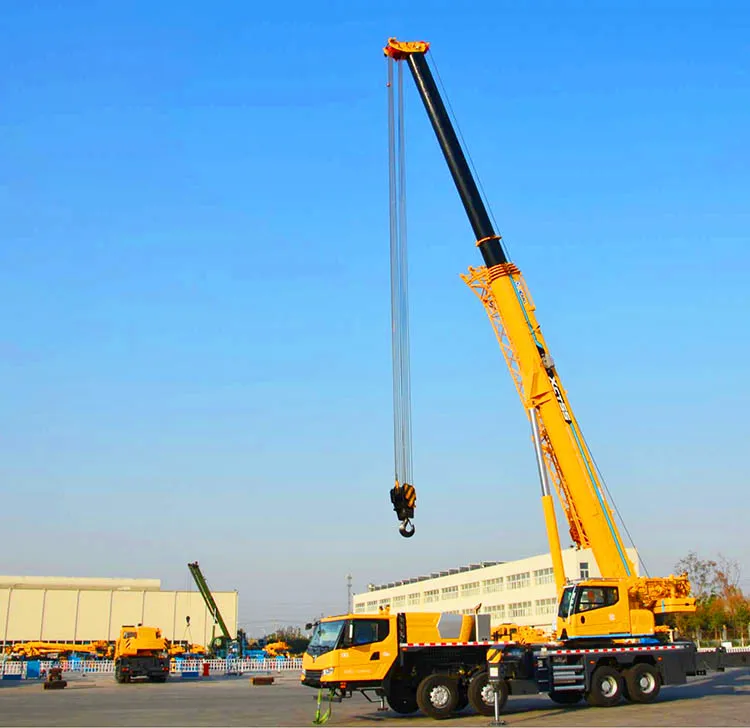

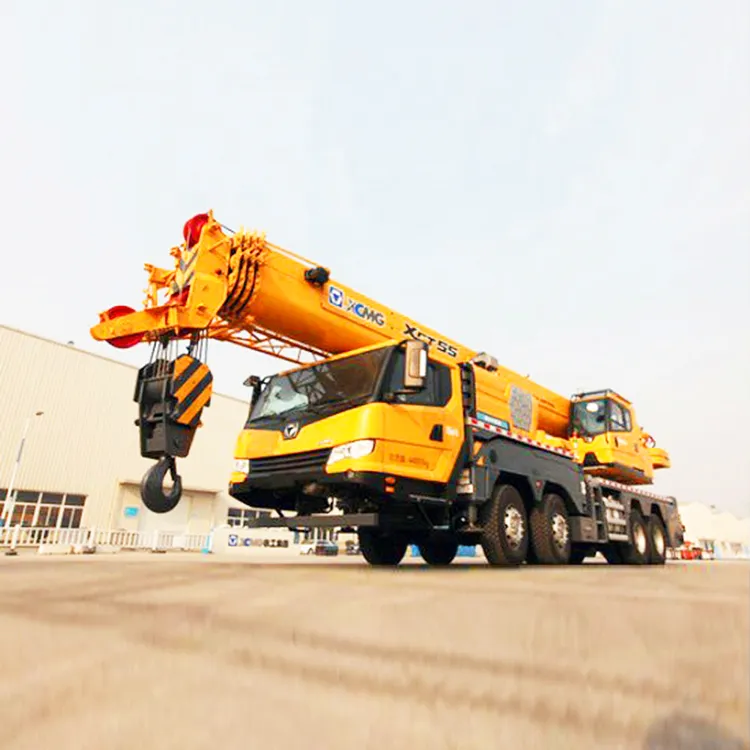

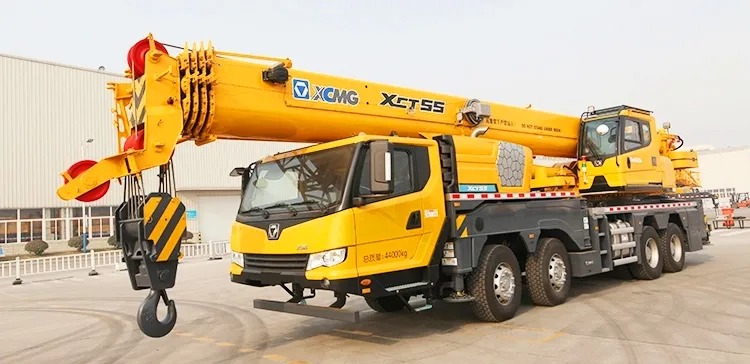

XCMG Official Manufacturer XCT55 55ton Used Truck Crane
1, the original new single-cylinder plug system to achieve six boom, arm length to 50m, lifting performance leading industry best level of more than 20% Low - speed high - torque power system. To achieve the best combination of the best power and the best economy. Maximum climbing capacity of 45%, the maximum speed 90km / h, the industry's highest, 100 km fuel consumption 35L
2, the new proportion of electricity pump control energy-saving hydraulic system, operating fuel consumption is lower, better micro-movement. The average fuel consumption of the integrated operating conditions is less than 15%Freak and ride comfort increased by 20%., To achieve precision lifting.
3, intelligent boom technology, to achieve automatic planning conditions. , Winch with a variable amplitude compensation, the international level of intelligent leadership.
4, to achieve the level of the car level Xugong man-machine interaction system, to provide a comfortable experience in the operation of the GIGABYTE.
5, Xugong G-generation of new appearance modeling, user-friendly design, operation more comfortable, convenient, standard remodeling, all-around lead Industry first 6 knuckles 50 m long arm products, establish a new height of the industry.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
| Item | XCT55L6 | Unit |
| Overall length | 13650 | (mm) |
| Overall width | 2540 | (mm) |
| Overall height | 3770 | (mm) |
| Wheelbase | 1470+3700+1350 | (mm) |
| Track | 2124/2124/1834/1834 | (mm) |
| Dead weight in travel state | 44000 | (kg) |
| Axle load | 9000+9000+13000×2 | (kg) |
| Engine rated output | 268/1900,251/1900 | (kw/(r/min)) |
| Carrier engine rated torque | 1800/1000-1400,1550/1300 | (N.m/(r/min)) |
| speed | 90 | (km/h) |
| Minimum steady speed | 2.5~3 | (km/h) |
| Min. turning diameter | 24 | (m) |
| Max. grade ability | 45 | (%) |
| Min. ground clearance | 303.5 | (mm) |
| Approach angle | 16 | (°) |
| Departure angle | 13 | (°) |
| Braking distance | ≤10 | (m) |
| Fuel consumption of per 100km | 35 | (L) |
| Max. total rated lifting load | 55 | (t) |
| Min. rated working radius | 3 | (m) |
| Turing radius at swing table tall | 2058 | (kN·m) |
| Base boom max. load moment | 3830 | (mm) |
| Max.lifting height | ||
| Base boom | 10.7 | (m) |
| Full-extend boom | 49.1 | (m) |
| Full-extend boom+ Jib | 63.8 | (m) |
| BOOM LENGTH | ||
| Base boom | 11.2 | (m) |
| Full-extend boom | 50 | (m) |
| Full-extend boom+ Jib | 66 | - |
| Max. slewing speed | 2 | (r/min) |
