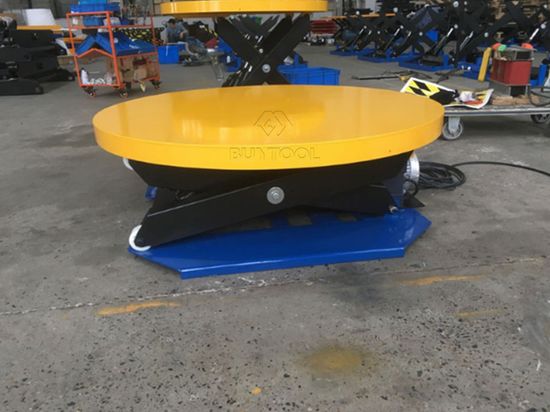

Electric Circular Rotating Platform Assembly line workbench
Introducing the Electric Circular Rotating Table Platform, brought to you by Wuxi Buytool Industrial Equipment Co., Ltd. This innovative turnable lifting table is designed to meet the needs of various industries, providing exceptional functionality and convenience.
- 360 degree rotating closed platform, allowing for easy access from any angle.
- Effortless mobility with the ability to be moved by a forklift truck.
- Equipped with an internal power pack that includes a relief valve to prevent overloading and a compensated flow valve for controlled lowering speed.
- Heavy-duty cylinders with a drainage system and check valve, ensuring the lift table remains stable even in the event of a hose burst.
- Includes a foot pedal controller for convenient operation, with an optional hand controller available.
- Optional single-phase power supply for added flexibility.
- Optional built-out power unit for enhanced convenience.
Experience the efficiency and versatility of the Electric Circular Rotating Table Platform. Whether you need to rotate, lift, or transport heavy loads, this lifting table is the perfect solution. Trust Wuxi Buytool Industrial Equipment Co., Ltd. to deliver reliable and high-quality products for your business needs.
| Model | BTP360-1000E | BTP360-2000E | MJ-T1000E | MJ-T2000E | |
| Capacity | (kg) | 1000 | 2000 | 1000 | 2000 |
| Type | Electric Lifting & Manual Rotation | Electric Lifting & Electric Rotation | |||
| Controller | Foot pedal controller(Hand controller as optional) | Hand controller | |||
| Diameter of Platform | (mm) | 1110 | |||
| Min. Platform Height | (mm) | 300 | 300 | 325 | 340 |
| Max. Platform Height | (mm) | 710 | |||
| Basement Size | (mm) | 930x920 | |||
| Lift Time | Second | 15-20 | 20-25 | 15-20 | 20-25 |
| Rotating Motor | \ | \ | 0.16KW | 0.3KW | |
| Net Weight | (kg) | 163 | 175 | 178 | 190 |
Design novel support customization:
Q: What about the quality of the products?
A: Our products are CE approved, ensuring their compliance with international standards. To guarantee their quality, we follow a rigorous inspection process:
- Raw material inspection in accordance with ISO9001.
- Strict inspection throughout the entire production process.
- Load limit test conducted during assembly.
- 100% strict inspection of products before shipment.
- Optional inspection by the buyer, if needed.
Q: How long is the quality guarantee?
A: All of our products come with a one-year warranty, giving you peace of mind.
Q: What's the lead time?
A: The standard lead time is 30 days. However, please note the following variations:
- If you order more than 5 items mixed in one container, the lead time will be 45 days.
- If you order one item in one container, the lead time will be 20 days.
Thank you for considering our products. If you have any further questions or need assistance, please don't hesitate to contact
