LHY9404GHY
Semi-Trailer
40t
ISO9001, CCC, SGS/BV/TUV
1310
1840
Medium Duty
Mechanical Suspension
Circle
3
12
Not Self-dumping
ABS Anti-lock Braking System
Steel
New
3
BPW/Fuwa/Hj Famouse Brand Optional
2"/3.5'' Bolt in Type
5mm
6mm
4mm
China Famouse Brand
Comply with Customer's Requirement
Jost Brand Two-Speed, Manual Operation
40cbm
HYD
Spray Wax and by Frame Container
40cbm
China Shandong
8716900000
Product Description
Huayu 3 Axle 40/45cbm Oil Tanker/Tank Semi Truck Trailer Price
| OIL TANK SEMI TRAILER | |
| Shape | Monoblock cylinder |
| Tare weight | 9000KG |
| Color | Customized |
| Volume | 40m³ customized |
| Tank body | Q235/5mm steel |
| End plate | Q235A/6mm steel sheet |
| Axle | 2/3/4 axle FUWA/BPW/HJ brand optional 13T-16T |
| Tire | 11.00R20/12.00R20/11R22.5/12R22.5 triangle, linglong, double star brand optional optional |
| Wheel rim | 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional |
| Suspension | Mechanical suspension or air suspension |
| Leaf spring | 10 pcs*90*13mm |
| Manhole cover | 500mm manhole cover 2 sets with 2 breather value |
| Discharge valve | 2-4 sets of $ 100mm discharge values |
| Discharge pipe | 4'' rubber hose, 2pcs, 6m long |
| Kingpin | JOST 2"/3.5" bolt-in king pin |
| Landing gear | JOST two-speed, manual operating, heavy duty landing gear |
| Bottom value | 1-2 sets of bottom value |
| Outside sheet | 1.2mm steel sheet |
| Compartment | Optional upon choice |
| Braking system | WABCO RE6 relay value, T30/30 spring brake chamber; 40L air tanks |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side lights, two rear lights |
| Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
Detailed Photoes of Oil/Fuel Tank Semi Trailer
Delivery
1. The whole trailer will be waxed before shipment, it can prevent our trailers suffering from seawater corrosion during the shipping.
2. We will transport our trailers by bulk cargo carrier, RO-RO ship or 40/45 HQ
Competitive advantages:
1. It's our own factory, advanced equipment and rich experienced workers are applied during the whole producing process to ensure the quality of semi trailers.
2. Optional trailer sizes and styles are available.
3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.
4. Small order quantity can be accepted. MOQ is 1 set.
5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.
Our services
1. We have more than 20 years of experience and a strong team of engineers, we are manufacturer, we could design the product according to your special requirements.
2. Strict quality inspection. For each trailer, we will do the testing and inspect the quality.
3. We have good after-sales service.

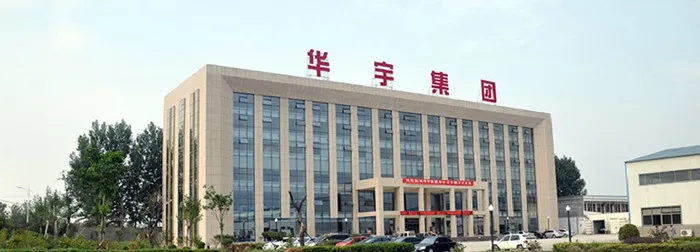

Company Information
Shandong Liangshan Huayu Group Auto Manufactory Co .,Ltd. is an automobile manufacture enterprise approved by the former National Economics and Trade Committee, with "HuaYuDa Brand" automobile products being catalogued into the national automobile product summary announcement. The company engaged in designing, researching manufacturing and selling. The company covers above 800 acres, with total assets of RMB 560,000,000.00 Yuan and factory building areas of 236,000 square meters. Now there are more than 2000 staff, therein 180 senior technical engineers. The company mainly specializing in manufacturing special vehicles such as refitting vehicles, semi trailers, tippers, and oil tank trucks, bulk cement tank, concrete mixer trucks and special operations vehicle, with annual yield of above 10000 sets. The company equips the first-class CNC cutting, advanced equipment of welding and stamping, and excellent quality guarantee system, modern testing means and high qualified specialist technicians. Our company is a special purpose motor vehicle manufacturing enterprise which has large scale of production, perfect Quality Management System in domestic. Products sold throughout the country, some products are exported to Russia, France, southeast Asia, Africa and so on more than 20 countries.
FAQ
MOQ: 1 set
Transport: By bulk cargo carrier, ro-ro or 40/45 HQ
Delivery detail: 25 workdays after we received 30% of contract value T/T down payment, T/T with 30% deposit, and 70% of balance will be paid before delivery
You are welcome to visit our company at any time! We will pick you up at the airport! :)
