LMC960Z30L00
Semi-Trailer
50T
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
1310mm
1840mm
Medium Duty
Mechanical Suspension
Van-type
3
12
Self-dumping
ABS Anti-lock Braking System
Steel
New
Fuwa 16t by Need
12r/22.5
2'/3.5' Bolting Type
Jost
600mm/800mm
LED
6mm Thick Flat Plate
High Grade Polyurethane Paint
CHYG
by Bulk Ship / Container Ship
9000*2550*3650
China
87163990
Product Description

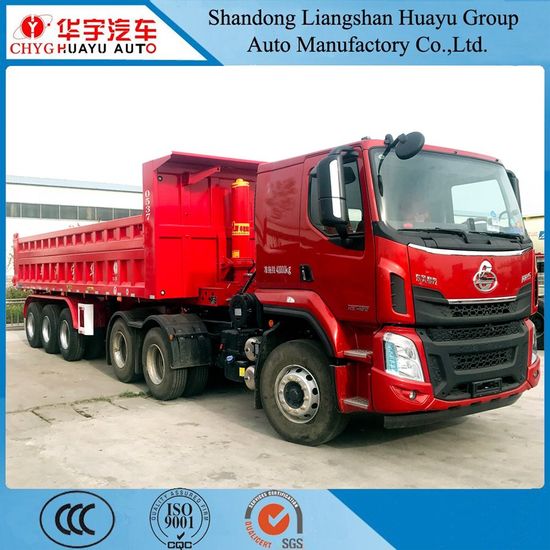

CHYG REAR DUMP SEMI TRAILER
We are the top professional semi-trailer supplier,We can provide you with better products and more favorable prices.
Product description and specification
3 axles 35/40 Cube dump Truck/Tipper/50Ton Tipper Trailer/Semi-Trailer for transportation of stone / sand/construction waste etc.
| Product Description | ||||||
| External Dimension | 9000mm×2550mm×3650mm | |||||
| Cargo Dimensions | 7950mm×2420mm×600mm | |||||
| Main Beam | Heavy duty and extra durability I beam;500mm height; opting for high tensile steel Q345,welding by automatic submerged-arc processes; Top flange 18mm,width 140mm;middle flange 10mm; bottom flange 20mm,width 140mm | |||||
| Side Beam | 16# channel steel(U-steel) | |||||
| Cross Beam | 10# channel steel(U-steel) | |||||
| Side Wall | 4mm T700 material ;height 600mm, | |||||
| Floor | flat plate ,thickness 6mm,T700 material | |||||
| Axle | Number | 3 | Brand | FUWA | Capacity | 16T |
| Suspension | Mechanical suspension | |||||
| Leaf Spring | 90mm×13mm×10 | |||||
| Tire | 12R22.5 | |||||
| Wheel rim | 8.25-22.5,9.0-22.5 steel wheel rim optional upon choice | |||||
| King pin | 2'/3.5' bolt-in type | |||||
| Landing gear | JOST E100 | |||||
| Self-dumping | HYVA Cylinder | |||||
| Braking System | WABCO RE6 relay valve; T30/30 spring brake chamber ;40L air tanks | |||||
| Electrical System | Voltage 24V, receptacle 7 ways (7 wire hamess); LED light, one set 6-core standard cable. | |||||
| Painting | Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2 coats of final paint | |||||
| Accessories | One standard tool box | |||||
Another style
Solid body structure, multiple reinforcement
another color
PRODUCT
. The main components of the trailer are processed by advanced equipment, and the Main beam is welded by automatic submerged arc welding machine. All components are sandblasted to improve the paint adhesion.
. The chassis is welded with the best structure to improve the ability of handling goods and increase the effective load
. Heavy hydraulic cylinder, larger diameter, stronger lifting capacity, higher height, more stable lifting.
. Four overturned supports can make the rear end load more evenly during unloading, and it is not easy to damage the trailer
. Use Fuwa and BPW axles of famous brands. It has high performance and reliable use.
. Four overturned supports can make the rear end load more evenly during unloading, and it is not easy to damage the trailer
. Use Fuwa and BPW axles of famous brands. It has high performance and reliable use.
Process introduction
A; Automatic plasma cutting
B: Laser automatic cutting
C: Main beam butt forming
D: Main beam submerged arc welding fixation
B: Laser automatic cutting
C: Main beam butt forming
D: Main beam submerged arc welding fixation
Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase material.
· Use Domestic first-class production equipment. Main beam is using Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.
· We can provide all the models you need and support customization. If you have any questions, please leave your inquiry.
· Choose Regular manufacturers purchase material.
· Use Domestic first-class production equipment. Main beam is using Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.
· We can provide all the models you need and support customization. If you have any questions, please leave your inquiry.
