LMC95C3L0821
Semi-Trailer
90t
ECE, GCC, CE, ISO9001, CCC, ISO/TS16949
1310
1840
Heavy Duty
Mechanical Suspension
Flatbed
3 Axle
12PCS
Self-dumping
No ABS Anti-lock Braking System
Steel
New
12r22.5
Zy Axle
8units
Rigid Suspension
10/13/90
Q235B
16# Channel Steel
90#
CHYG
Containerization
size: 11000*2500*3500mm
Liangshan, China
8716400000
Product Description
3 Axle 90T hydraulic dump side turning semi - trailer

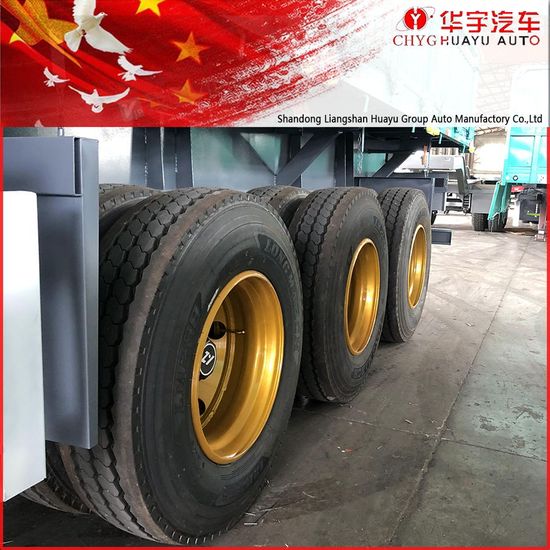

The vehicle images:
1. This series dump trailer,dumper trailer,dumping trailer ,tipping trailer,tipper trailer,tip semi trailers, are mainly used in heavy duty transportation for c bulk cargo transporting such as sand,grain,stone or fruit.Also the side wall of them are detachable.So you we can use it transport standard containers.
2. The capacity is for 10tons-200tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.
The production workshop:
1.Sandblasting room
2.90 degree rollover equipment
3.Girder docking
4.Laser CNC machine tool
The production workshop:
Quality Control:
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- We provide out-standing quality assurance.
4- No any quality complaints for 9 years.
Perfect Service & Support:
Above photos shall not be reproduced without permission, but found will be liable!
| Product | Dump/Tipper trailer TIPPING TRAILER | | |||
| Brand Name | CHYG | ||||
| Model Number | LMC95C3L0821 | ||||
| Place of Origin | Liang shan,china | ||||
| Color | Any color will be available | ||||
| Manufacturer | Shandong Liangshan Huayu Automobile Manufacturing Co. LTD | ||||
| Product Specifications | |||||
| Outside Dimensions (L*W*H) | 11000*2500*3500 (mm) | ||||
| Rated Load | 90Ton | ||||
| Tare Weight | 12 TONS | ||||
| Wheel Base | 8480+1310 (mm) | ||||
| Hydraulic cylinder | haiwo or customized | ||||
| Running Gear | |||||
| Tires | specification | 12R22.5 | |||
| No. of tires | 8,12,16 | ||||
| Brand | Double coin,Bridge stone,Tri-angle or Michelin | ||||
| Spare tire carriers | 2 or 1 including a riser. | ||||
| Axles | Brand : | ZY axle | |||
| No. of axles: | 3 | ||||
| Axle-load | 13000kgs | ||||
| Wheel rim | 8units | ||||
| Suspension | Rigid suspension | ||||
| Pieces of leaf-spring | 10/10/10 | ||||
| Brakes | brand | TKL brand | |||
| Brake chamber | 4 double chamber | ||||
| System | Dual line braking system /ABS | ||||
| Under Frame | |||||
| Departure Angle | 14 | ||||
| Front/Rear Overhang | 1670mm | ||||
| Main Beam | material | I beam ,Q345B , automatic submerged arc welded | |||
| specification | Height is 500mm,upper plate is14mm,lower plate is 16mm,middle is 10mm | ||||
| Cross Beam material | Q235B | ||||
| Side beam | 16# channel steel | ||||
| Plate form | Steel Sheet 5mm thickness or diamond plate | ||||
| King Pin | 90# | ||||
| Landing gear | Single side operation or double side operation, Static capacity 28Ton | ||||
| Accessory | One tooling box with a set of standard trailer tool | ||||
| Electrical | |||||
| Voltage | 24V | ||||
| Receptacle | 7 ways (7 wire harness) | ||||
| Lights | Front corner marker lamp :red ;reflector lamp :white | ||||
| Side marker :orange | |||||
| Rear lamp :red; rear reflector :white; turn single lamp :orange | |||||
| Other | |||||
| Usage | The height of the cargo's carrying platform is 800-1290mm, is suitable For the transportation of the large and non-dismantled objects. | ||||
| Other Specifications | The max height of the rear guard from ground is 420mm | ||||
| Other Descriptions | The whole body of tipping trailers adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flange plates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing. | ||||
| Painting ,marking and side guard can according to the customer's requirement | |||||
The vehicle images:
Photo of vehicle parts:
Product Advantages :
Product Advantages :
1.The steel material f the superstructure is completely upgraded to mangannese steel and 610L steel;
2.Widened and thickened pillars and ribs;
3.The longitudinal beams of the frame sufficiently utilized the height;
4.Wide tail+middle balance stand structure;
5.Powerful pump and large pipes of hydraulic system;
6.Ultra-large cast steel lock hook+manual hook of the rear body;
7.The thickened channel steel of rear body+full welds;
8.Safety,energy-saving,high efficiency,elegance,practical and environment-friendly;
9.The subframe adopts retangular tube longitudinal beams;
10.The tilting seat adopts enlarged and thickened cast steel part to realize stable and smooth lifting.
2.Widened and thickened pillars and ribs;
3.The longitudinal beams of the frame sufficiently utilized the height;
4.Wide tail+middle balance stand structure;
5.Powerful pump and large pipes of hydraulic system;
6.Ultra-large cast steel lock hook+manual hook of the rear body;
7.The thickened channel steel of rear body+full welds;
8.Safety,energy-saving,high efficiency,elegance,practical and environment-friendly;
9.The subframe adopts retangular tube longitudinal beams;
10.The tilting seat adopts enlarged and thickened cast steel part to realize stable and smooth lifting.
1. This series dump trailer,dumper trailer,dumping trailer ,tipping trailer,tipper trailer,tip semi trailers, are mainly used in heavy duty transportation for c bulk cargo transporting such as sand,grain,stone or fruit.Also the side wall of them are detachable.So you we can use it transport standard containers.
2. The capacity is for 10tons-200tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.
The production workshop:
1.Sandblasting room
2.90 degree rollover equipment
3.Girder docking
4.Laser CNC machine tool
The production workshop:
Quality Control:
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- We provide out-standing quality assurance.
4- No any quality complaints for 9 years.
Perfect Service & Support:
1-Whenever reliability, safety and economic is needed, there is a a solution. CHYG provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 5 days.
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing.
5- Considerate after-sales service & product maintenance.
Feel free to contact and looking forward to your visiting factory.
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^2- With a full range of trailer spate parts support, spare parts supplying within 5 days.
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing.
5- Considerate after-sales service & product maintenance.
Feel free to contact and looking forward to your visiting factory.
