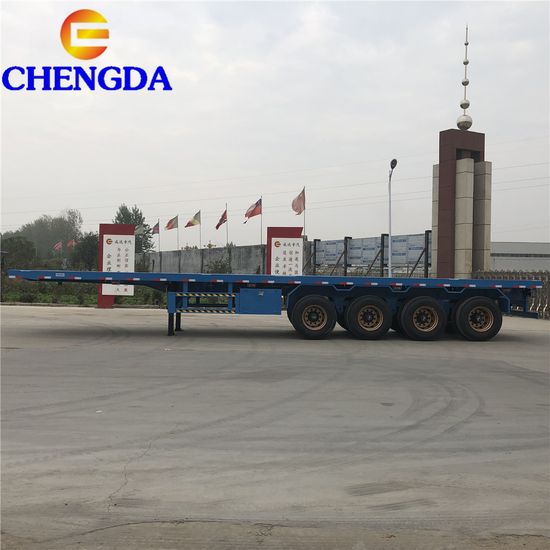

Shandong Chengda 2/3/4 Axle Flatbed Semi Trailer/Semitrailer/Container Trailer
Main Dimensions | |
Trailer Model | 3 Axle flatbed Container Semi Trailer |
Function | Carry 40ft or 2*20ft container or other stuff |
Overall Dimension (Lx W x H)(mm) | 12500mm*2500mm*1600mm |
Loading Weight( KG) | 40000kg |
Total Weight(KG) | 46350kg |
Axle Brand | 3*13TON Axle FUWA Brand |
Axle Number | Three |
Wheelbase(mm) | 7450+1310+1310 |
Suspension system | Mechanical Leaf Spring Suspension |
Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
Side beam | Q235 16# channel steel |
Platform plate | 3mm Diamond plate |
Container Twist Locker | 12pcs container lock |
Tire Type and quantity | 12R22.5 12units |
Rim | 9.00-22.5 |
Traction Pin | 2" or 3.5" |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Standard |
Landing Gear | 28ton single action supporting legs |
Brake system | Dual Line braking system |
Brake air chamber | Six double chamber |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Shipping by Container
For the flatbed semi trailer cut the rear part then put inside 40ftHQ container which can save a lot of freight, this method is very popular for transport the flatbed trailer but when you receive the trailer you need to welded them together so if you choose this method need to confirm whether you can arrange welded them after the container arrived.
- Reply your inquiry in 12 working hours;
- Experienced staffs answer all your questions;
- Customer's design is available for certain products(OEM);
- Spare parts for all types of engine machinery with reasonable price;
- Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
1. How do you transport the semi trailers?
We transport the semi trailers by bulk,container or ro to ro. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by Chengda group,
every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
