ZCZ9360XXYL
Semi-Trailer
ISO9001, CCC, ISO/TS16949
Cross Arm Type
Van-type
3
12
Not Self-dumping
ABS Anti-lock Braking System
New
500
8/10
δ5
14# Profile Steel
High Strengh Steel δ1.5
W-Shaped Throughout Beam
Seven or Five Hinged Doors
One 1 M Tookit
4*10 Plate Type I
50mm
CHHGC
Sea Water-Proof Paint
28T
China
8716399000
Product Description

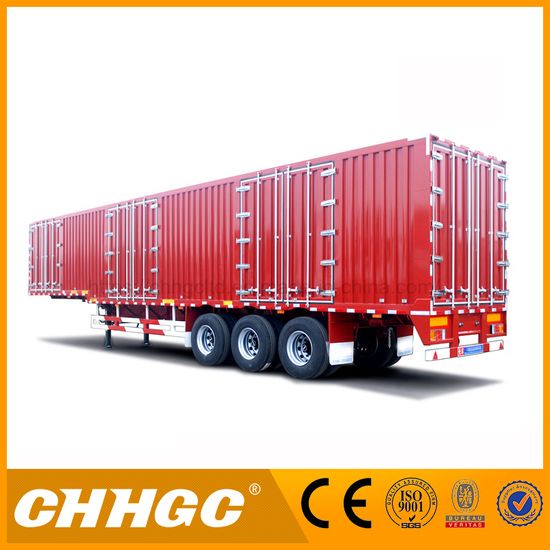

CCC ISO Approved 3 axles 30T box/ Van Trailer for Sale
**The van box: wide vertical van plate, double-door with block bar
**Frame:Main beam: 500mm(height)
**upper/down wing plates: 16/20mm (thickness)
**Middle plate: 10mm (thickness)
**side beam: 20# channel Steel
**platform plate: 4mm
**throughout beam: 14# channel Steel
**traction pin: 90#
**landing leg: 28-tons single-acting
**tool box: 2.5m/ 1 piece
**three pair of double-door on left and right side, three block bars on each door.
**one pair of double-door on rear side, two block bars on each door.
**cross braces in the van
**gooseneck for option
**suspension: 16Tons
**tire: 12.00R20 /12pieces
**wheel rim: 8.5/ 12pieces
**stored seperated pump: 2 pieces
**4s/2M ABS(made in china)
**Spare tyre carrier: 2 pieces
Light type Features
With Introduction of international advanced design concept,
Combination situation and environment of transport and charging by weight.
analysis by FEA system (finite element analysis)
The light - type semi trailer is built to meet the maximum extent load capacity and creat maximum profit.
1. Convex-concave throughout beam: National patented product(national patent number: 200610062813.9), featuring light dead weight and high strength.
2. High tensile steel materials: the longitudinal beams, side beams, and critical portions adopt domestic high strenghth low alloy steel meeting advancd technical standard.
3. High Bearing capacity: Through the adoption of high strength steel and structural innovation, the critical portions maintain the same bearing capacity while reducing the dead weight.
4. Low bearing surface: The optional small small 4-longitudinal beam structure effectively reduces the height of bearing surface, lowers the gravity center of cargo, and improves the transport safety.
5. Characteristic body: They body is pressed byspecial mould from high strength cold rolled steel palte to reduce the body deformation under full load, featuring the advantages of high strength and light weight.
6. Door opertion mode: The body adopts pull-type hinged doors to meet the loading and unloading by excavator and more effectively improve the loading/ unloading efficiency of the cargo.
Remarks: The maximum limit length of this model shall be controlled within 11m as far as possible
Remark:
The above trailer is just one product we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can supply the customer any type trailer he need because of our 30 years experiences of producing trailer.
| Item number | ZCZ9360XXYL | Batch | 240 |
| Trade Mark | CIMC | Product name | Van semi trailer |
| Rated Weight | 28000 | Total Weight | 36000 |
| Curb Weight | 8000 | Fuel Type | |
| Emission standard | Number of the Axles | 3 | |
| Wheelbase | 6190+1310+1310 | Axle load | -/24000(three axles installed side by side) |
| The spring number | -/7/7/7,-/10/10/10 | Tyre Number | 12 |
| Tyre Size | 11.00-20 12PR, | Approach/Departure Angle | -/16 |
| 11.00R20 12PR, | |||
| 12R22.5 12PR | |||
| Front/Rear overhang(mm) | -/2150 | Front tread | - |
| Rear wheel base | 1840/1840/1840 | ||
| The overall length | 12060 | The overall width | 2500 |
| The overall Height | 392,036,203,420 | The van length | 11800 |
| The van width | 24,002,350 | The van height | 230,020,001,800 |
| Max payload of the saddle | 12000 | The company | HENAN HAIHENG IMPORT AND EXPORT CO.,LTD |
3 typical trailers Configuration tables | |||
| light coal semi trailer | standard coal semi trailer | heavy coal semi trailer | |
| Height of longitudinal beam | 500 | 500 | 500 |
| Thickness of upper/lower wing plates | 8/10 | 14/14 | 16/20 |
| Longitudinal beam web | 85 | 86 | δ5 |
| specification of side beam | 14# profile steel | 16# profile steel | 20# light channel steel |
| Thickness of baseplate(flat-bed) | high strengh steel δ1.5 | δ3 | δ4 |
| Specification of throughout beam | W-shaped throughout beam | Rectangular tube | 14# light channel steel |
| Door operation mode | seven or five hinged doors | 13m seven hinged door 11m five hinged door | four hinged doors |
| Specification and number of tookit | one 1 m tookit | one 1 m tookit | one 2.5m toolkit |
| specification of leaf spring | 4*10 plate type I | 10-plate type II | 12-plate type II |
| diameter of balance arm pin | 500mm | 50mm | 75mm |
