HH9388A
1 Year
1 Year
Semi-Trailer
40t
ISO9001, CCC, ISO/TS16949
7000-8000mm
1820mm
Light Duty
Multi-link Type
Flatbed Semi Tailer with Side Wall
3
12
Not Self-dumping
ABS Anti-lock Braking System
Carbon Steel
New
11.00r20 14pr/12r22.5 14pr
Jost 50#
One Standard Piece
13t/16t Fuwa/BPW Brand or The Others
According to Customer
Leaf Spring Suspension
Wabco
Direct From Factory
Jost Brand D200t or Chinabrand 28tons
for Choose
CHHGC
Whole Trailer Waxed, Sea Water-Proof Paint
13000*2500*2900mm
Henan, China
8716399000
Product Description
New Design Light Duty Materials Fabricated 30T-100T Side Wall Dropside Bulk Lorry Semi Trailer
Parameters
*The main components of the warranty period
Characteristics
1. Convex-concave throughout beam: National patented product(national patent number: 200610062813.9), featuring light dead weight and high strength.
2. Light dead weight: On the basis of light semi-trailer. The critical parts are further optimized to ensure weight of whole vehicle and realize "Lightweight" of vehicle.
3. Low bearing surface: The optional small gooseneck and small 4-longitudinal beam structure effectively reduces the height of bearing surface, lowers the gravity center, and improves the transport safety.
*Advantages for our semi-trailers
**Scientific design and Quality assurance
The design is performed in accordance with the actual parameters of the tractor and trailer in the design process,ensuring to reach best level of whole vehicle transport performance.
**Characteristic overall camber structure of longitudinal beams ensures lifetime downward bending-free of crossbeams
As per mechanical analysis,the unique overall camber structure of the longitudinal beam is adopted to ensure lifetime downward dending-free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic value for the users.
**Quality steel material and OEM parts ensure quality and condition of products.
The raw materials and parts of the semi-trailer adopt the domestic and foreign renowned brand products,of which the critical structural parts are specially supplied by the casting company,the china's biggest special vehicle parts supplier.
**Characteristic suspension system eliminates uneven and abnormal wear of tires
The characteristic new suspension is adopted,ensuring balanced load transmission among the shafts and eliminating any abnormal tire wear.The snap rings for shafts are of integrally cast parts,of which the lower snap rings are patented products to better guarantee the stability and safety of the vehicle.
**Special steel and characteristic railing structure feature deformation-free and lighter dead weight.
All railing of semi-trailer are welded from high strength square steel tubes,featuring light,high strength,high deformation resistance,and deformation-free of railing parts.
Our Products
Packaging & Delivery

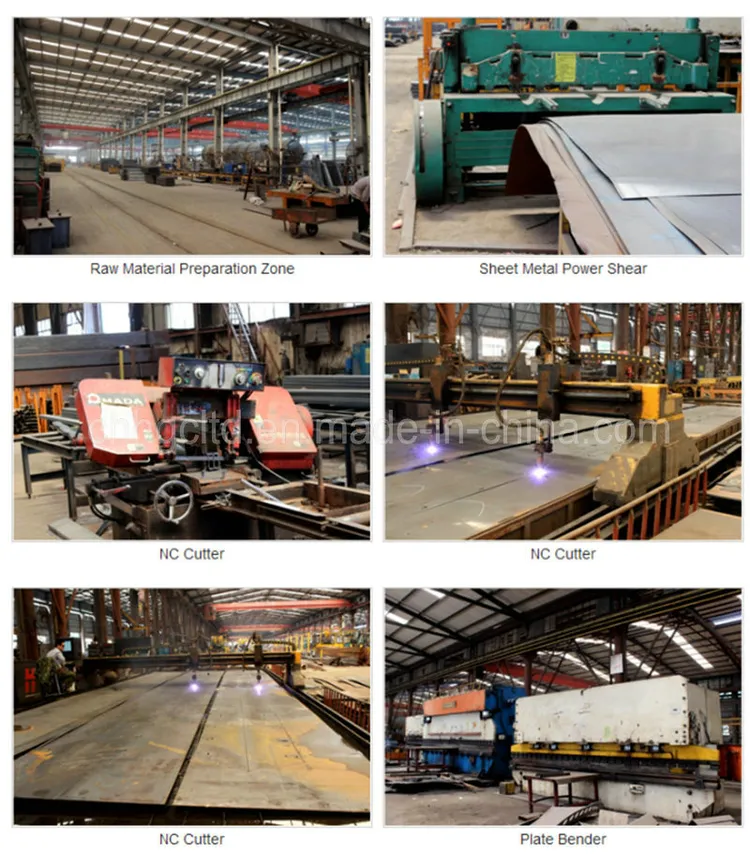

Workshop
FAQ
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
Why US?
1- Since 1995, With over 20yrs experience;
2- 2 Years Guarantee for all the the beam of trailers;
3- Reliability, Safety and Economic Transport solutions;
4- Custom Production according to demand;
5- Strict quality control, out-standing quality assurance;
6- Stock Trailers and immediate delivery;
7- After-sale service available, Email will be reply within 8 hours.
Our Advantages
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely shipment.
Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company
3- We provide out-standing quality assurance
4- No any quality complaints for 9 years.
Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service & product maintenance
Parameters
| Tare Weight | About 8.5-13T |
| Dimension | 13000mm*2500mm*2900mm(Size can be choose freely) |
| Loading Capacity (T) | 30T-100T |
| Axle | 13 T/16T, FUWA /BPW Brand Or the others |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market) |
| Tyre | 11.00R20 14PR/12R22.5 14PR |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (Special for export market) |
| King pin | JOST 50#/90# |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -30mm channel steel ( Material is Q235steel ). |
| Bottom Platform | 3-6mm thickness diamond steel plate |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light (Special for export market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m × 0.5m × 0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
*The main components of the warranty period
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
Characteristics
1. Convex-concave throughout beam: National patented product(national patent number: 200610062813.9), featuring light dead weight and high strength.
2. Light dead weight: On the basis of light semi-trailer. The critical parts are further optimized to ensure weight of whole vehicle and realize "Lightweight" of vehicle.
3. Low bearing surface: The optional small gooseneck and small 4-longitudinal beam structure effectively reduces the height of bearing surface, lowers the gravity center, and improves the transport safety.
*Advantages for our semi-trailers
**Scientific design and Quality assurance
The design is performed in accordance with the actual parameters of the tractor and trailer in the design process,ensuring to reach best level of whole vehicle transport performance.
**Characteristic overall camber structure of longitudinal beams ensures lifetime downward bending-free of crossbeams
As per mechanical analysis,the unique overall camber structure of the longitudinal beam is adopted to ensure lifetime downward dending-free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic value for the users.
**Quality steel material and OEM parts ensure quality and condition of products.
The raw materials and parts of the semi-trailer adopt the domestic and foreign renowned brand products,of which the critical structural parts are specially supplied by the casting company,the china's biggest special vehicle parts supplier.
**Characteristic suspension system eliminates uneven and abnormal wear of tires
The characteristic new suspension is adopted,ensuring balanced load transmission among the shafts and eliminating any abnormal tire wear.The snap rings for shafts are of integrally cast parts,of which the lower snap rings are patented products to better guarantee the stability and safety of the vehicle.
**Special steel and characteristic railing structure feature deformation-free and lighter dead weight.
All railing of semi-trailer are welded from high strength square steel tubes,featuring light,high strength,high deformation resistance,and deformation-free of railing parts.
Our Products
Packaging & Delivery
Packaging Details: | N/M,in nude, or make the packaging according to custom's requiryment. |
|---|---|
| Delivery Detail: | within 15 workdays after receipt the L/C or deposit |
Workshop
FAQ
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
Why US?
1- Since 1995, With over 20yrs experience;
2- 2 Years Guarantee for all the the beam of trailers;
3- Reliability, Safety and Economic Transport solutions;
4- Custom Production according to demand;
5- Strict quality control, out-standing quality assurance;
6- Stock Trailers and immediate delivery;
7- After-sale service available, Email will be reply within 8 hours.
Our Advantages
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely shipment.
Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company
3- We provide out-standing quality assurance
4- No any quality complaints for 9 years.
Perfect Service & Support
1- Whenever reliability, safety and economic is needed, there is a a solution. CHHGC provides the best possible quality semi trailers to worldwide valuable customers.
2- With a full range of trailer spate parts support, spare parts supplying within 3 days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service & product maintenance
