Small Liquid Chemical Tanker Truck Semi Trailers

Small Liquid Chemical Tanker Truck Semi Trailers





--Time-tested quality
--Up-to-date technologies
--Optimal prices
--High quality, competitive price

small  liquid chemical tank semi trailer
Model	HHV5312GYYHJCA	HHZ5311GYYDF	ZCZ5310GYYZZ	ZJV5315GYYHJSD
Overall dimensions(mm)	11980*2500*3850,3550	11890*2500*3600,3850	11990*2500*3950,3650	11800*2500*3815,3515
Sizes of tank body	9300mm in exterior length of tank body, 2460mm in width, and 1890mm in height	9300mm in exterior length of tank body, 2460mm in upper width, 2460mm in lower width, and 1890mm in height	8950mm in exterior length of tank body, 2350mm in major length of cross section and 1450mm in minor length	8800mm in exterior length of tank body, 2454mm in width, and 1700mm in height
Nominal capacity	23.1m³	23.1m³	22m³	21m³
Rated Bearing capacity(kg)	15500	15500	14000	14000
Curb Weight(kg)	15260	15290	16520	16830
Total mass	30890	30985	30650	30960

Pictures:


--Packing and shipping

1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
2. Cut the rear part which can load two sets in one 40ft container ;
3. Keep the trailer original but load two sets in one 45ft container

--FAQ

1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

3.The above trailer is just one product we producing according to customer's requirements.
we can supply customers with any type trailers they need .

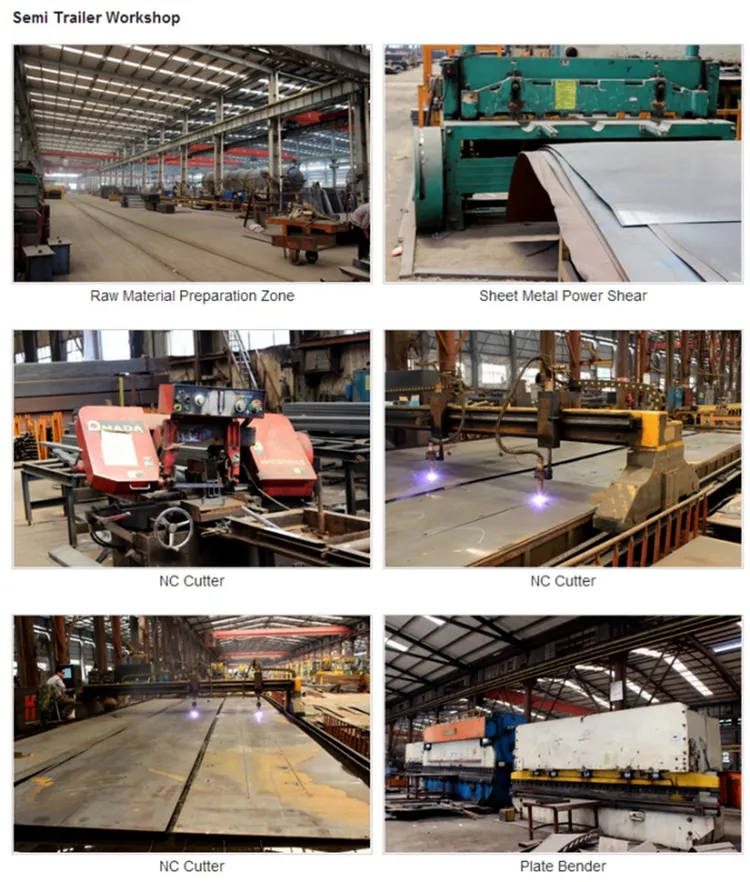

Factory Show:





--Company information

Henan Haiheng Import and Export Co., Ltd has been Established in 2004, We are able to supply
construction and mining equipment and various Semi-trailers ( Stake semi-trailer train , Skeletal
container trailer, Flatbed container semi trailer, Terminal trailer, Semi-trailer with side wall, Stake
semi-trailer, Stake semi-trailer with goose neck, Stake semi-trailer with long/short locks, special
semi-trailer for carrying coal, Curtain type semi-trailer ), tank trailer series ( Concrete mixer , Bulk
grain semi-trailer, Bulk cement truck , Bulk cement semi-trailer , Chemical liquid semi trailer , oil
tank semitrailer with heating heating device ,  stainless fuel tank semi-trailer Aluminum fuel tank
semitrailer,Oil transport trailer train),dump truck series,Special purpose semi-trailer(Stake tipper
trailer , side dumping semi trailer , Front-mounted dumping semi trailer , Tipper semi-trailer with
front mounted cylinder,Coiled sheet transportation semi trailer,farm tractor with farm implements.
