HH254C-TS
Wheel Tractor
Farm Tractor
ISO, CCC, ISO/TS16949
4WD
Euro II
Gas / Diesel
≤1 Year
Medium
Red
New
Competitive Price 25HP 4WD Micro Tractor with Cabi
Laidong 3 Cylinder Diesel Engine
4 Wheel Drive
Hydraulic Power Steering
Dual Function Clutch
Spur Gear (4+1)X2 Plain Compound Type
750,1000 R/Min
Category 1 Rear-Mounted 3-Point Linkage
6 Spline Pto
9.5-24
CHHGC
2 Sets in 20'gp, 4 Sets in 40'hq Container
3085X1340X2100/mm
Made in China
87019011
Product Description
Competitive Price 25HP 4WD Micro Tractor with Cabin
HH254-TS model mini tractor used in many fields
Summary FOR this mini tractor
Newly designed hood makes this mini tractor looks more beautiful. Any color is available according to customers' requirment. Being high quality and multifunctional, our products have won counntless hounors from customers. Taken the price into consideration it should be a desirable option for you.
Note
We supply a full line of farm tools( such as front end loader, cultivitor, totary tiller, disc plough, harrow, thresher, etc. ). Different kind of tractors used in farm land, lawn, garden and different tractor implements. As a manufacturer we have the advantage to offer you the lowest price with highest performance ratio.
Technical Parameter for the Low Price 25HP 4WD Small Chinese Tractor:
Technical Parameters

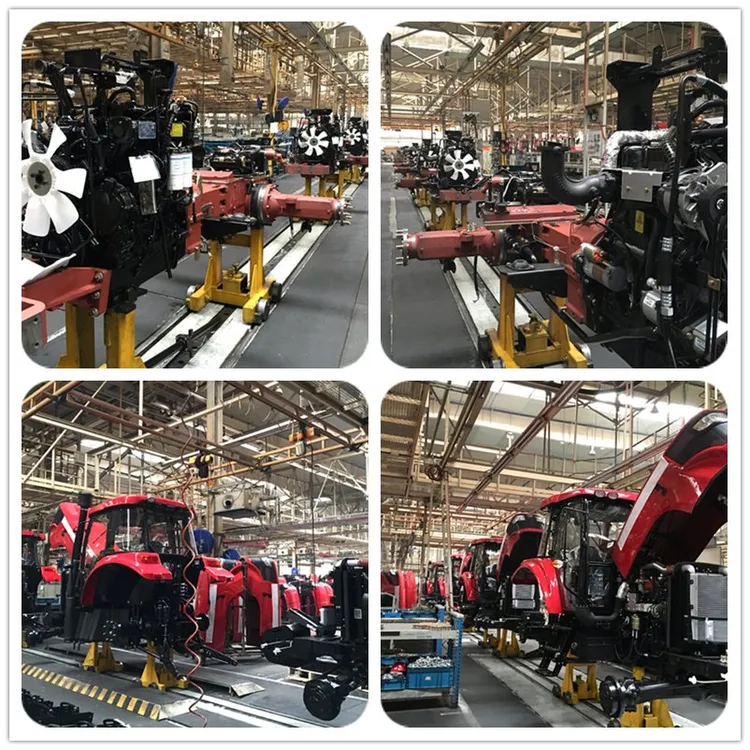

Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the Tractors?
A: By container, bulk ship, RORO.
Q2. Do you have different horsepower tractors?
A: Yes,we supply different model tractors and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model tractors do you supply?
A: We supply all kinds of tractors such as walking tractors, wheel tractors etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
HH254-TS model mini tractor used in many fields
Summary FOR this mini tractor
Newly designed hood makes this mini tractor looks more beautiful. Any color is available according to customers' requirment. Being high quality and multifunctional, our products have won counntless hounors from customers. Taken the price into consideration it should be a desirable option for you.
Note
We supply a full line of farm tools( such as front end loader, cultivitor, totary tiller, disc plough, harrow, thresher, etc. ). Different kind of tractors used in farm land, lawn, garden and different tractor implements. As a manufacturer we have the advantage to offer you the lowest price with highest performance ratio.
Technical Parameter for the Low Price 25HP 4WD Small Chinese Tractor:
| Model | HH254-TS | ||
| General Specifications | Type | 4X4 | |
| Overall dimensions LxWxH(mm) | 3085X1340X2100 | ||
| Constructional weight(kg) | 1400 | ||
| Rated traction force(kN) | 11.03 | ||
| Wheel base(mm) | 1755 | ||
| Front wheel tread(mm) | 1175 | ||
| Rear wheel tread(mm) | 1100-1500(Adjustable) | ||
| Min.land clearance(mm) | 340 | ||
| Min.quality in use(kg) | 1540 | ||
| Front wheel tyre size | 6.0-16 | ||
| Rear wheel tyre size | 9.5-24 | ||
| Min.turning radius(mm)(Unilateral Nonbraking/Unilateral Braking) | 3800±200/3000±200 | ||
| Engine | Model | FD295TA-3 | |
| Type | Inline,Vertical,Water-cooling,Four-stroke | ||
| 12 hours power(kw) | 18.5(25HP) | ||
| Rated Speed(r/min) | 2100 | ||
| Fuel consumption(g/kw.h) | ≤250 | ||
| Max.torque(N.m) | ≥96.9 | ||
| Speed of Max.torque(r/min) | ≤1575 | ||
| BorexStroke(mm) | φ95×115 | ||
| Diesel Consumption(g/kW.h) | ≤1.84 | ||
| Starting mode | Electric start | ||
| Break System | Service Brake | Mechanical,Closed,Shoe | |
| Parking Brake | Locking footplate type | ||
| Transmission | Clutch | Dry,One stage | |
| Gear box | Spur gear (4+1)X2 plain compound type | ||
| Steering | Hydraulic steering | ||
| Steering type | Front wheel steering | ||
| Main Drive | Spiral bevel gear | ||
| Differential Mechanism | Two planet bevel gear,Closed | ||
| Final Drive | Externalgearing straight tooth type | ||
| Operating System | Lifter tilling depth control | Position adjustable | |
| Max.lifting capacity(kn) | ≥4.16 | ||
| Suspension type | Postposition,Three-point,I category | ||
| Speed of P.T.O.(r/min) | (540,1000),or (750,1000),or (540,750) | ||
| Type of P.T.O. | Semi-independent | ||
| Traction Equipment | Stationary type or swing type | ||
| Optional Disposition | Air brake,Rear ballast, Draft and position adjustable lifter,New hood,Dual-stage clutch | ||
