CHHGC4023
Semi-Trailer
30T
CE, ISO9001
7250+1310+1310
1820mm
Heavy Duty
Cross Arm Type
Side Wall
3
12PCS
Not Self-dumping
ABS Anti-lock Braking System
Steel
New
Linkage of 28ton,
38450
8450
30000
12650X2300X600
1830/1830/1830
8/8/8
2040
14
90# Jost Brand Bolt-in King Pin
CHHGC
Standard Export Packing
12980x2500x3858mm
China
8716399000
Product Description

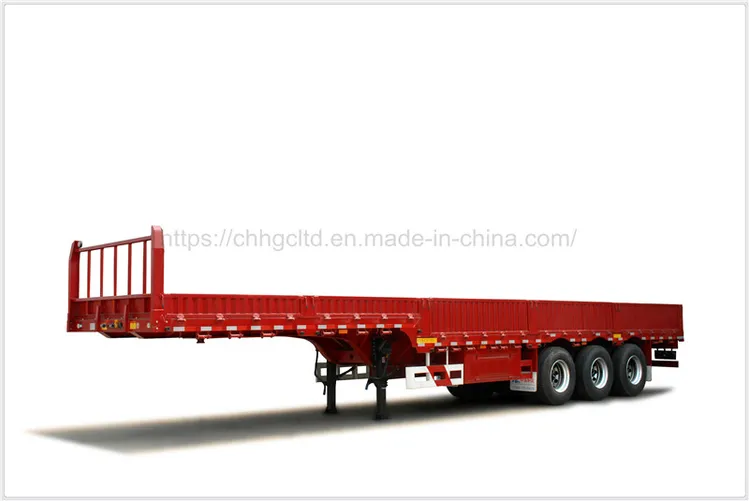

3 Axles Side Wall Truck Trailers
Specifications:
1.10 years experience, manufacturer
2.Axle: 3 units of Extra widened 13t FUWA axle
3.CCC ISO certificate
Product description of side wall semitrailer:
Factory Show:
Our Services
What we can do for customers:
1. the satisfied product with high level standard;
2. the full aspect service from order to shipping;
3. give customer most suitable advice when customer has special needs for your transportation or construction;
4. help customer to get the related spare parts of trailer or tractors if customer needs.
we are waiting for you to get this ideal products and best quotation!
Specifications:
1.10 years experience, manufacturer
2.Axle: 3 units of Extra widened 13t FUWA axle
3.CCC ISO certificate
Product description of side wall semitrailer:
| Axle | 3-axle | Extra widened 13ton FUWA Brand , |
| Outrigger | Linkage of 28Ton, | |
| Gross weight (kg) | 38450 | |
| Tare weight (kg) | 8450 | |
| Payload (kg) | 30000 | |
| External dimension (L*W*H) mm | 12980x2500x3858 | |
| Cargo van internal dimension(L*W*H)mm | 12650x2300x600 | |
| Wheel base(mm) | 7250+1310+1310 | |
| Track space(mm) | 1830/1830/1830 | |
| Tires | 11.00R20-16PR Ratial tyre | |
| No of tire | 12 | |
| Leaf spring | 8/8/8 | |
| The rear axle location(mm) | 2040 | |
| Leave angle(°) | 14 | |
| Trail pin | 90# Jost brand Bolt-in king pin | |
| Floor (mm) | 3mm thickness floor | |
| Brake system | Double air chambers, Biaxial energy storage, ABS braking system | |
| longitudinal beam | 14/6/16 | |
| Painting | zinc-rich primer and modified urethane topcoat as customers' choices. | |
| Chassis | Heavy duty and extra durability designed I beam, welded by automatic Submerged-Arc processes, 500mm height, Light Channed steel(16# ) by automatic submerged are welding; Top Flange 14mm, Botton Flange 16mm, Middle Flange 6mm. | |
Factory Show:
Our Services
What we can do for customers:
1. the satisfied product with high level standard;
2. the full aspect service from order to shipping;
3. give customer most suitable advice when customer has special needs for your transportation or construction;
4. help customer to get the related spare parts of trailer or tractors if customer needs.
we are waiting for you to get this ideal products and best quotation!
