SSY9401ZNX
24/7 Service for You
1 Year
Semi-Trailer
50T
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
7000-8000mm
1820mm
Heavy Duty
Cross Arm Type
Flatbed
2/3/ 4 Sets
12/16 Sets
Not Self-dumping
ABS Anti-lock Braking System
Steel
New
Depends on The Buyer′s Requirement.
Wabco Brand Emergency Brake Valve
12 PC
600-1000mm
12r22.5 315/80r22.5
40t-60t
Hyva Brand
2/3/4
WODELI
a Group of Three Units
12500 to 16000mm x 2500 x 2200-2700mm
Shandong, China
87169000
Product Description

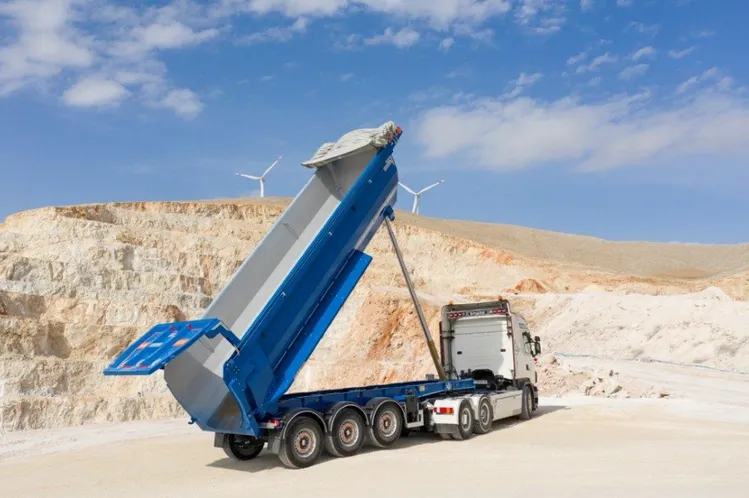

New 3Axles High Quality Hydraulic Tipper Dump Semi Trailer For Sale
Product description
We can according to your nedd to adjust the dump tipper semi trailer load capacity, we have 20 cubic meters to 45 cubic meters for your choose.the payload capcaitycan meet 40T, 50T ,60T till 80T for your choose.we use thinckness spring suspension and reinforce leaf spring, help trailer can have good perform when you meet the bad road condition. the dump tipping semitrailer lifting parts reinforcement, all lamps and lanterns are all European standards.
1:What payment methods do you support?Product description
We can according to your nedd to adjust the dump tipper semi trailer load capacity, we have 20 cubic meters to 45 cubic meters for your choose.the payload capcaitycan meet 40T, 50T ,60T till 80T for your choose.we use thinckness spring suspension and reinforce leaf spring, help trailer can have good perform when you meet the bad road condition. the dump tipping semitrailer lifting parts reinforcement, all lamps and lanterns are all European standards.
What is a tipper trailer?
A tipper trailer is a trailer with a tipping loading floor. We offer tipper trailers that tip only to the rear or three ways. That way, we offer a solution for any job. Tipper trailers are highly suitable for moving loose cargo, like sand or gravel.
A tipper trailer is a trailer with a tipping loading floor. We offer tipper trailers that tip only to the rear or three ways. That way, we offer a solution for any job. Tipper trailers are highly suitable for moving loose cargo, like sand or gravel.
How does a tipping trailer work?
Tipping trailers are intended primarily for the carriage of loose loads such as sand and gravel and can tip their load bodies through a large angle such that the load then slides out the back. Unlike Tiltbeds, Tipping trailers keep all their wheels on the ground during discharge.
Tipping trailers are intended primarily for the carriage of loose loads such as sand and gravel and can tip their load bodies through a large angle such that the load then slides out the back. Unlike Tiltbeds, Tipping trailers keep all their wheels on the ground during discharge.
| Tare weight | according to requirements |
| Size | according to requirements |
| Payload | 20T-40T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345B , welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width140mm ; |
| Side beam | Designed according to the load weight of the trailer |
| Cross member | Designed according to the load weight of the trailer |
| Floor | Thickness 8 /10 mm |
| Side wall | Thickness 6/8 mm |
| Cylinder | HYVA brand |
| Axle | 2 axle FUWA brand 13T /16T |
| Suspension | American type suspension |
| Leaf spring | 10pcs*13mm*90mm |
| Tire | 12R22.5 8+1pcs |
| Wheel rim | 9.0-22.5 8+1pcs |
| Kingpin | 2" bolt-in king pin |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
| Twist lock | no |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | 4S/2M |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Date of delivery | 15 workdays after we received 30% of contract value T/T down payment. |
- We support T/T and LC and other ways you need.
2:What is your minimum order quantity?
- One unit.
3. How about the delivery time?
- Generally it will takes 15 days after receiving your deposit. The specific date will be depended on your order and item. We will contact you if we confirm the delivery date. And we will track the goods all the time until the goods reach to the destination.
4.How can I confirm whether your products will meet my needs?
-You can tell us your needs such as size, material, volume, height and other information, our professional sales will provide solutions, and we supply OEM services.
5. How do you pack the products?
- Standard shipping packaging. And we do supply the OEM package service.
6. How about the price?
- To provide the top quality product with competitive price is our mission all the time. We want a long-term business relatonship with our customers rather than cooperate for once.
7. How can I trust you?
- We have supplied for many famous company at home and abroad;
- We want to provide great service for you rather than just provide a price and product for you;
- To meet you is the first step, then we would like to make friends and maintain the business relationship with you all the time.
