1QY-1/1QY-2/1QY-3
Disc Plough
Agriculture
Dry Cultivating Machinery
Tractor
Soil Preparation Machinery, Continuous Running Operation
Hanging
Gear Drive
ISO 9001:2000
Red
Red
Best
Best
Dadi
Iron Shellframe Box
ISO 9001: 2000
China
8432100000
Product Description

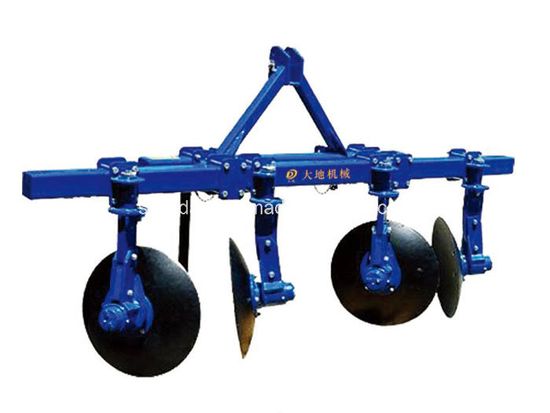

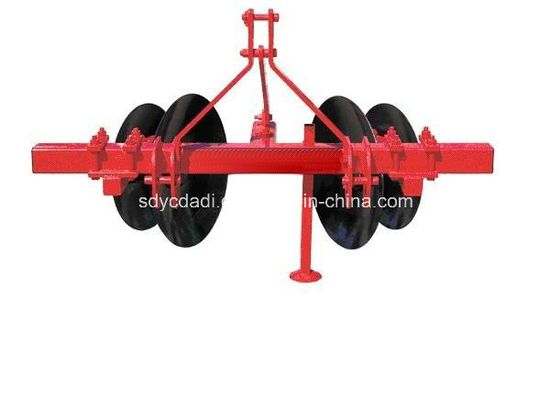

Ridger Plough /Disc Ridger
No. Of discs: 1-3
Ridge width: 100 cm
Ridge height: 25-30 cm
Matched power: 25-100 hp

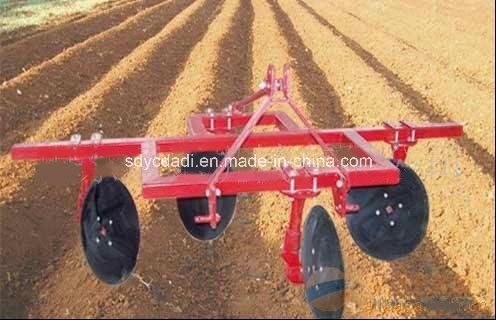

Adjustable ridging plough is suitable for the ridging after the plowing. It can match the tractor. The structure is simple. The height and the width of the ridging can be adjusted, the frame is consisted of square Steel pipe, Ridge disk device can adjust the angle of the ridging.
The material of the disc is superior 65Mn, the products are made of heat-treatment processing. It has the reasonable structure, rugged, transportation convenience, easy to adjusted, facilitate the use of maintenance, match a wide range of characteristics, and it can complete the breaking crop, ridge operation one-time.
No. Of discs: 1-3
Ridge width: 100 cm
Ridge height: 25-30 cm
Matched power: 25-100 hp
Adjustable ridging plough is suitable for the ridging after the plowing. It can match the tractor. The structure is simple. The height and the width of the ridging can be adjusted, the frame is consisted of square Steel pipe, Ridge disk device can adjust the angle of the ridging.
The material of the disc is superior 65Mn, the products are made of heat-treatment processing. It has the reasonable structure, rugged, transportation convenience, easy to adjusted, facilitate the use of maintenance, match a wide range of characteristics, and it can complete the breaking crop, ridge operation one-time.
| Model | 1QY-1 | 1QY-2 | 1QY-3 | |
| Ridge NO. | 1 | 2 | 3 | |
| NO. Of discs | 2 | 4 | 6 | |
| Max. ridge width(cm) | 100 | |||
| Max. ridge height(cm) | 25 | 30 | ||
| Diameter of disc(cm) | 510 | 560 | ||
| Overall dimensions(LxWxH)(cm) | 139× 90× 118 | 280× 112× 132 | 380× 112× 135 | |
| Weight(kg) | 200 | 380 | 500 | |
| Trans. Clearance(mm) | ≥ 260 | |||
| Linkage | Three -point mounted | |||
| Matched Power(hp) | 25-40 | 50-65 | 80-100 | |
