ALPS0001
Semi-Trailer
30-60tonnages
ISO9001, CCC, ISO/TS16949, SGS CQC
1310mm
1840mm
Heavy Duty
Independent Suspension
Fuel Chemical Tank Semi Trailers
3
12+1
Self-Discharge Tank Trailer Wipump System Optional
Tanker Trailer with ABS Anti-Lock Brake System
Carbon Steel Material Q235B
Eleph Brand New Trailers
2 Inch Bolted Trailer Pin with Change 3.5 Inch
Trailer with Hydraulic/Electric /Manual Legs Custo
Tank Trailer with Standard 2 Manhole 1 Compartment
Bolted Ladders
ELEPH BRAND
Naked or Packed Into Container, Assembly
12500*2500*3850MM
China
8716300
Product Description
Production Description:
| Double Tanker Semi Trailer | ||||||
| Axle No. | Axle Location | Tire No. | Length | Rating Capacity | ||
| 1 | Rear | 4 | 4000-7500mm | 15Tons | ||
| 2 | 1+1 | 8 | 7500-12500mm | 40Tons | ||
| 3 | 1+2 | 12 | 12500-15000mm | 60Tons | ||
| 4 | 2+2 | 16 | 15000-18000mm | 80Tons | ||
| Suspension | America type mechanical Suspension | |||||
| Wheel | 11.00 R20 | |||||
| Turntable | Diameter is 1100mm | |||||
| Traction hook | DN50 | |||||
| Traction bar | Length is 1.4m | |||||
| Dimensions(LxWxH) | 7500-18000×2500×1500mm | |||||
| Steel Spring | 10/10 pieces per axles | |||||
| Tire: | ||||||
| The material of Main beam | The height of the beam is420mm,upper plate is 12mm*140,down plate is 12*140mm,middle plate is 6mm(strictly).made of Q345 | |||||
| Platform plate | 3mm Diamond Plate | |||||
| Brake: | WABCO VALVE | |||||
| Brake | Kemi Brand of China | |||||
| Brake Chamber | TWO double and two single chamber( TKL brand ) | |||||
| ABS system | with | |||||
| Electrical: | ||||||
| Voltage | 24V | |||||
| Receptacle | 7 ways(7 wire harness) | |||||
| Light color: | (LED light) | |||||
| Side marker lamp | Orange | |||||
| Rear lamp | Red | |||||
| Turn signal lamp | Orange | |||||
| Miscellaneous: | ||||||
| Painting | Can be choose freely | |||||
| Marking | According to the requirement of the buyer | |||||
| Side Guard | According to the requirement of the buyer | |||||
| Tools box | One pieces or According to the buyer(1m length) | |||||
| Water tank | The size can be choose freely. | |||||

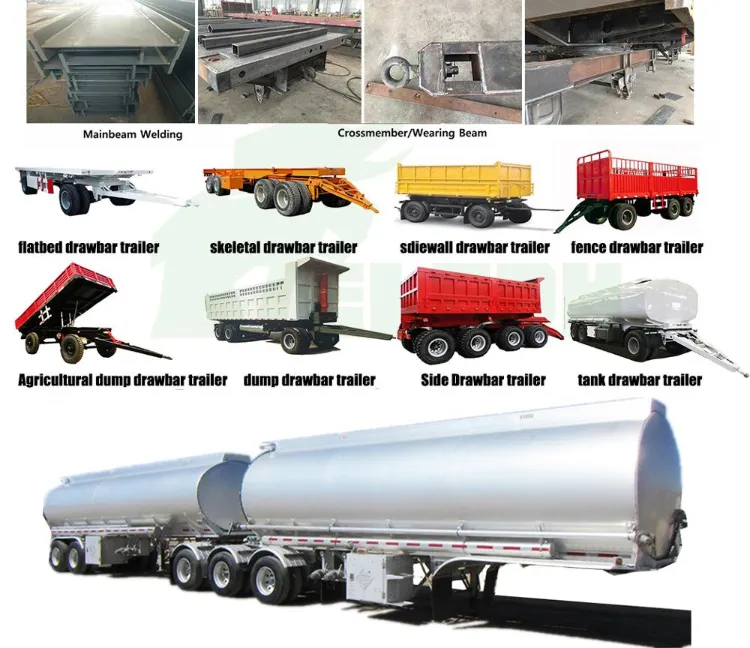

Productions & Details
Related Products
Cases for Exporting
FAQ
1. How To Buy From Us ?
- You Can Select The Desired Products From Our Online Shop,
A. Clicking Our Sales Manager To Confirm The Model;
B. Telling Our Sales Manager Special Request If You Have;
C. Confirmed The Quantity And Price On The Desired Model;
D. Confirming The Terms Of Delivery (Fob/Cfr/Cif/Daf.. Etc By Mutual Agreement);
E. Our Sales Manager Can Issue You The Commercial Invoice On Agreement;
F. 1st Down Payment 30% On Total Invoice Value Should To Paid Us By Tt/Online Upon The Invoice Issuing.
G. Our Factory Will Finish The Production According To The Agreed Production Time.
H. Final Payment Will Be Paid After We Showing All Production As Per Clients' Need.
I. Shipment Arrange And Final Document Arrange To Customer.
2. What's The Guarantee Period On Our Products ?
- All Products We Export Has 1 Year Guarantee Period, And For The Beam Is Lifetime Promise. As Exporting Experience
For Years, All Products From Our Factory Can Meet The Exporting Country's Standards On Vehicles, All Vehicles Will Be
Built Upon The Related Countries' Road Condition, And Our Sales Manager Will Provide Customer The Best Suggestions Before Placing The Order. If Some Easy Weary Small Parts, We Can Offer Free In 6 Months.
3. If Customized Service Provided ?
- Yes, Please Contact Our Sales Manager, We Can Offer Customized Service On Vehicle Design / Painting, Etc.
- Oem Available
4. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing, We Need To Adjust The Height And Overhang To Couple With The Using Truck.
5. What's The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
