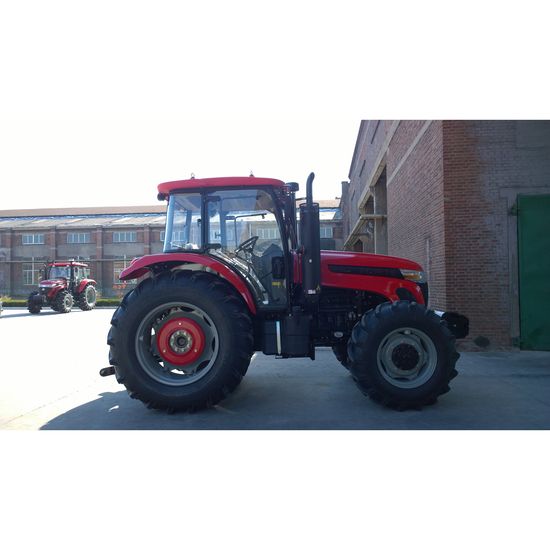

TD1000 Tractor
Main Features
* The use of flat floors, hanging pedals, side manipulation, 8+4shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution. Optional 16+8 synchronizer shuttle shift models make the manipulation more convenient;
* The imported German LUK clutch has a reliable performance, a large torque reserve coefficient and a high transmissiton ability;
* 240-liter lower large fuel tank, a long operation time;
* The optional U.S. ACTUANT combination instruments can achieve a stable work and a high reliability;
* GOST certification model is available.
| Model | TD1000 Tractor | TD1004 Tractor | |
| Drive Type | 4×2 | 4×4 | |
| Engine | |||
| Engine Manufacturer | Anhui Tanli Engine Co., Ltd. | Anhui Tanli Engine Co., Ltd. | |
| Engine Model | QC4115T | QC4115T | |
| Engine Type | vertical,water-cooled,four-stroke,direct injection | vertical,water-cooled,four-stroke,direct injection | |
| Max Torque(N·m)/Revolving Speed(rpm) | ≥390/2300 | ≥390/2300 | |
| Displacement(L) | 5.61 | 5.61 | |
| Fuel Tank Capacity(L) | 150 | 150 | |
| Cylinder Diameter * Stroke | 115×135 | 115×135 | |
| Engine Rated Power (kW/rpm) | 73.5 | 73.5 | |
| Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤240 | ≤240 | |
| Drive Train | |||
| Clutch | dry,single disc,independent dual-stage | dry,single disc,independent dual-stage | |
| Standard PTO speed(rpm) | (760,1000)/(540,1000) | (760,1000)/(540,1000) | |
| Gears | 8F+4R/16F+8R(creeper) | 8F+4R/16F+8R(creeper) | |
| Steering type | hydraulic steering | hydraulic steering | |
| Gear Shift Mode | meshing gear shift | meshing gear shift | |
| Speed Range | 2.65~38.18 | 2.34~33.69 | |
| Service Brake | pedal,mechanical drive,hydrostatic,disc | pedal,mechanical drive,hydrostatic,disc | |
| Parking Brake | handle operation,multi friction surface mechanical compress,oil bath type | handle operation;multi friction surface;mechanical compress,oil bath type | |
| Hydraulic System | |||
| Hydraulic Output Flow(L/min) | 50 | 50 | |
| Hydraulic Output Valve | 2 ways | 2 ways | |
| Working Device | |||
| Three-Point Suspension | postposition, Category II | postposition, Category II | |
| Max.Lifting Capacity(kN) | 17.6 | 17.6 | |
| Tillage Depth Adjustment | draft and position adjustable,floating control | draft and position adjustable,floating control | |
| General Parameter | |||
| Overall Dimension(L×W×H)mm | With cab | 4040×2050×2750 | 4270×2050×2750 |
| Without cab | 4040×2050×2750 | 4270×2050×2750 | |
| Wheelbase(mm) | 2223 | 2208 | |
| Min. operating weight(kg) | With cab | 3735 | 4003 |
| Without cab | 3545 | 3814 | |
| Min. Ground Clearance(mm) | 465 | 415 | |
| Min.turning radius(mm) | 3400 | 4200 | |
| Front Tire | 6.5-20 | 12.4-24 | |
| Rear Tire | 16.9-34 | 16.9-34 | |
| Rated Pull | 19 | 22 | |
| Optional Disposition | |||
| hydraulic pressure lifter, air brake, swing draw bar, creeper gear, paddy tire,2 group hydraulic output | hydraulic pressure lifter, air brake, swing draw bar, creeper gear, paddy tire, 2 group hydraulic output | ||
QC Flow:
2. Inspection for half-finished products during order production to find the problem earlier if any;
3. Inspection for finished products after production to make sure the products comply with customer's requirement.
Department Introduction of QC / Technical Support:
In order to get super quality, we have special QC department to control the product quality. This department is composed by experienced engineers who can offer us strong technical support easily. The engineers will inspect product quality both in order production and after order production to make sure each shipment we send to our customers is in the best status. With their strict quality control, our consistent quality wins us more and more orders from our international customers.
Full Service and Product Warranty:
We offer our customers technical assistance and a full one year warranty on all products covering all manufacturing defects. ME Our manufacturing facility is completely computerized to provide our customers efficiency, reliability, high quality and timely shipments. Spare Parts:We can supply spare parts within 15 business days or sooner. Currently, part numbers are not available on-line. You may however determine the part number from your Parts Book or, if it is a simple part, you may describe the part and send us an order online. If you are not sure, please Contact Us . Shipment: We can ship from our port in Qingdao or Shanghai, China to anywhere in the world within short days
Q1: Are you a factory or trading company?
We have our factory for the farm machines and we also have our own trading company with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc.
Q3: Where is your factory located? How can I visit there?
Our factory is located in Linyi City, Shandong Province, China. About 1 hour away from Linyi Airport, 4 hours away from Qingdao airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest.
Q5: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance when the goods are ready for shipping.
Q6: What's the Payment terms?
T/T, L/C or some other ways payment method.
Q7: At which port do you usually ship the good?
We usually ship goods via Qingdao port of China.
Q8. How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.
