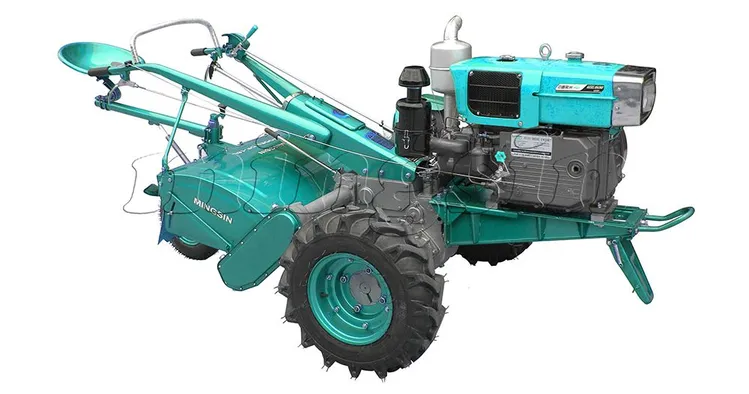

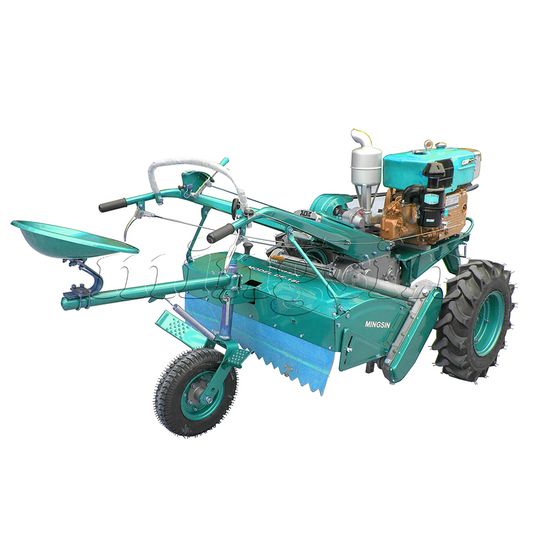

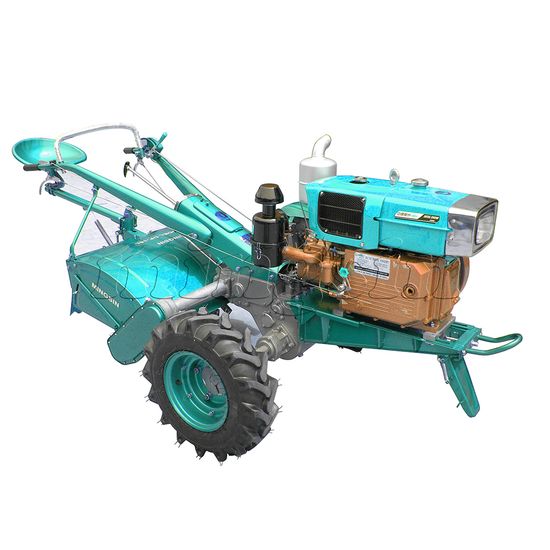

| Model | Unit | MX201 walking tractor | |
| Structure weight | Without rotary tiller | kg | 503 |
| With rotary tiller | 513 | ||
| Working weight (with rotary tiller) | kg | 548 | |
| Turning speed of rototilling shaft | rpm | 188/300 | |
| Overall dimensions (L*W*H) | mm | 2680 x 1030 x 1250 | |
| Number of blades | PCS | 24 | |
| Rototilling width | mm | 800/900 | |
| Type of tractor | Single axle, dual-purpose for both traction & drive | ||
| Travelling speed | Forword | Km/h | 1.4,2.5,4.1,5.3,9.4,15.3 |
| Reverse | 1.1, 3.8 | ||
| Type size | 6.00-12 | ||
| Wheel track | mm | 800, 740, 640, 580(normally use 800) | |
| Min. ground clearance | mm | 185 | |
| Min. turning radius | m | 0.9(without rotary tiller) | |
| Model of engine | ZS1115N | ||
| Type of engine | Horizontal 4-stroke | ||
| Bore x stroke | mm | 110*115 or 115*115 | |
| Total displacement | L | 1.0931 or 1.1941 | |
| Compression ratio | 17:01 | ||
| Turing speed of crankshaft | rpm | 2200 | |
| 1-hour rated output | KW/hphp | 20hp or 22h | |
| 12-hour rated output | KW/hp | 18hp or 20hp | |
| Consumo especifico de combustible | g/kw.h | ≤244.8 | |
| Specific lube oil consumption | g/kw.h | ≤1.47 | |
| Cooling mode | Condenser (Radiator) | ||
| Main farm implements (optional) | Anti-skid steel wheel Model 100-640 Double-furrow plough Model 1LS-220 Disk plough Model 1LS-220Y Power driven disk plough Model 1LYQ-320 Sprinkler Model 8Y-80 Swather/reaper Model 4GL-130 Trailer 7C-1.5 (Standard) Trailer 7C-1.5BH (Hydraulic dumping) | ||
2) Simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.
