CLW5168WYT
Compactor
ISO9000, CCC, TS16949, CE
10001-15000L
Euro 4
Manual
3ton
Diesel
4×2
Isuzu
Large
Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
New
Carbon Steel
190HP
as Per Customer's Request
10tons 12tons 10t 12t 10ton 12ton
LHD,Rhd
Dongfeng,Foton,HOWO,Shacman,Isuzu
Side 4mm Bottom 5mm
0.6-0.8 Ton/Cbm
Diesel Isuzu Engine
Overseas Technical Support
One Year
CLW
Naked, Waxed, Bulk Ship, RO-RO
10tons, 10t, 10ton, 12cbm, 12000liters
Suizhou, China
8705909090
Product Description

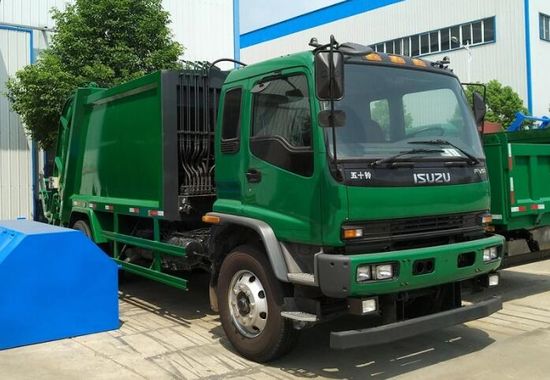

Brand New Used Garbage Truck ISUZU garbage compactor truck FTR 8t 10tons Sanitation Compression Rubbish Collect Trucks special design
Product Description
1--garbage truck compactor is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity: option for 3-20m3 garbage truck.
6--Steering wheel: both left and right hand drive,meet the needs of different countries
7--Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
8--Truck chassis: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Specifications of garbage truck compactor
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 8500×2490×3250 | |
| Wheel base (mm) | 4500 or 4700 | ||
| Track front/rear mm | 1880/1800 | ||
| F/R Axle-Load | 6300/13000 kg, | ||
| Approach/departure angle | 19/12 | ||
| Weight in KGS | Curb Weight | 9850kg | |
| GVW | 15800kg | ||
| Max. driving speed(km/h) | 98 | ||
| Engine | Brand | isuzu Brand,Diesel ENGINE | |
| Model | 4HK1-TCG40 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 190hp | ||
| Emission standard | Euro IV | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 9.00R20,10.00R20,9R22.5 or 10R22.5, 7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Garbage Compactor | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 12cbm or 14cbm | ||
| Body material | Floor plate 5mm and side plate 4mm | ||
| Waste water tank | 200L | ||
| Filling container volume | 500L | ||
| Filling time | 8~10s | ||
| Filling cycle time | 50~60s/time | ||
| Discharge time | 30~40s | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
| Push Panel | Used to push and squeeze garbage,works together with the skid way in the box | ||
