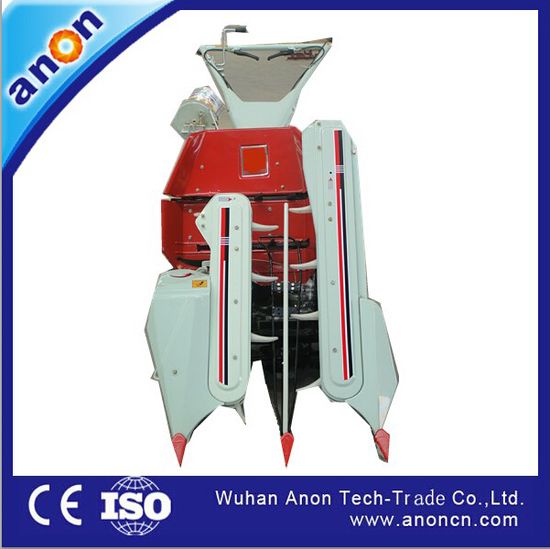

The rice reaper binder machine is a kind of man-holding & self-walking harvesting machine. It's the new product with the advanced
technology and own patent right in China,with the renovated surface, strengthened applicability, improved performance, better reliability
and optimized technical structure. The machine is mainly used to harvest and bind grain and wheat.In addition to cutting the small-grain
crop, it would also tie the stems into small bundles, or sheaves.
Feature of Anon An4K-50 Mini Harvesting Machine Wheat Rice Reaper Binder in Pakistan
1.Compact structure,Small volume,Easy to operate,Flexible steering, Self-equipped engine,can moving, control crops, harvest, bind
and place the crops automatically.
2.The machine equipped with 2+1 compound gearbox and tension wheel clutch,variable speed flexible and easy to move.
3.Hydraulic outlay Cutting-Platform oil supply system
4.The crop supporting system used tilting convey finger transmission,have significant effect to transmit and harvest the tilting and lodging crops.
5.It's with transformation differential device,slewing flexible.Adapt to harvest crops in different terrain.
6.Can adjustable handle and optional gears suitable for different people.
Specification of Anon An4K-50 Mini Harvesting Machine Wheat Rice Reaper Binder in Pakistan
Model | AN4K-50 |
Dimension | 2170*700*1050mm |
Total weight | 240kg |
Power | 4.05kw |
Bundled way | automatic mechanical |
Rope type | plastic rope |
Cutting table way | vertical |
Cutting width | 0.5m |
Cutting form | reciprocating |
Fu Wo ways | sprocket |
The total loss rate | ≤1 |
Bundle rate | ≥95 |
Cutting height | ≤100mm |
Root distance | ≤150mm |
Productivity | 0.1~0.2hm2/h |
Unit fuel consumption | ≤8km/hm2 |
Reliability | ≥90% |
Detail of Anon An4K-50 Mini Harvesting Machine Wheat Rice Reaper Binder in Pakistan
1.Japan mitsubishi engine adopts 6 horsepower engine, easy to start, low fuel consumption.
2.Walk paddy wheel is widened, the ground base area is larger, inner tube, can be used inflatable. With differential device, can be turn around in situ
3.The control handlebar can be freely adjusted around 180°, vertical 30°adjustable, more flexible to operate in different field .
4.The header working principle is the same with combine harvester, it can harvester lodgy crops.
5.Baling wire adopts special plastic,Can withstand 40 n pulling force,Effectively guarantee the rate of bundles,And sunscreen, anti-aging,In the market the normal plastic rope tension is not enough,Uneven thickness,Use this machine must buy special banding rope,Otherwise there is no guarantee of bundles
6.Driving type: shaft, torque is bigger, more efficient.
7.In order to feedback the masses of users ,We are glad to offer free Baling wire 5 bundles, 1 set of tools and other easy
broken parts for free with the machine
