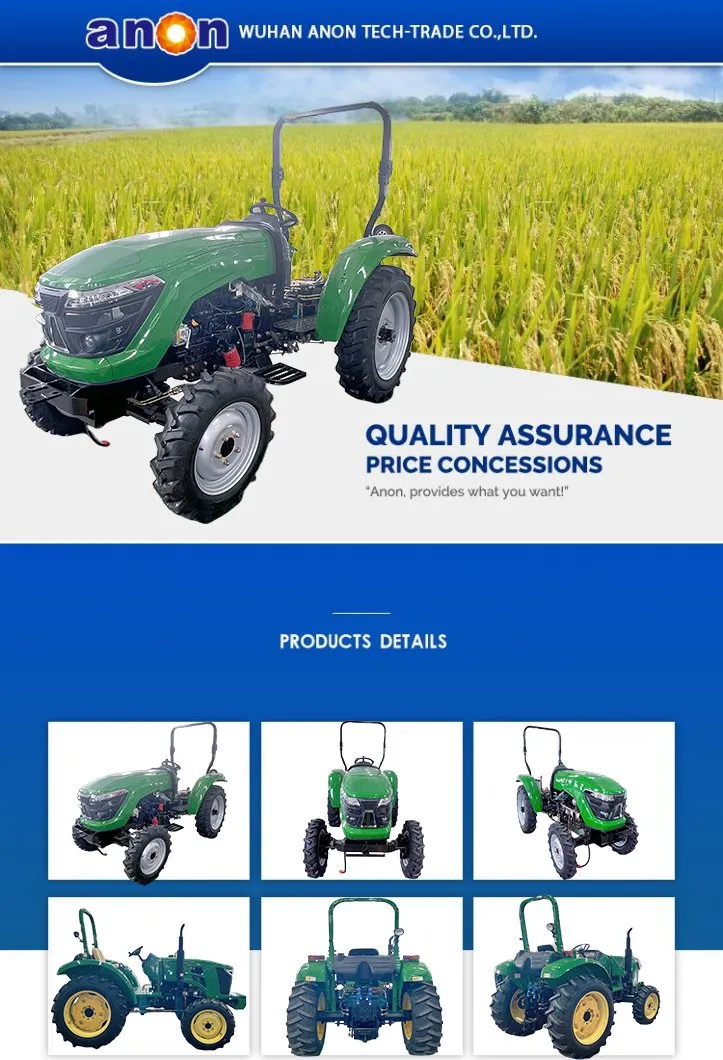

ANON Compact Farming Equipment Agricultural Machine Small Farm Tractor
ANON Compact Farming Equipment Agricultural Machine Small Farm Tractor
(1) Enhanced traction adhesion performance. At this time, the actual weight of the tractor shaft is the attached weight, and the adhesion can be fully exerted. If it is an independent four-wheel drive tractor, the front and rear wheels have the same width, which reduces the rolling resistance of the rear drive wheels and improves the adhesion conditions.
(2) It reduces the compaction of the soil and the damage to the soil structure. Due to the large power, wide operation width and high efficiency, the number of times of entry into the ground is reduced, and the compaction and soil damage are reduced.
(3) Improved maneuverability and longitudinal stability. Due to the large load on the front axle and the driving force at the same time, its handling performance and longitudinal stability are improved.
(4) Passability is strong. Due to the large attachment weight, it can work in muddy soil with poor adhesion performance and adapt to harsh condition.
| Model | AN-50 | ||
| Wheeled Type | 4×4 | ||
Dimensions (mm) | Wheel Tread | Front | 1200 |
| Rear | 1200 | ||
| Wheel Base | 2050mm | ||
| Min. Ground Clearance | 285mm | ||
| Min. Operational Mass (kg) | 2520kg | ||
Engine | Model | QuanChai(50hp) | |
| Type | Vertical, Water Cooled, 4-Stroke | ||
| Rated Power (kw) | 36.7kw | ||
| Rated Rev. (r/min) | 2350 | ||
| Fuel | Diesel | ||
| Clutch | Dry-friction, Single Disc, Double Stage | ||
| Steering | Hydraulic | ||
PTO | Type | Rear Mounted, Semi-independent | |
| Rated Rev. (r/min) | 540/1000 | ||
| Spline Size | I35 Rectangle Spline with 6 Teeth | ||
