P&H7055
Video,Tel,Door-to-Door Service
50m
45t
CE
Used
1 Year
Kobelcoo
Shipping
Japan
Product Description

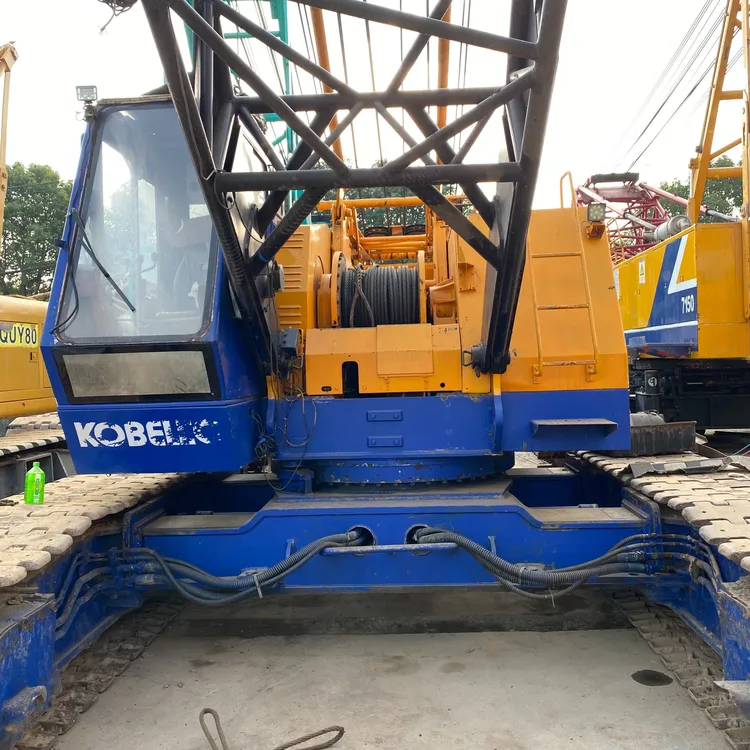

Seconghand Crawler Crane P&H7055 KOBELCO
YEAR:2005--2019
MODEL: 7055 ,55T
capacity: 50T
made in Japan
BOOM: 25--36m
Main Specifications
| Crane Boom | Max. Lifting Capacity | 55 t × 3.7 m |
| Max.Length | 51.8 m | |
| Fixed Jib | Max. Lifting Capacity | 7 t × 16.0 m |
| Max.combination | 42.7 m + 12.2 m, 39.6 m + 18.3 m | |
| Tower Jib | Max. Lifting Capacity | 12 t × 10. 0 m |
| Max.Combination | 42.4 m + 29.0 m | |
| Tower Angle | 60 - 90 degree | |
| Main &Aux.Winch | Max. Line Speed | 120 m/min (1st layer) |
| Rated Line Pull (single line) | 68.6 kN {7.0 tf} | |
| Wire Rope Length | 22 mm | |
| Wire Rope Diameter | Crane Tower | 175 m (Main) 125 m (Aux.) 220 m (Main) 120 m (Aux.) |
| Brake type | Spring set hydraulically released | |
| Working Speed | Swing Speed | 4.0 min-1 {rpm} |
| Travel Speed | 2.2 / 1.5 km/h | |
| Power Plant | Model | HINO J08E-TM |
| Engine Output | 159 kW / 2,000 min-1 {rpm} | |
| Fule Tank Capacity | 400 liters | |
| Hydaulic System | Main Pumps | 3 variable displacement |
| Max.Pressure | 31.9 MPa {325 kgf/cm2} | |
| Hydiaulic Tank Capacity | 440 liters | |
| Weight | Operating Weight* | Approx. 56.7 t |
| Ground Pressure | 72.3 kPa {0.74 kgf/cm2} | |
| Counterwight | 15.2 t | |
| Transport Weight | 40.2 t |
Units are SI units. { } indicates conventional units.
* Including upper and lower machine, 15.2 ton counterweight, basic boom, hook, and other accessories.
** Base machine with boom base, crawlers, gantry, lower spreader, upper spreader, wire ropes for main and boom hoist winches.
