SRC1200
1 Year
1 Year
CE
New
>40m
>16t
3
Five-Arm
Straight Arm
15.2t
120t
26km/H
67.4m
18.1m
49m
3658kN.M
Maxizm
Optional
China

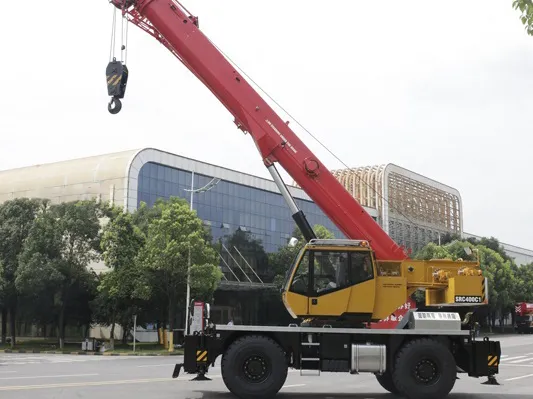

Product Description
TOUGH PERFORMANCE
· The cranes are designed for tough terrain or extreme environment conditions, like dessert or freezing area.
COMPACT LAYOUT
· Three hinges of luffing mechanism are located for a more compact body size, optimized for on-road transport and off-road travelling.
STRONG CARRIER FRAME
· Inverted trapezoidal variable cross section frame is 5% less in weight and 10% stronger in rigidity.
PRECISE CONTROL
· Electrical proportional joystick: quick reaction in 5ms, providing smooth operation of start and stop Joystick stroke can be adjusted from 0%-100% such that the loading can be as precise as mm level. Smart flow distribution system, which is initial of flow shunt and confluence method and improved inching motions.
Model | SRC1200 |
Full Counterweight | 15.2T |
Max Lifting Capacity | 120T |
Max Boom Length | 49m |
Max Jib Length | 18.1m |
Max Lifting Height | 67.4m |
Max Lifting Moment | 3658kN.m |
Engine Model (Emission Standard) | Stage III |
Max Gradeability | 70% |
Max Traveling Speed | 26km/h |
Wheel Formula | 4 × 4 |
