F2000/F3000
Automatic
Diesel
21-30t
Euro 2
6×4
＞8L
≤5
251-350hp
ISO
Tubeless
Bidirection Dumping Style
New
Weichai Engine
12r22.5,10+1PC
ABS
2200rpm
3775+1400mm
Z F Technology Left-Hand Drive(LHD)
SHACMAN
as You Needed
8375× 2550× 3450mm
China
Product Description

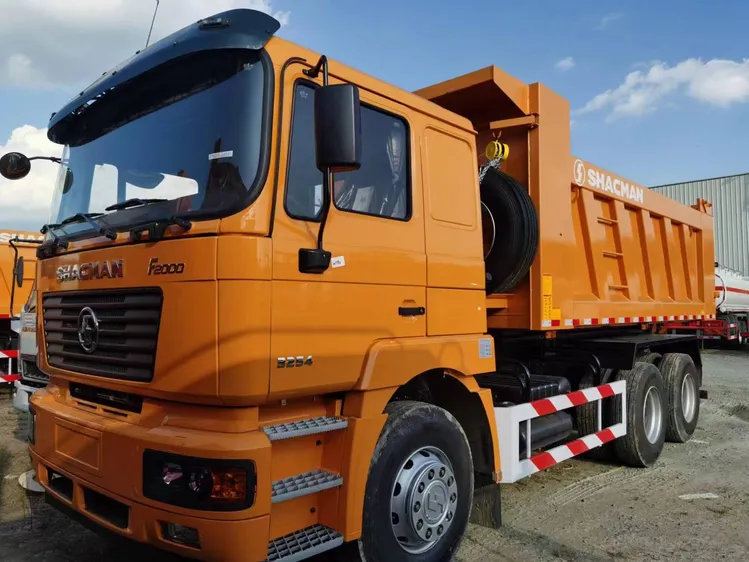

SHACMAN F2000 6×4 DUMP TRUCK
MAXIZM Construction Machinery is a one-stop machinery supplier, leading in China for 15 years. Including engineering, mining, warehousing, logistics, and various parts. Cooperate directly with the brand, and the official warranty for all machines is one year. We have shipped machines to over 148 countries in the past 15 years.
Our advantages are as following:
1. Professionally export construction machinery and spare parts for more than 15 years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private, rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.
We are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule.
Please contact me if you have any questions. Looking forward to fruitful cooperation with sincerity and respect.
| Cab | MAN F2000 Cab Single bed Air conditioner |
| Dimension(Lx W xH)(mm) | 8375×2550×3450mm |
| Total mass(kg) | 25000kg |
| Kerb mass(kg) | 11200kg |
| Rated mass(kg) | 13670kg |
| Approach / departure angel | 16/66 |
| Front/rear suspension(mm) | 1525/1600 |
| Max. gradeability (%) | 28 |
| Engine brand | Weichai Engine |
| Engine model | WP10.290E32,290hp |
| Rated output power | 213kw |
| Torque(N.m r. p. m) | 1160N.m/1200-1600rpm |
| Rated speed(rpm) | 2200rpm |
| Emission Standard | E-II |
| Displacement(L) | 9.726L |
| Fuel type | Diesel |
| Driving type | 6×4 |
| Axle number | 3 |
| Wheel base(mm) | 3775+1400mm |
| Clutch | φ430 diaphragm spring |
| Gearbox | FAST 9JS135,9 Forward&1 Reverse,Manual |
| Front axle | 7.5T MAN 7500kg |
| Rear axle | 16T STR 2×16000kg |
| Ratio | 5.73 |
| Steering | Z F technology Left-hand drive(LHD) |
| Type | 12R22.5,10+1pc |
| Tank capacity(L) | 380L |
| Brake system | ABS |
| Max. speed (km/h) | 75km/h |
| Color | optional |
| Cargo box size(mm) | 5200×2300×1350mm bottom8mm,side4mm |
| Lifting style | Middle lifting |
