KB3.0
Spare Parts
9.22m
3t
CE
New
One Year
2050kg
8.3mx0.14t
8.92m
3tnv70
10.3kw
Hydraulic Motor Driven
KEBU
Nude Packing
2890x800x1700mm
China
8429401900
Product Description

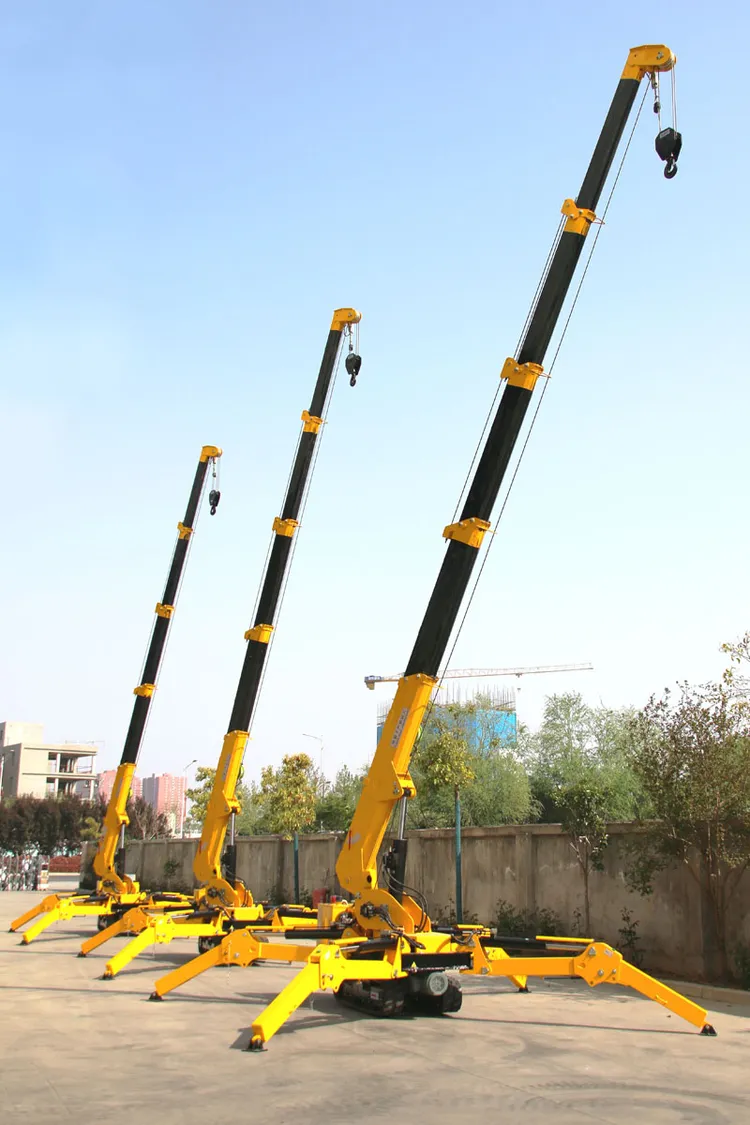

KB3.0 micro crawler crane, widely used in electrical substation equipment maintenance and installation, mechanical chemical workshop equipment maintenance and installation, glass curtain wall and other small space occasions. At present, it has been widely selected by state grid and China southern power grid, and has been used in Shanghai world expo, general motors, lanzhou petrochemical, tianxin petrochemical, wuhan tianling and Beijing netcom building construction project, etc. The products have been exported to the United States, Australia, Canada, the United Kingdom, Brazil, Vietnam, uae and other countries.
Model | KB3.0 | |
Specification | 2.95Txl.3m | |
Maximum Working Radius | 8.3mx0.14T | |
Maximum Ground Lifting Height | 9.2m | |
Maximum Underground Lifting Height | - | |
Winch Device | Hook Speed | 6.5m/min (4 fall) |
Rope Type | e7.7mm x45m | |
Telescopic System | Boom Type | Full automatic 5 section |
Boom Length | 2.56m-8.92 m | |
Up and Downs | Boom Angle/Time | 0° -75° /14sec |
Slew System | Slew Angle/Time | 0° -360° (continuous) /40sec |
Outrigger | Maximum Extended Dimensions | 3900mm x 3750mm |
Traction system | Walking Way | Hydraulic motor driven |
Walking Speed | 0-2.9km/h | |
Ground Length x Width x2 | 1010mmx200mmx2 | |
Grade Ability | 20° | |
Ground Pressure | 51Kpa | |
