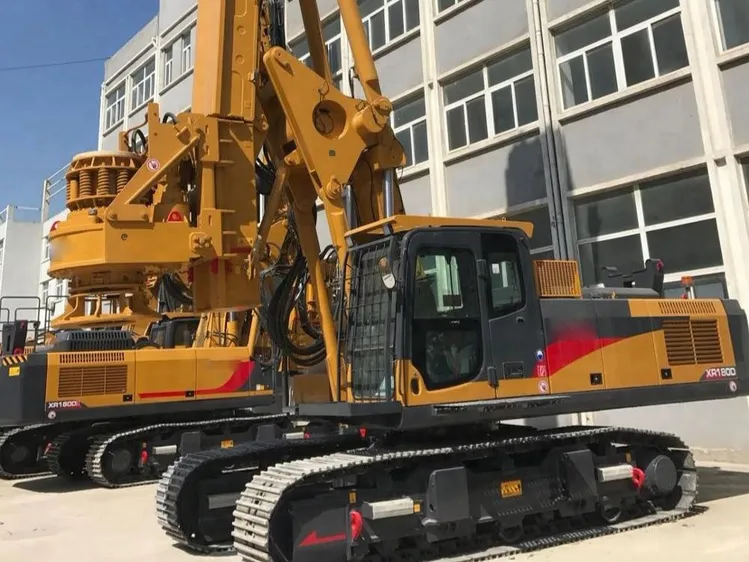

132m Hydraulic Crawler Rotary Drilling Rig XR550DD
1. It adopts the H-style dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2. The main hydraulic system adopts the negative flow control, which can increase the system efficiency and make the most of the engine power. It adopt three-in-one cooling system which is tightly packed and has a high-efficiency in cooling.
3. It adopts the imported Cummins turbo-supercharged engine with three gears. It complies with Euro III emission standard, in addition, it has strong power, which is sufficient to satisfy the construction on the plateeue. It noise is up to the nation standard.
4. It adopts the luffing mechanism of large triangle form to ensure the stability of construction of big holes and deep piles in hard formation.
5. It adopts the single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost.
6. Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.
Description | Unit | XR550D | |
Max. drilling diameter | mm | 3500 | |
Max. drilling depth | m | 132 | |
Allowable luffing scope (from center of drill rod to slewing center) | mm | 4950~5250 | |
Drilling rig dimension in working condition (L × W × H) | mm | 12790×6000×33324 | |
Drilling rig dimension in transport condition (L × W × H) | mm | 12790×6000×33324 | |
Weight of overall unit (standard configuration, excluding drilling tool) | t | 180 | |
Engine | Model | CUMMINS QSX15-C600 | |
Rated power/speed | kW | 447/(2100r/min) | |
Max. working pressure of hydraulic system | Mpa | 35 | |
Rotary drive | Max. torque | kN •m | 528 |
Rotational speed | r/min | 6~20 | |
Crowd cylinder | Max. Pushing force | kN | 300 |
Max. Pulling force | kN | 400 | |
Max.stroke | mm | 6000 | |
Crowd winch | Max. Pushing force | kN | 400 |
Max. Pulling force | kN | 520 | |
Max.stroke | mm | 16000 | |
Main winch | Max.pulling force | kN | 600 |
Max. single-rope speed | m/min | 60 | |
Diameter of the steel wire rope | mm | 44 | |
Rotary table slewing angle | ° | 360 | |
Crawler | Width of crawler plate | mm | 1000 |
External width of crawler (min.-max.) | mm | 4550~6000 | |
Center distance between two longitudinal wheels of crawler | mm | 6870 | |
Average ground pressure | kPa | 130 | |
