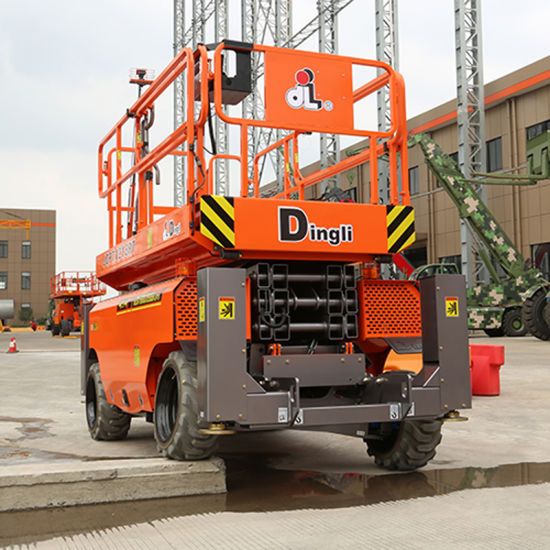

JCPT2223DC
Spare Parts
One Year Warranty
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Scissor Lift
Middle-Level
Moving
Hydraulic
Moving
Explosion-Proof, Insulating
GS, CE, RoHS, ISO 9001
22m
20m
0.40m
750kg
36*14-20
13400kg
3.98m*1.83m
36.5kw
48V/630ah
DINGLI
Nude Packing
4.95*2.46*3.86m
China
8428109000
Product Description
Product Features:
Overall Width:2.46m
S.W.L:750kg
Max. Working Height:22.00m
Important features
Large working platform, higher operating efficiency
Four wheel drive, climbing ability of the maximum up to 30%,More mobile
Self-leveling hydraulic outriggers
Vertical lift maintenance
S.W.L:750kg
Max. Working Height:22.00m
Important features
Large working platform, higher operating efficiency
Four wheel drive, climbing ability of the maximum up to 30%,More mobile
Self-leveling hydraulic outriggers
Vertical lift maintenance
Specification:

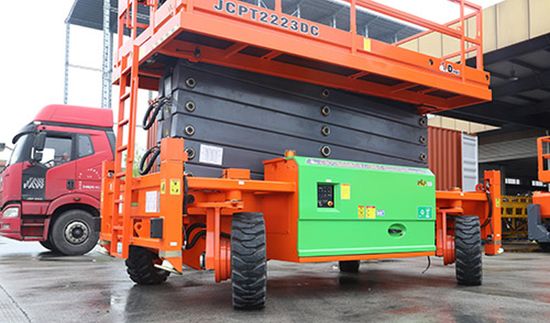

Model | JCPT2223DC |
Max. Working Height | 22.00m |
Max. Platform Height | 20.00m |
Overall Length | 4.95m |
Overall Width | 2.46m |
Overall Height(Rails up) | 3.86m |
Overall Height(Rails down) | 3.00m |
Platform Size(Length/Width) | 4.59 x 2.25m |
Platform Extension Size | 2.70m |
Ground Clearance | 0.40m |
Wheel Base | 3.30m |
S.W.L | 750kg |
S.W.L On Extension | 750kg |
Maximum Occupants | 4 |
Turning Radius(Inside/Outside) | 1.25m/3.40m |
Travel Speed(Stowed) | 5.00km/h |
Travel Speed(Raised) | 0.40km/h |
Up/Down Speed | 90/100sec |
Gradeability | 30% |
Maximum Working Slope | 2°/3° |
Tyre | 36×14-20 |
