YCR60
One Year
One Year
ISO 9001:2000
New
AC Motor
250-300mm
>200m
Drag Bit
Rotary
yucahi
Nude Package
9950*2600*3480mm
China
8429521200
Product Description

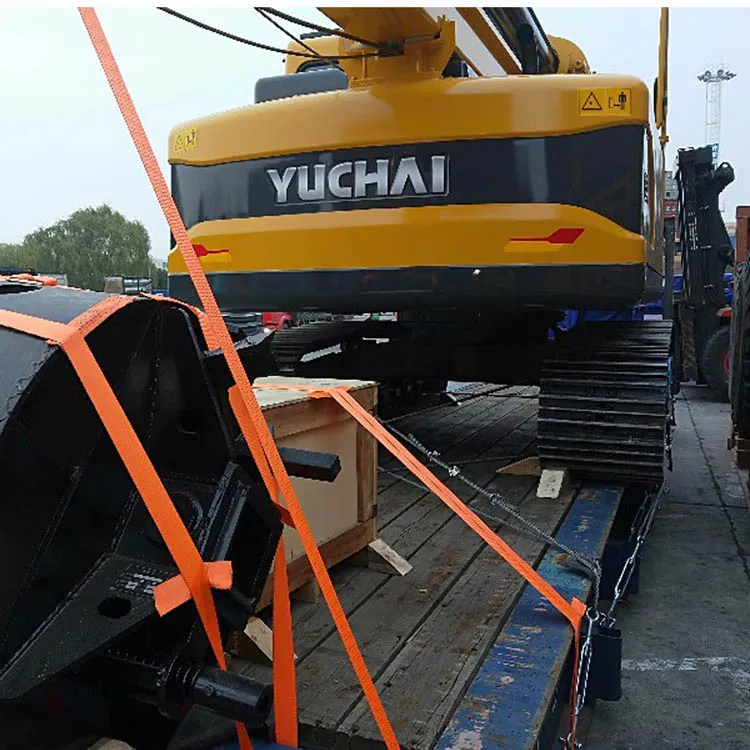

Yuchai Small Rotary Drilling Rig with Diesel Engine Ycr60
Product Features:
Small rotary drilling rig integrates all the advanced technologies and construction methods accumulated by Yuchai piling engineering Co., Ltd., realizes the innovative application and upgrading of many technologies, presents various technical highlights, and reaches the third stage emission standard of national regulations. The machine is specially designed for rural infrastructure construction, dilapidated house reconstruction project, district and county real estate project, municipal construction, railway reconstruction construction, power transmission tower construction, mobile base station construction and other working conditions. It is equipped with imported power hydraulic system assembly, with reliable and stable performance, high efficiency and fuel saving construction, exquisite and safe structure, convenient and flexible site transfer, good adaptability to strata and heavy The pile quality is excellent.
Specification:
item) | (Parameters) | |||
(Chasis) | Engine type | QSF3.8-115 | ||
/ Power/ revolution | 86kW/2200rpm | |||
()Deployment speed (margin) | 2600mm | |||
Track shoe width | 600mm | |||
Traction | 104KN | |||
(Power head) | The maximum out torque | 60kN·m | ||
Power head revolution | 0~35rpm | |||
The maximum pressure increased | 55kN | |||
The maximum pullout force | 80kN | |||
Pressurizing oil cylinder stroke | 1500mm | |||
(Winch) | (Main winch) | |||
Lifting force of the first layer | 70kN | |||
The maximum lifting speed | 59m/min | |||
Steel wire diameter | ∅18mm | |||
Auxiliary winch | ||||
Lifting force of the first layer | 15kN | |||
The maximum lifting speed | 50m/min | |||
Steel wire diameter | ∅12mm | |||
(Mast) | Front inclination angle of mast | 5° | ||
Left and right inclinations of mast | ±4° | |||
(Hydraulic pump) | The maximum working pressure of system | 32MPa | ||
(Hole depth and diameter) | The maximum drilling diameter | 1.2m | ||
The maximum drilling depth | 28m/22m(4/3) | |||
Weight at working state | 20 t | |||
() | 15.7t | |||
() | 19t | |||
