1000*800*150mm
Single Deck
Plastic
1000mm*800mm
6t
4-Way
Single Face
Anti-Static
1.5t
6t
1t
Palets De Plastico
Printing Free
No Mark
in Bulk
1000*800*150mm
China
392390
Product Description

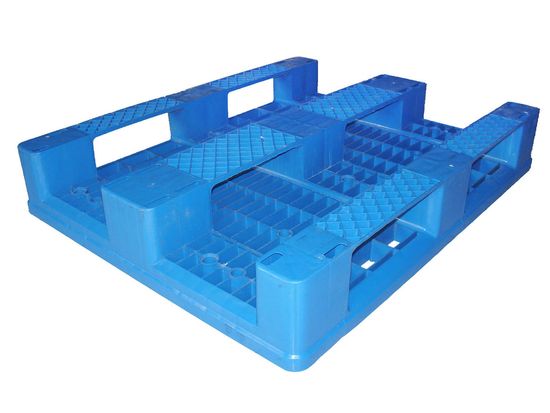

3 runners plastic pallet with open deck for racking
Tarima de plastico 1000*800
Description
Size 1000*800*150mm
Entry Type4 Way
Style Single and closed deck
MaterialHDPE / PP
ClourBlue, Black, Grey and other clour requested
AntislipYes, anti-slip rubber inserted
Available for rackingYes
Labeling optionsLogos and numbering on request, depending on volume
Load capacity
Dynamic Load 1 T
Static Load 4 T
In racking system 0.3T
| Specification(mm) | Material | Dynamic load(T) | Static load(T) | Shelves carrying(T) |
| 1000*1000*150 | HDPE | 1 | 4 | 0.3 |
| 1100*1100*120 | HDPE | 0.7 | 3 | / |
| 1100*1100*150 | HDPE | 1 | 4 | 0.3 |
| 1200*800*150 | HDPE | 1 | 4 | 0.3 |
| 1200*1000*120 | HDPE | 0.7 | 3 | / |
| 1200*1000*150 | HDPE | 1 | 4 | 0.3 |
| Add steel tubes | ||||
| 1200*800*150 | HDPE | 1.5 | 6 | 1 |
| 1200*1000*150 | HDPE | 1.5 | 6 | 1 |
| 1200*1200*150 | HDPE | 1.5 | 6 | 1 |
| 1300*1100*150 | HDPE | 1.5 | 6 | 1 |
| 1300*1300*150 | HDPE | 1.5 | 6 | 1 |
| 1400*1200*150 | HDPE | 1.5 | 6 | 1 |
| 1400*1400*150 | HDPE | 1.5 | 6 | 1 |
| 1500*1500*150 | HDPE | 1.5 | 6 | 1 |
Quality Assurance
Qingdao Huading Imp. & Exp. Co., Ltd. has built a complete and mature production and inspection process, from the raw materials procurement, the finished products inspection to final product quality tracking, comprehensive monitoring product quality. With chemical analysis department, the physical inspection department, service department, we treat products quality as the lifeblood of enterprise.
Now we briefly list work procedure as follows,
Before production process
* Raw material selection
1) We purchase virgin material only from PetroChina,Sinopec and similar level suppliers,so raw material quality is guaranteed from source.We also have fixed and reliable source for recycled material.
2) Raw material would be inspected strictly before entering factory by our own laboratory.We have all sets of test equipment and technologist to support it.
After production process
* Five strict quality testing procedures: appearance view;specification measurement;weight measurement;load capacity test;impact resistance test and so on.
We list concrete content of each test procedures,
1) Appearance view:surface shall be level and smooth; no cracking and deformation;of unified hue; no clear color deviation for same batch of cargo; non-slip mat should be assembled; reinforced steel tubes shine ans amooth.
2) Specification measurement: +3/-6 mm allowance
3) Weight measurement: ± 0.5KG
4) Load capacity test: including static load test,dynamic load test and rack load test,at leat 48 hours.
5) Impact resistance test:Angle dropped down at least 3 times from shelf
We currently provide products to users performing the following technical standarrds:
ISO - International Standardization Organization
GB - Chinese National Stardard,
JIS - Japanese Industrial Standard,
ASTM - American society of testing Material standard,
DIN - Germany Industrial standard
Others: We would like to receive customer's specific standard and manufacture on request.
