NHA-D15T-12M
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Lifting Platform, Small Crane
Electric Hoist
Wire Rope
2~8m/min
20m
2
ISO9001:2000
New
Orange
Maximum 100t
NANTE
in Nude
4CBM
China
Product Description
Detailed Product Description

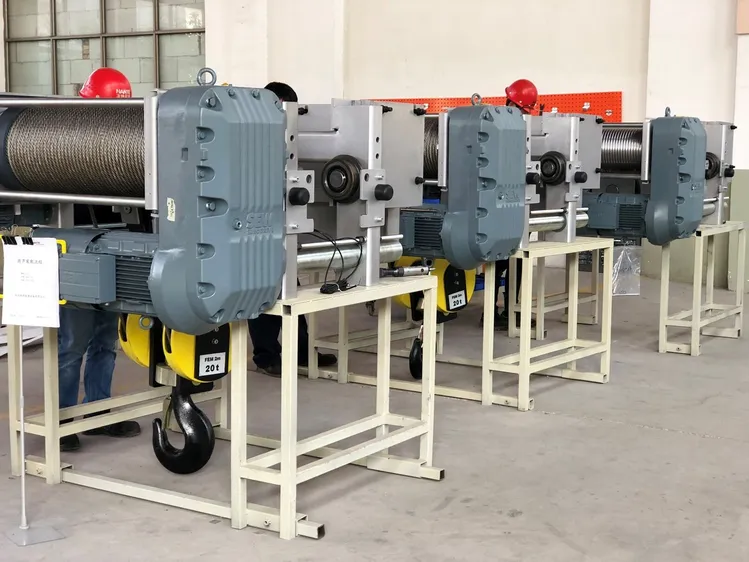

Low Headroom Electric Wire Rope Hoist is the newly developed type which is specific to the box type beam but not the traditional I beam. You can benefit from shock absorption and noise reduction. What's more, the distance for the gauge can be adjusted. This products, by its newly unique design and great originality, have gained a good reputation among users in China and abroad.
1. Reducer
Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.
2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.
3.Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.
4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.
5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control
6.Gear
By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.
7.Chain
Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.
8.Hook
Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.
Specitication
Application
Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40 °C, relative humidity under 85%.
Design Feature
(1) imported motor can be chosen for high working level up to M5, low noise
(2) applies to factories, freight yards, terminals, power plants, construction sites and other places
(3) Particularly suitable for the plant with restrict height, maximize the effective lifting height
Company information
Introduction
After 20 years rapid development, NANTE and its parents company ZHONGJIAN Group has grown into a leading integrated solution provider for crane components in China. Dedicated to the research and development of new lifting and handling technologies, we adopt innovative ideas and design in developing new products and services. Backed up by a wealth of industial experience on lifting industy, we can provide to customer wide range of lifing equipment and components with scientific design, good safety, high performance, efficient operation and low maintenance cost. We are committed to help our clients to reduce investment cost, improve production efficiency, and economize energy consumption.
Our Products
In order to offer our clients with a complete set of competitive lifting solution. We deliver a wide range of products incude:
1.Lifting Equipments for Construction: Beam Launcher, Gantry Crane, Segment Lifter, Form traveler, and Bailey Bridge etc.
2. Lifting Equipments for Industry: Overhead Crane, Gantry Crane, Jib Crane, Light Crane system.
3. Crane Components: Electric Hoist & Trolley, End Carriage, Conductor Rail, Festoon System, Steel Rail, Flat Cable, Pendent Control, Geared Motor, Remote Control etc.
Our Service
We can provide to customer an integrated solution which includes project consultant, design, manufacturing, transportatons, installation, maintenance and technical support. Our one-step services can not only save our customers' time but also minimize their cost. In compliance with our service oncept "Customer First", we provide the following support services to ensure smooth running of customer's lifting and handling,Presale Technical Support, After-sale Maintenance, Spare Parts Support and Customized Solutions.
Quality Control
Quality concept lies deeply in our blood. We are awarded Class-A (Top) license of specialized equipment manufacturing and repairing officially by China's State Administration of Quality Supervision, Inspection and Quarantine.
All of our deliverables have been certified against ISO9001-2008 quality management system. Streamlined quality management system ensures overall control over materail purchase, production, assembly, transportation, and installation.We want to make sure that we always deliver high quality products to our customers.
We are equipped with testing equipments and facilities required for quality control. Our quality control team includes qualified NDT staffs and welding engineers. Furthermore,we hold regularly quality control training sessions and activities to improve working performance and product quality.
R&D Strength
All staffs in our R&D Center are engineers with many years with experiences in lifting equipment design. They input great efforts in technology transformation, computerized designing and integration. We can not only design the product with the national regulated safety technique specifications and design standards, but also BS, DIN, and other international standard.
To name some strength of our R&D:
1.We are the Beam launcher National standards drafting company.
2.We design and build the China highest truss gantry crane.
3.We design and build China longest beam launcher.
Contact us
Tel: +86 571 88913677
Fax: +86 571 56389040
Add: 3/F Rencai Building No.6, Xiacheng District, Hangzhou, China
Low Headroom Electric Wire Rope Hoist is the newly developed type which is specific to the box type beam but not the traditional I beam. You can benefit from shock absorption and noise reduction. What's more, the distance for the gauge can be adjusted. This products, by its newly unique design and great originality, have gained a good reputation among users in China and abroad.
1. Reducer
Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.
2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.
3.Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.
4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.
5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control
6.Gear
By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.
7.Chain
Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.
8.Hook
Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.
Specitication
| Load Capacity (kg) | FEM | ISO | Lifting height (m) | Lifting Speed (m/min) | Traveling Speed (m/min) | Size H (mm) | Size C (mm) |
| 2000 | 2M | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 230 | 350 |
| 3200 | 2M | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 230 | 350 |
| 5000 | 2M | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 230 | 350 |
| 5000 | 2M | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 230 | 350 |
| 8000 | 3M | M6 | 6/9/12/18 | 0.8/5.0 | 5~20 | 540 | 360 |
| 10000 | 1AM | M4 | 6/9/12/18 | 1.0/6.3 | 5~20 | 540 | 360 |
| 10000 | 2M | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 540 | 360 |
| 10000 | 3M | M6 | 6/9/12/18 | 0.66/4.0 | 5~20 | 540 | 360 |
| 12500 | 1AM | M4 | 6/9/12/18 | 0.8/0.5 | 5~20 | 540 | 420 |
| 12500 | 1AM | M4 | 6/9/12/18 | 1.0/6.3 | 5~20 | 540 | 420 |
| 12500 | 2M | M5 | 6/9/12/18 | 0.6/4.0 | 5~20 | 540 | 420 |
| 16000 | 2M | M5 | 6/9/12/18 | 0.66/4.0 | 5~20 | 640 | 480 |
| 20000 | 1AM | M4 | 6/9/12/18 | 0.66/4.0 | 5~20 | 640 | 480 |
| 20000 | 2M | M5 | 6/9/12/17 | 0.53/3.4 | 5~20 | 640 | 480 |
| 20000 | 3M | M6 | 6/9/12/18 | 1.0/4.2 | 5~20 | 790 | 620 |
| 25000 | 1AM | M4 | 6/9/12/18 | 0.53/3.4 | 5~20 | 790 | 620 |
| 25000 | 2M | M5 | 6/9/12/18 | 0.8/3.3 | 5~20 | 790 | 620 |
| 25000 | 2M | M5 | 6/9/12/18 | 1.0/4.2 | 5~20 | 790 | 620 |
| 32000 | 2M | M5 | 6/9/12/18 | 0.8/3.3 | 5~20 | 790 | 620 |
| 32000 | 2M | M5 | 6/9/12/18 | 0~4.9 | 5~20 | 895 | 980 |
| 40000 | 1AM | M4 | 6/9/12/18 | 0~4.9 | 5~20 | 895 | 980 |
| 50000 | 2M | M5 | 6/9/12/18 | 0~3.2 | 5~20 | 895 | 980 |
| 50000 | 1AM | M4 | 6/9/12/18 | 0~4.0 | 5~20 | 895 | 980 |
| 63000 | 1AM | M4 | 6/9/12/18 | 0~3.2 | 5~20 | 975 | 1100 |
| 63000 | 2M | M5 | 6/9/12/18 | 0~2.4 | 5~20 | 975 | 1100 |
| 80000 | 1BM | M3 | 6/9/12/18 | 0~3.8 | 5~20 | 1025 | 1525 |
| 100000 | 1BM | M3 | 6/9/12/18 | 0~2.1 | 5~20 | 1025 | 1525 |
Application
Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40 °C, relative humidity under 85%.
Design Feature
(1) imported motor can be chosen for high working level up to M5, low noise
(2) applies to factories, freight yards, terminals, power plants, construction sites and other places
(3) Particularly suitable for the plant with restrict height, maximize the effective lifting height
