tb10/tb15/tb20
Not Adjustable
Stacker
AC Motor
1T - 5T
Electric
500mm
3000~5000mm
New
Red
Us Curtis
AC Brushless Motor
Inclusive
PU Tires
1150mm
Yes
Yes
NOELIFT
Packed with Bubble Film
2045x1270x2050mm
China
84271020
Product Description
Product Description

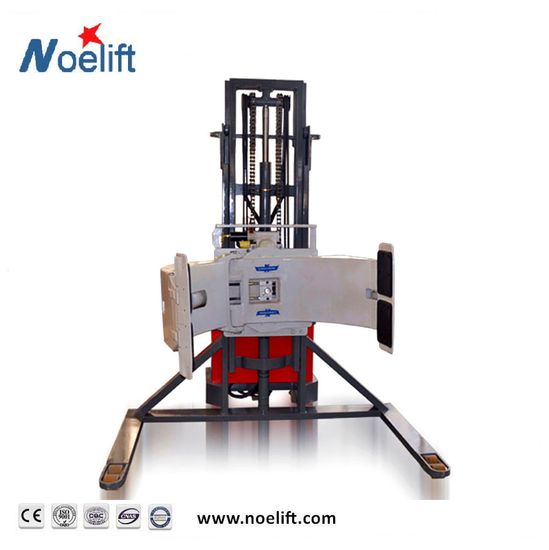

1.5-2.0ton full electric pallet stacker with paper roll clamp attachment
TB Series steering wheel pallet stacker,
rated load capacity: 1500kg - 2000kg
lift height: 1600-4500mm, used for single face pallet;
Stand on electric pallet stacker with Arm rest + pedal
Techenical details
| 1.0t/1.5t/2.0t electric pallet stacker | |||||||
| 1 | Model | TB10 | TB15 | TB20 | |||
| 2 | Power Type | BATTERY | |||||
| 3 | Rated Capacity | kg | 1000 | 1500 | 2000 | ||
| 4 | Load Centre | mm | 500 | ||||
| 5 | * Lift Height | mm | 3000 | 3000 | 3000 | ||
| 6 | * Fork Size (L×W×T) | mm | 1150x190x75 | 1150X190X75 | 1150X190X75 | ||
| 7 | Overall length (Without fork) | mm | 2045 | 2045 | 2045 | ||
| 8 | Overall Width | mm | 850 | 850 | 850 | ||
| 9 | Outer distance between forkd | mm | 680 | 680 | 680 | ||
| 10 | Aisle width for pallet 1000x1200mm crossway | mm | 553 | 2553 | 2553 | ||
| 11 | Turning radius | mm | 1725 | 1725 | 1725 | ||
| 12 | Wheel | PU | PU | PU | |||
| Lift height :1.6-6.0M | |||||||
| Additional : bale clamp / paper roll clamp | |||||||
| Customize disegn by your requirements. | |||||||
optional: arm rest & wide leg & foam clamp attachments
